Specifications:
Injection Molded ABS Plastic
Clear ABS Windows
Full Interior
Dashboard with Steering Wheel
Opening Hood and Doors
Magnets Keep Hood/Doors Closed
Opening Tailgate
Removable Top for Open Air Feel
LED Compatible
Wheelbase: 11.3in / 287.0mm
Length: 19.1in / 484.2mm
Width: 7.73in / 196.4mm
Height: 5.57in / 141.5mm
Weight: 35.2oz / 997.0g
Shown installed on the RC4WD Marlin Crawler Trail Finder 2 RTR Chassis for example (Not Included)
Shown installed on RC4WD Trail Finder 2 Truck Kit (Z-K0054) for example (Not Included)
Shown installed on RC4WD Trail Finder 2 Truck Kit (Z-K0054) for example (Not Included)
Shown installed on RC4WD Trail Finder 2 Truck Kit (Z-K0054) with RC4WD Raceline Avenger 1.7" Wheels (Z-W0234) for example (Not Included)
Shown installed on RC4WD Trail Finder 2 Truck Kit (Z-K0054) with TRunner Classic 1.55'' Beadlock Wheels (Z-W0121) and RC4WD Goodyear Wrangler MT/R 1.55" Scale Tires (Z-T0159) for example (Not Included)
What's Included:

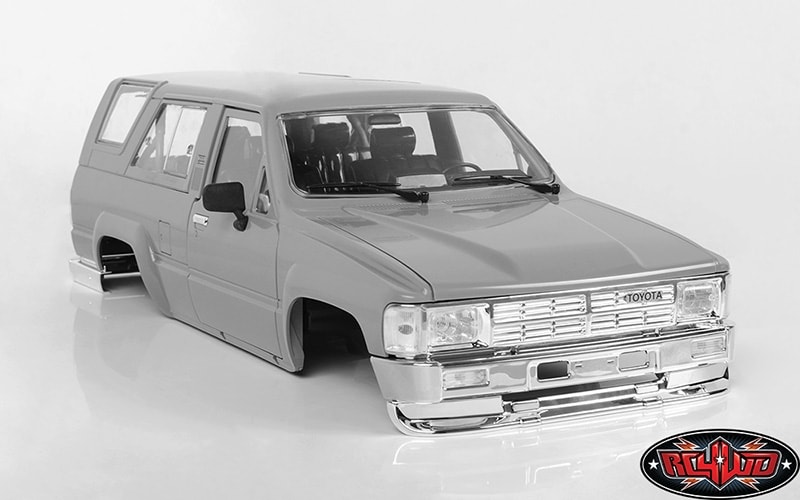

1x RC4WD 1985 Toyota 4Runner Hard Body Complete Set
1x Decal Sheet for Body and Dash
1x Instruction Manual
Required to Complete:
Modeling / Craft Knife
Long Nose Pliers
Side Cutters
Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
Hex Drivers (1.5mm, 2mm)
Cross Phillips Screwdriver (Small)
Replacement Parts:
RC4WD 1985 Toyota 4Runner Clear Parts (A) (Z-B0194)
RC4WD 1985 Toyota 4Runner Clear Parts (B) (Z-B0195)
RC4WD 1985 Toyota 4Runner Main Body (Z-B0182)
RC4WD 1985 Toyota 4Runner Topper (Z-B0183)
RC4WD 1985 Toyota 4Runner Hood (Z-B0184)
RC4WD 1985 Toyota 4Runner Doors and Door Panels (Z-B0190)
RC4WD 1985 Toyota 4Runner Tailgate Assembly/ Front Door Bulkhead (Z-B0187)
RC4WD 1985 Toyota 4Runner Dashboard (Z-B0191)
RC4WD 1985 Toyota 4Runner Seats (A) (Z-B0188)
RC4WD 1985 Toyota 4Runner Seats (B) (Z-B0189)
RC4WD 1985 Toyota 4Runner Interior Tray (Z-B0185)
RC4WD 1985 Toyota 4Runner Roll Bar (Z-B0192)
RC4WD 1985 Toyota 4Runner Chrome Front Bumper (Z-B0186)
RC4WD 1985 Toyota 4Runner Chrome Parts (Z-B0193)
RC4WD Toyota 4Runner Body Mount Posts for TF2 Chassis (Z-B0205)
RC4WD 1985 Toyota 4Runner Rubber Mirror (Z-B0196)
RC4WD 1985 Toyota 4Runner Emblem Set (Z-S1926)
RC4WD 1985 Toyota 4Runner Metal Brackets (Z-S1927)
Replacement Hardware:
M2 x 5mm Socket Head Cap Self Tapping Screws (Z-S1582)
M2 x 6mm Socket Head Cap Self Tapping Screws (Z-S1584)
M1.6x 10mm Button Head Self Tapping Screws
M1.6x 12mm Button Head Self Tapping Screws
M3 x 4mm Button Head Cap Self Tapping Screws
M3 x 6mm Button Head Cap Self Tapping Screws
M3 x 8mm Button Head Cap Self Tapping Screws
M3 x 6mm Steel Button Head Cap Screws (Z-S0651)
M3 x 8mm Steel Button Head Cap Screws (Z-S0652)
M3 x 12mm Steel Button Head Cap Screws (Z-S0654)
M3 x 14mm Steel Button Head Cap Screws (Z-S0655)
M2 X 4mm Steel Socket Head Cap Screw (Z-S0922)
M3 x 8mm Steel Flat Head Socket Cap Screw (Z-S0649)
M3 x 10mm Steel Flat Head Socket Cap Screw (Z-S0860)
Silver Steel Body Clips 1.21mm (Z-B0016)
Instruction Manuals:
Click here to download.
Notes:
Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Fits RC4WD Trail Finder 2 Truck Kit (Z-K0054)
Fits Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Limited Edition) (Z-RTR0035)
Be sure to fully assemble the body, some perceived issues may sort themselves out when assembled according to instructions. This body set is recommended for experienced hobbyists.
