Specifications:
CNC Machined
Billet Aluminum
Fits Standard 12mm Hex
Wheel Size: 1.9"
OD: 2.14in / 54.0mm
Width: 0.83in / 21.0mm
Center Hole OD: 0.20in / 5.2mm
Positive Offset: 0.24in / 6.15mm
Each Weight: 2.02oz / 57.3g

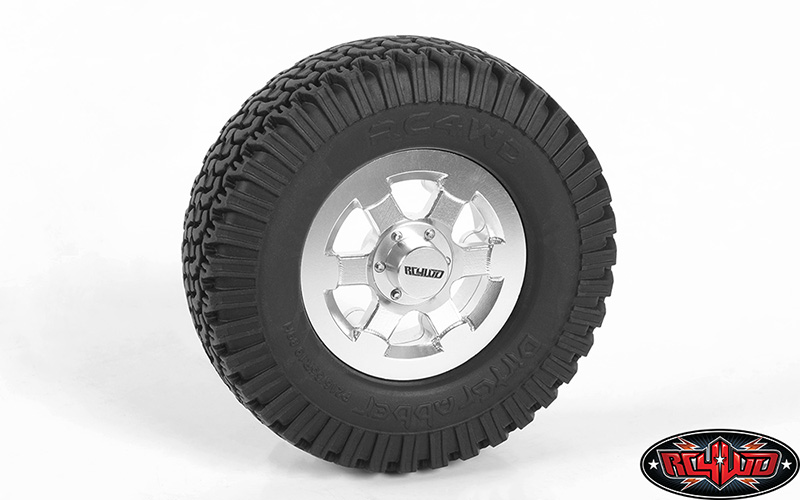

Shown installed with Dirt Grabber 1.9" All Terrain Tires (Z-T0005) for example (Not Included)



Shown installed on RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030) with RC4WD 2001 Toyota Tacoma 4 Door Body for TF2 LWB 313MM/12.3" (Z-B0169) (Shown painted White) and Dirt Grabber 1.9" All Terrain Tires (Z-T0005) for example (Not Included)

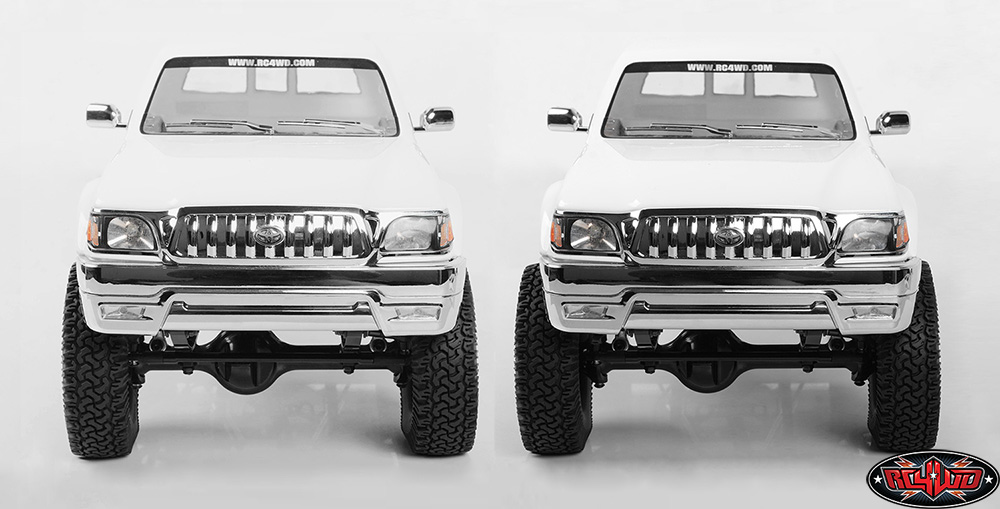

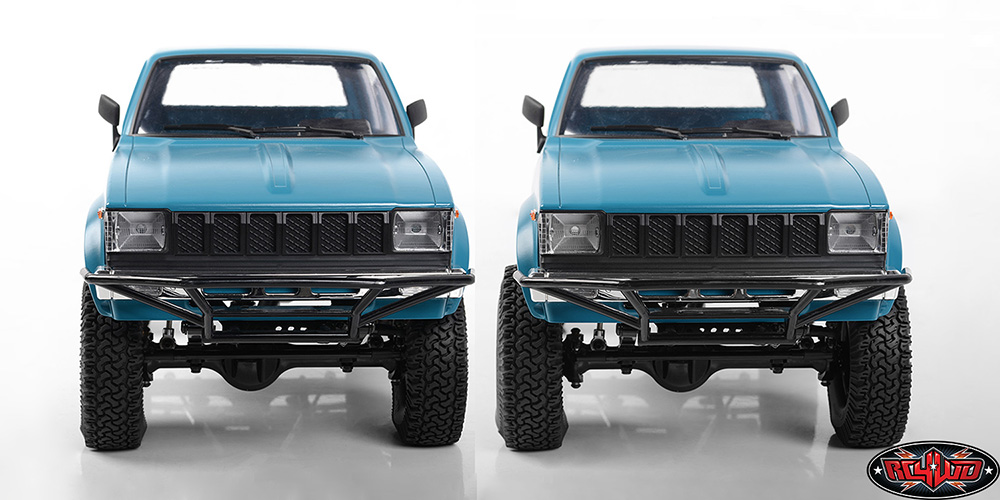

Shown below is the difference in the offset between our 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Z-W0129) and these new wheels which are both installed on RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030) and RC4WD 2001 Toyota Tacoma 4 Door Body for TF2 LWB 313MM/12.3" (Z-B0169) for reference (Not Included)



What's Included:

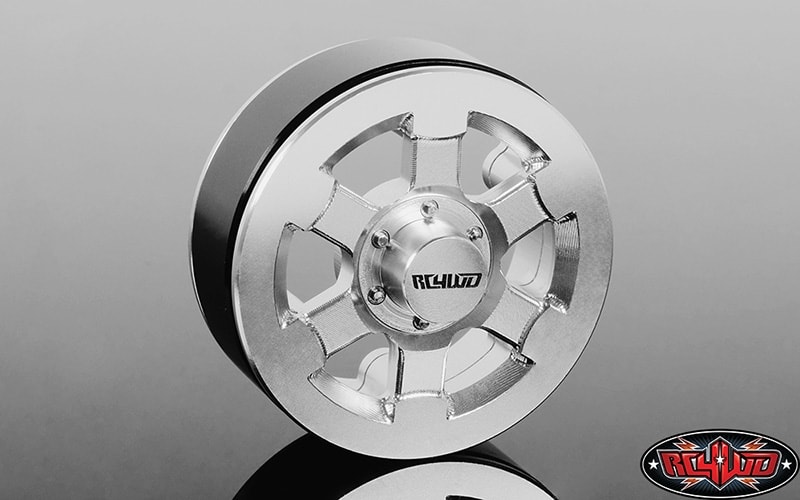

4x RC4WD Yota Narrow Offset 1.9" Beadlock Wheels
1x Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex) (Z-S1328)

Replacement Hardware:
Steel Socket Head Cap Screws M3 x 8mm (Silver) (Z-S0816)
RC4WD Miniature Scale Hex Bolts (M1.6 x 4mm) (Silver) (Z-S1124)
Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex) (Z-S1328)

Notes:
Fits RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029)
Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
Fits RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
Fits RC4WD Gelande II RTR Truck Kit w/D90 Body Set (Z-RTR0031)
This wheel is designed with a narrow offset. Z-T0005, Z-T0049, Z-T0004, Z-T0098, Z-T0061, Z-T0119 will work best on this wheel. Larger tires may interfere with parts of the axle assembly.

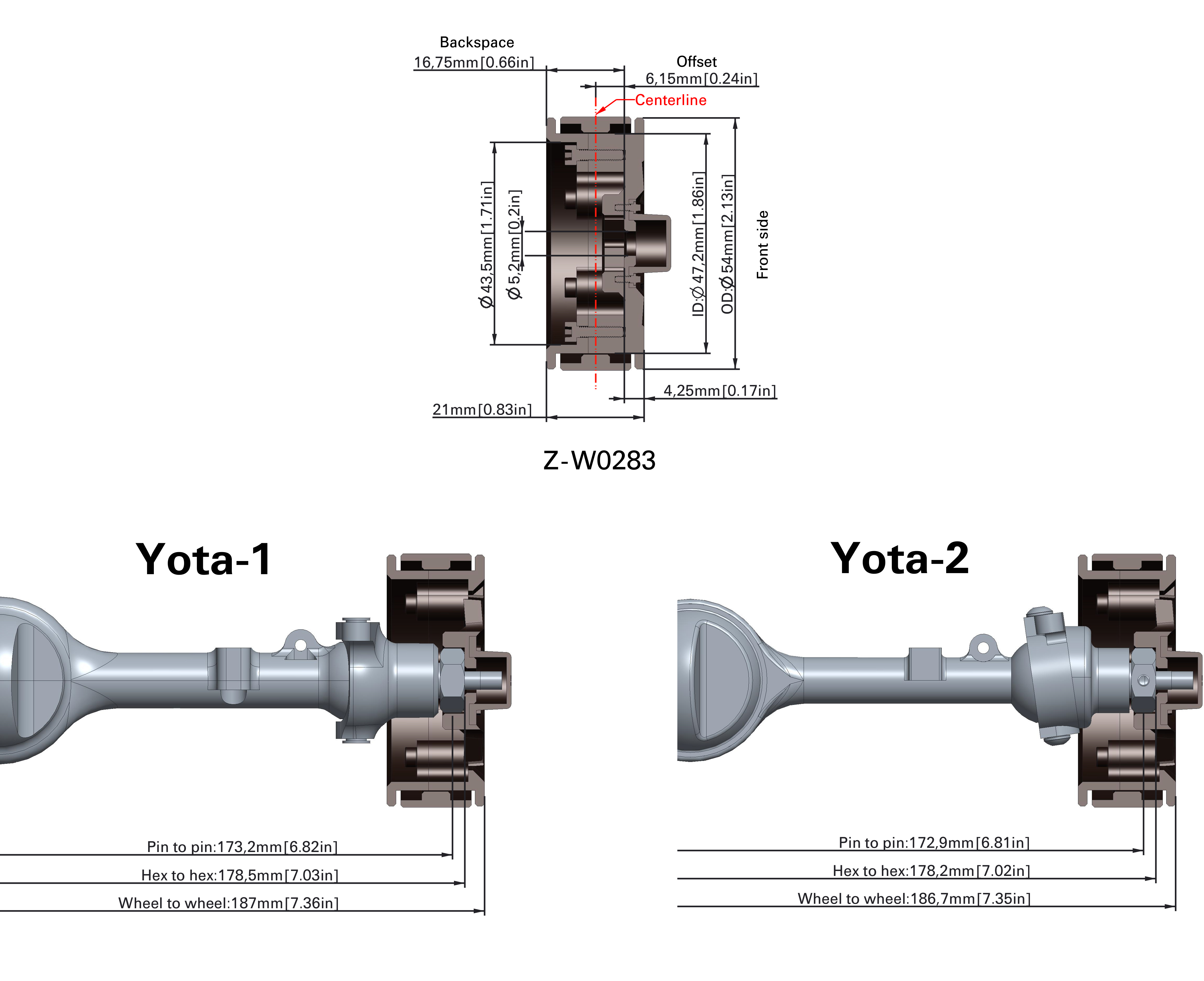

Wheel is designed to fit on Yota 1 and Yota 2 axles and will narrow the offset 6.15mm.

Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.
