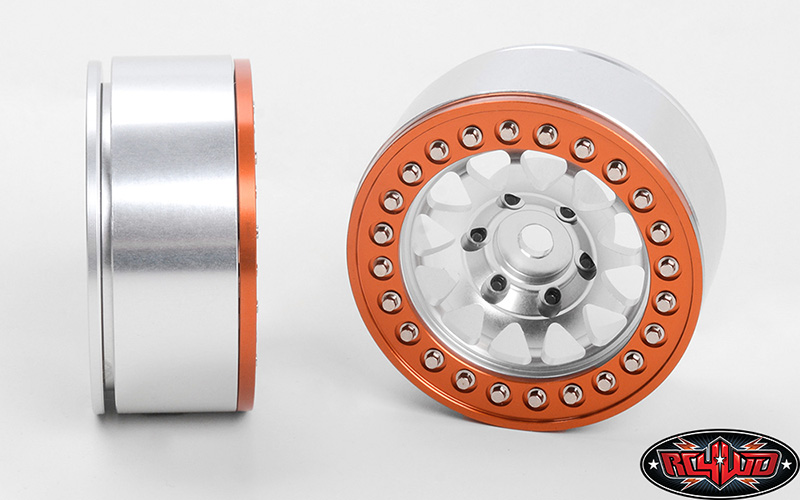

Specifications:
CNC Machined
Billet Aluminum

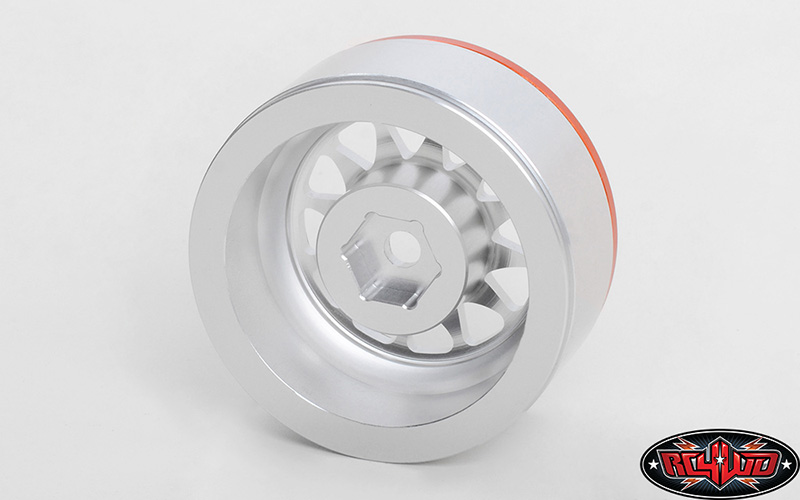

Fits Standard 12mm Hex
Wheel Size: 1.9"
OD: 2.14in / 54.0mm
Width: 0.96in / 24.4mm
Center Hole OD: 0.20in / 5.2mm
Negative Offset: 0.02in / 0.50mm
Each Weigh: 2.06oz / 58.6g

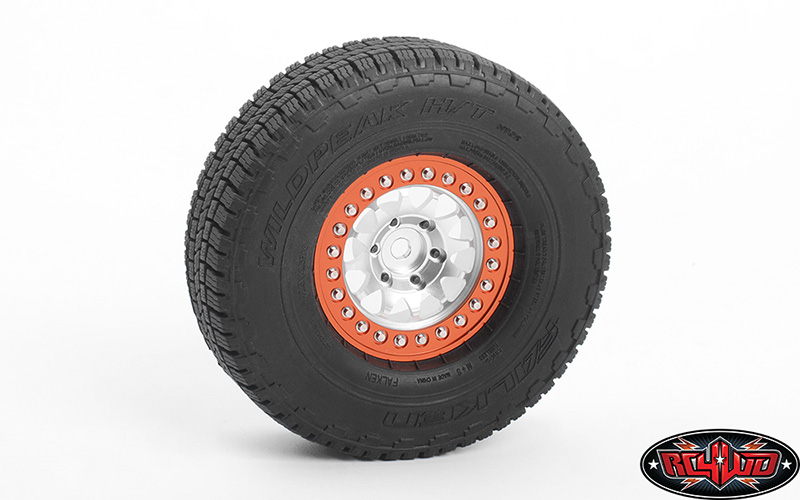

Shown installed with RC4WD Falken WildPeak H/T 1.9" Tires (Z-T0180) for example (Not Included)

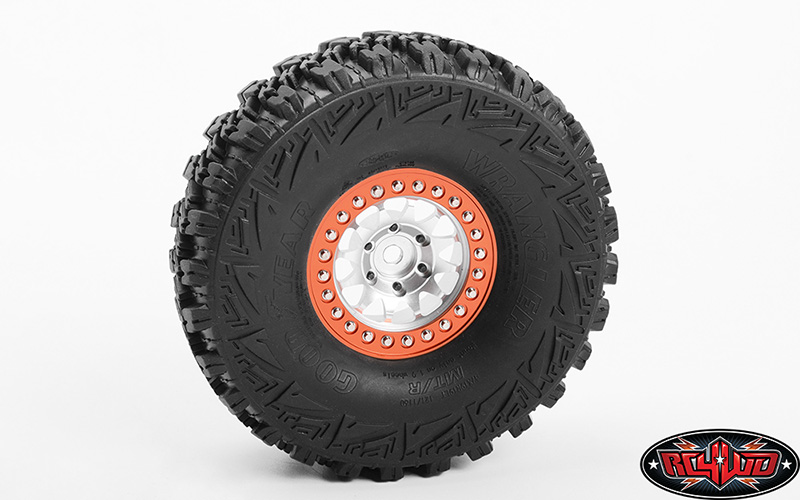

Shown installed with RC4WD Goodyear Wrangler MT/R 1.9" 4.7" Scale Tires (Z-T0175) for example (Not Included)

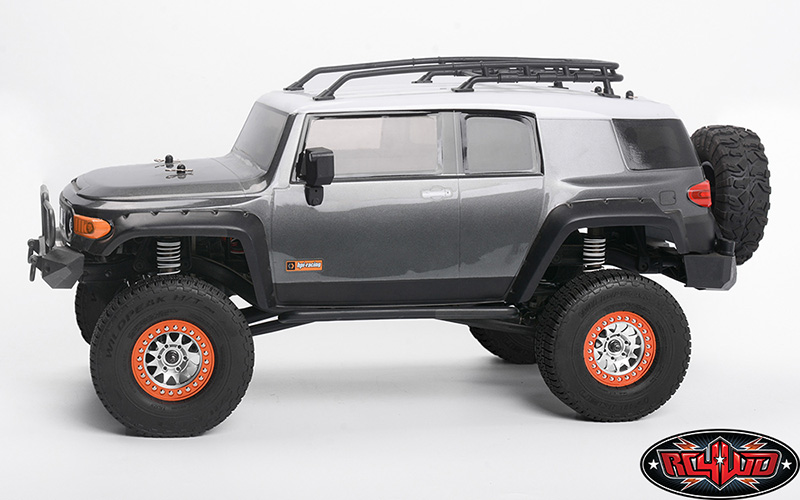

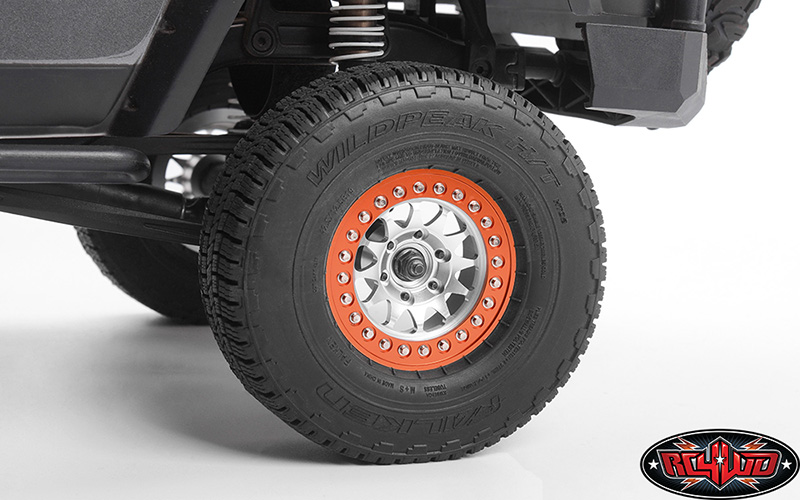

Shown installed on HPI Venture FJ Cruiser with RC4WD Falken WildPeak H/T 1.9" Tires (Z-T0180) for example (Not Included)

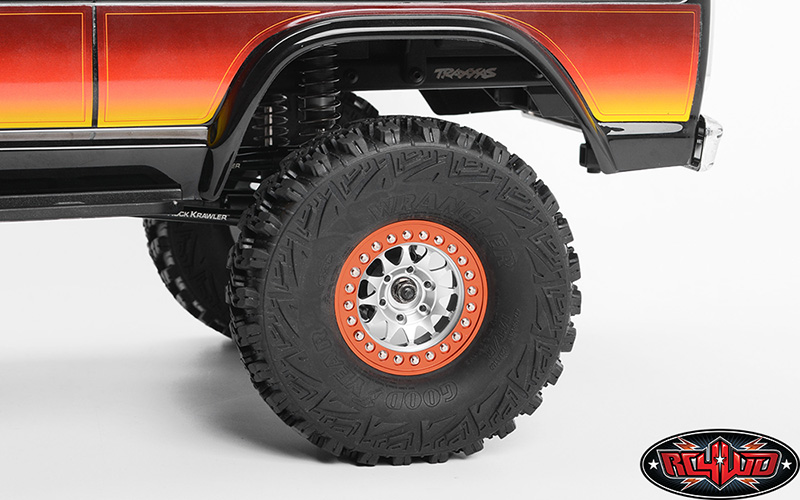

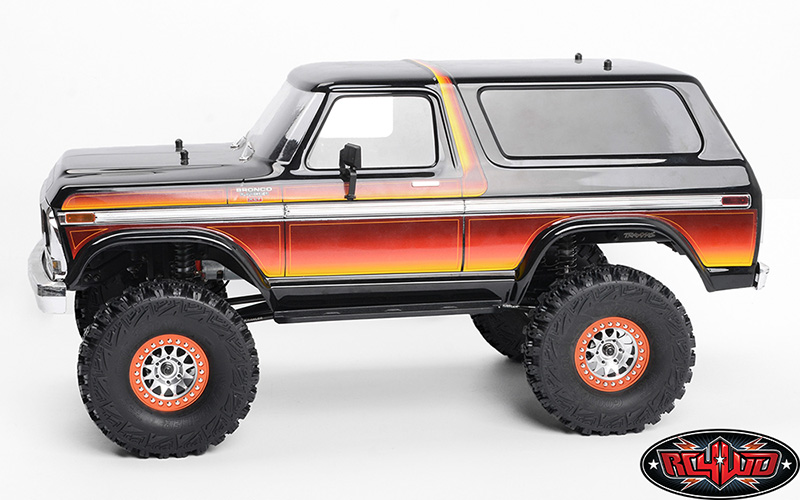

Shown installed on Traxxas TRX-4 '79 Bronco Ranger XLT with RC4WD Goodyear Wrangler MT/R 1.9" 4.7" Scale Tires (Z-T0175) for example (Not Included)



What's Included:

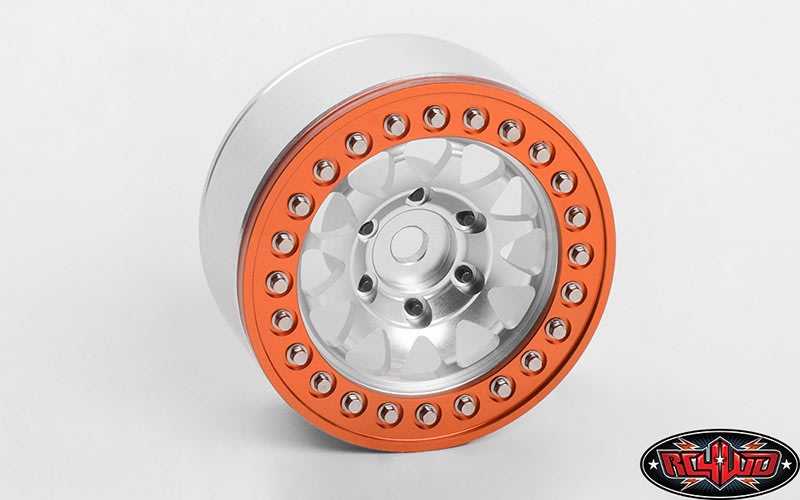

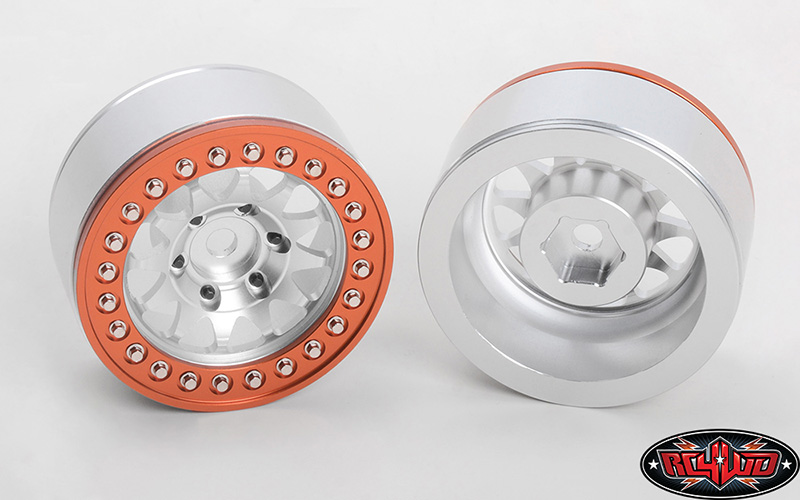

4x Rock Tamer 1.9" Beadlock Wheels
1x Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex) (Z-S1328)
1x Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)

Replacement Hardware:
RC4WD Miniature Scale Hex Bolts (M1.6 x 4mm) (Black) (Z-S1624)
RC4WD Miniature Scale Hex Bolts (M2 x 6mm) (Silver) (Z-S1196)
Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts (1.5 mm Hex) (Z-S1328)
Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)

Notes:
Fits RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029)
Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
Fits RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
Fits RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001)
Fits RC4WD Gelande II RTR Truck Kit w/D90 Body Set (Z-RTR0031)
Fits Axial SCX10
Fits Axial SCX10 II
Fits Vaterra Ascender
Fits Axial Wraith
Fits HPI Venture FJ Cruiser

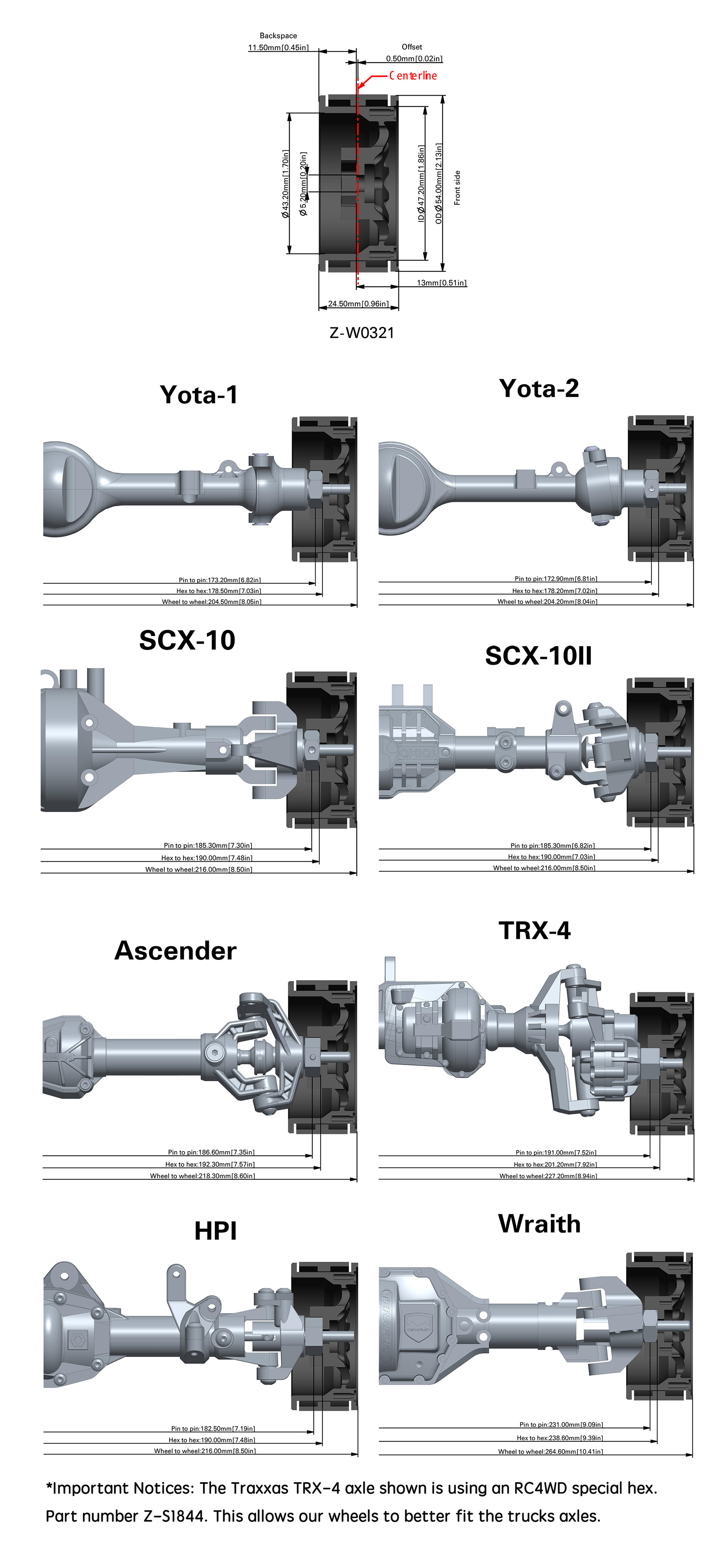

Installing on Traxxas TRX-4 trucks requires the RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4 (Z-S1844)
Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.
