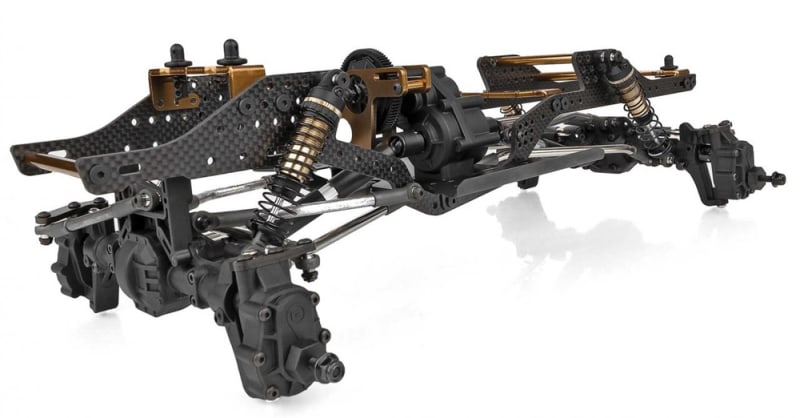

Progress. You asked and you shall receive. Here at Element RC, we strive to bring you products that you want. This time, we went above and beyond to bring you a complete competition rock crawling kit, the Enduro Comp Fox.
This kit is aimed towards the serious competitive RC crawler and comes packed full of features to progress you through each gate. The lightweight flat rail carbon fiber chassis, held together with machined aluminum braces, is strong, yet light enough to help keep the center of gravity down low. With plenty of shock and link mounting positions, there are endless increments of suspension tuning options available.
Just like any good comp rig, the Comp Fox comes designed with an 8º angled Delrin® skid plate to help get over those difficult breakovers and prevent high centering.
At the center of the Comp Fox is our tried-and-true Stealth X(R) transmission with overdrive gears and forward bias aluminum motor mount. This places the weight of the motor over the front axles for the ideal targeted 60/40 weight balance.
To help maximize clearance, the Enduro Comp Fox comes with a newly designed set of high-clearance portal axles that include all-metal gears and ball bearings. With almost an inch more clearance than our standard straight axles, you know this rig means business.
We didn’t stop there. We also included some Factory Team hopups like steel pivot balls, high-clearance links, and threaded aluminum shocks to make the Enduro Comp Fox a fierce competitor on the rocks.
With all these features packed in one box, we know the all-new Enduro Comp Fox is the perfect rig for whatever adventures lie around the next corner. Your journey begins here!
CHASSIS FEATURES:
SERVO-ON-AXLE STEERING: Servo-on-axle steering provides better performance while keeping the vehicle’s center of gravity low.
CARBON FIBER FLAT RAIL CHASSIS: The routed carbon fiber flat rail chassis, together with the aluminum chassis braces, is lightweight, rigid, strong, and provides plenty of suspension tuning options.
FACTORY TEAM SHOCKS: With almost an inch of center axle clearance over standard straight axles, getting over tough obstacles is a breeze.
STEEL PIVOT BALLS: Steel pivot balls are strong, reliable, resistant to abrasion and friction wear while allowing the suspension to articulate smoothly even under extreme conditions.
DELRINR ANGLED SKID: Machined from a solid low-friction Delrin® block, the lower skid plate is angled 7 degrees while keeping the transmission flat for more rear ground clearance and better breakover transitions.
FORWARD BIAS MOTOR MOUNT: The two-piece aluminum motor mount flips the motor forward and low for more frontend weight bias while keeping the center of gravity as low as possible.
PORTAL AXLES: When it comes to rock crawling, ground clearance is crucial. That’s why the Enduro Comp Fox competition rock crawler kit includes our all-new high-clearance portal axles. With almost an inch of added center axle clearance over standard straight axles, getting over tough obstacles is a breeze. To battle the massive amount of torque inherent with portal axles, we not only utilized metal gears throughout, but also use six screws to hold the portal gear boxes tight. That many screws ensures a stronger portal box and less chance of gears pulling apart under heavy loads.
Included is our performance proven Stealth® X transmission that features the ability to adjust the rear drive ratio. In the box you get the standard 5.7% and 11.83% gear options. Paired with our all-new portal axles with zero percent underdrive, this is the perfect mild setup for the average crawler.
If even more underdrive in the rear is desired, an optional 12/23 tooth gear set (#42372) is available separately for an additional 36% overdrive from axle-to-axle alone!
ADDITIONAL FEATURES
NEW high-clearance portal axles
NEW carbon fiber flat rail chassis
NEW aluminum chassis braces and body mount supports
NEW Delrin® machined and flush mounted angled lower skid plate
NEW 2-piece forward-bias aluminum motor plate
Factory Team aluminum threaded shocks
Factory Team steel pivot balls
Factory Team 5mm heavy-duty steel
High-clearance links
Servo-on-axle steering
Universal front and rear drive axles
Aluminum steering plates
Optimized ball cups for more fluid axle articulation
Telescopic driveshafts front and rear
Extruded aluminum driveshaft splines
Machined input pinion gear
Metal ring gear
Machined steel top shaft
Metal ball bearings included
Steel 25T servo horn
Specifications:
Power Source: Electric
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 410mm (16.14in)
Width: 230mm (9.06in)
Wheelbase: 322mm (12.68in)
Weight: 1190g (2.62lbs)
Drive: 4WD
Required to Complete:
Body
Wheels
Tires
2+ Channel Transmitter/Receiver
Steering Servo
Motor
ESC
Battery
Charger
Paint
* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.
|
|
|
 |
|
 |
|
