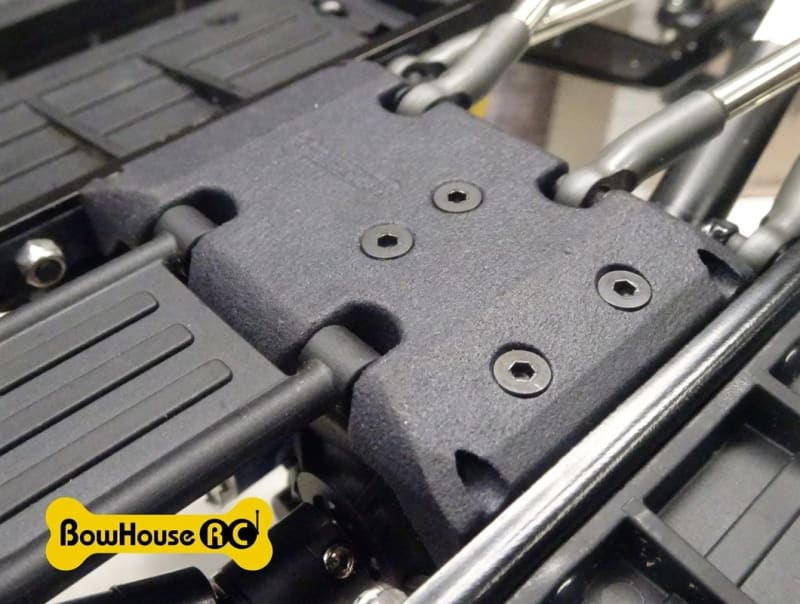

Bowhouse RC SVT Low CG Multipurpose Skid for Element and SCX10

Bowhouse RC SVT Low CG Multipurpose Skid for Element and SCX10

RPP Price: $34.99

STOCK STATUS:
 In Stock!

Free Shipping
Part Number: BOW-BEL-0020
Qty:

Description


Derek the mad scientist (aka SVT923) has been at it again. This time, he's created the ultimate low CG multipurpose skid for Element and Axial-based trucks. The SVT Low CG Multipurpose Skid for Element and SCX10 (yes...we know it's a mouthful) is truly the Swiss Army knife of skids. Want to lower the transmission by 3mm and improve driveline angles on your Element Enduro? No problem. Swap out the Element's Stealth X transmission for an AX10 transmission? Easy. Install an Element Stealth X transmission in your SCX10 or SCX10 II? We've got you covered. Use the Element IFS conversion kit on your SCX10 or SCX10 II? You guessed it...our newest skid does all of this and more. And as if that weren't enough, we've smoothed out the underside of the skid so that it slides over rocks with ease.

ELEMENT

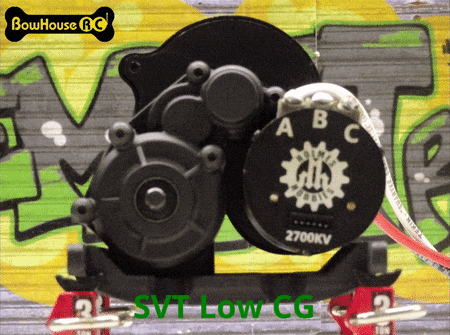

Lowers stock transmission by 3mm without impacting ground clearance
Improves driveline angles
Allows installation of Axial AX10 3-gear transmission
Works with solid front axle and IFS versions of the Element
Works with both transmission orientations
Fits stock Element pivot balls

SCX10 / SCX 10 II
Lowers transmission by approx. 1mm without impacting ground clearance
Allows installation of Element Stealth X transmission
Allows installation of Element IFS conversion without having to trim skid mounting holes
Fits stock Axial pivot balls

Package includes:
1 skid
1 transmission spacer
4x M3 x 20mm set screws
4x M3 x 12mm flat head screws
4x M3 locknuts
2x M3 x 12mm BHCS

Installation notes:
Start by removing stock skid. Save the screws and locknuts used to attach upper links to the chassis, and the screws used to attach the skid in each of the 2 middle holes on each side of the skid.
Insert SVT Multipurpose skid into chassis and use stock screws to attach the skid to the chassis in each of the 2 middle holes on each side.
Use stock screws and locknuts to attach rear and front (if applicable) upper links after installing the skid.
Use M3 x 20mm set screws in place of stock set screws to attach front and rear lower links (or IFS skid and rear lower links if running IFS).
Use 4x M3 x 12mm flat head screws to fasten transmission to skid.
Use 2x M3 x 12mm BHCS screws and M3 locknuts to attach skid to chassis in forward-most skid holes when running IFS setups. You do not need to use these screws if running solid front axle.
You do not need to use screws in the forward-most and rearward-most slider holes.
Go out and play!

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 3 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 September 20, 2022
Reviewer: Kevin Thompson from Greenville, KY United States
excellent piece,excellent service and shipping

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Read The Instructions! June 22, 2022
Reviewer: BCF from Bend, OR
Easy to install. It's a small improvement in your COG, but for the price I think it's great. It is slightly thinner than the stock skid, so be sure to read the instructions fully. Specifically, "Use 4x M3 x 12mm flat head screws to fasten transmission to skid." Don't try and reuse the stock hardware that bolts the transmission to the skid, they are too long and will bore their way into the transmission and bind up the gears, especially if you are running a larger 56t (25% OD) gear. This was my mistake and no fault of the manufacturer. Just adding this in as a word of warning to others.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Love it! April 23, 2021
Reviewer: Bela Stoll from Edmonds, WA United States
Great upgrade with quality materials.

Was this review helpful to you?
