We're thrilled to introduce the Cobra 10, our next generation electronic speed controller (ESC) for surface applications.
Quick Features:
Waterproof : Yes
Telemetry Capable : No
Data Logging : Yes
Auxiliary Wire : Yes
Minimum Input Voltage : 2S
Maximum Input Voltage : 4S
Sensored Capable : Yes
Recon G6 Certified ESC : No
ROAR Certified ESC : No
CRYO-DRIVE : Yes
B-Link Compatible : No
The
Cobra 10 boasts a state-of-the-art 32-bit, dual-core processor,
ushering in a new era of precision and performance. Its enhanced data
logging capabilities offer extended recording times, faster sampling
rates, and a wealth of data points, enabling users to delve deeper into
their vehicle's performance than ever before.
Crafted with a CNC
aluminum bottom case, the Cobra 10 is engineered to endure the most
rigorous conditions, ensuring reliability in every race or off-road
adventure.
One of its defining features is our acclaimed
CRYO-DRIVE™ technology, engineered to reduce operational temperatures,
significantly prolonging the ESC's lifespan. Moreover, equipped with an
impressive 8-amp BEC, the Cobra 10 can effortlessly power the most
demanding servos, making it an indispensable ally in your
high-performance setup.
We’ve packaged the Cobra 10 with 16
different Castle 4 -POLE 12-SLOT motor options to overpower a wide range
of 1:10th scale vehicles.
New Features:
32-Bit Processing power for smoother motor control and improved response time.
Enhanced Data Logging includes:
Double the maximum sample frequency of older generations.
8x increased logging time of older generations.
Data point for ESC electrical motor timing.
Data point for acceleration via onboard accelerometer.
Looping feature prevents interruptions in data log recording.
Ability to download specific sessions.
Hill Hold feature
Incredibly strong drag brake enhancement feature for rock crawling.
Eliminates any creep or movement of the motor on an incline.
Additional tuning features include:
Improved braking adjustability
Separate brake and reverse curves
Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
Access
to tuning options and firmware updates for free with Castle Link V4 USB
programmer included with purchase. Now with USB-C connector! (Requires
Windows 10 or higher)
Mounting holes located in bottom of aluminum case for installation into vehicle. (Mounting template available under resources)
More Features:
Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo); 4s max with included 1406-1900kv motor
SmartSense™, Sensored Only and Brushed Motor Operation Modes
Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
CRYO-DRIVE™
Technology minimizes the amount of time the ESC’s electrical components
spend generating heat, resulting in improved thermal performance during
partial throttle operation where the majority of driving occurs
ESC
is housed in a rugged CNC aluminum case and potted in waterproof epoxy
to protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 25mm cooling fan
Waterproof design for all weather conditions
Data logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Cobra 10 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

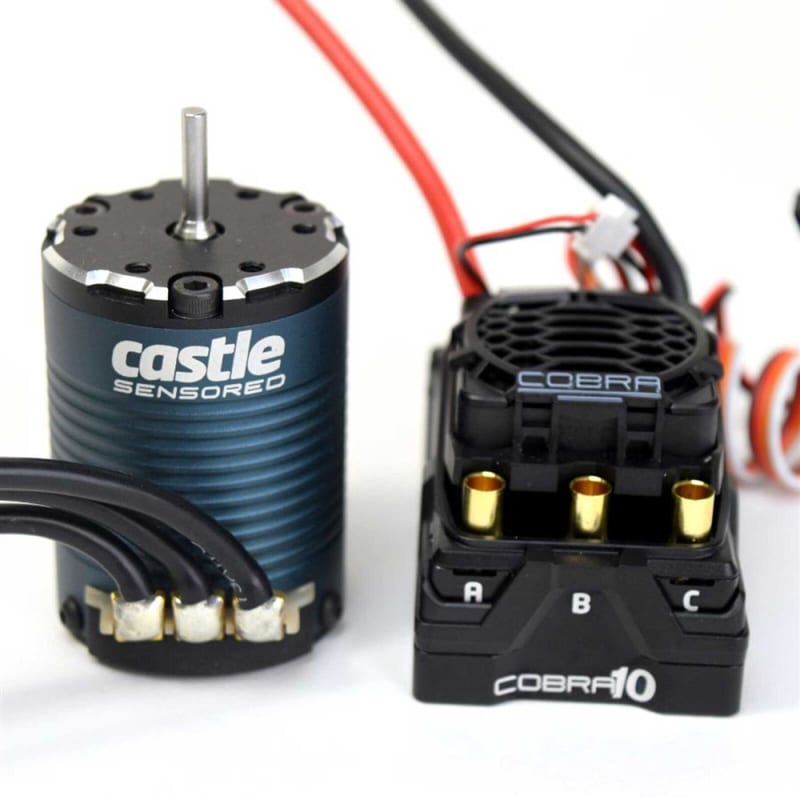

Includes:
Cobra 10 ESC
1406-1900kv sensored brushless motor
Castle Link V4 USB Adapter
250mm Direct Connect Sensor Wire
Castle Decals
ESC Quick Start Guide
ESC Specifications:
|
Input Voltage Range:
|
MIN: 2s LiPo, MAX: 6s LiPo (25.2 V) (4s max with included 1406-1900kv motor)
|
BEC Specifications:
|
5.0V - 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V
|
|
Operating Environment:
|
Waterproof* design allows for use in nearly any environment.
|
|
Running Modes:
|
SmartSense Brushless, Sensored Only, Brushed
|
Brake:
|
Proportional
|
|
Reversible:
|
Yes, but may be disabled for racing.
|
|
On/Off Switch:
|
Yes, waterproof
|
|
Cooling Fan:
|
Yes, factory equipped (25mm),temperature controlled
|
|
Size:
|
55.9mm x 38.3mm x mm (2.2" x 1.51" x 1.44")
|
|
Weight (with no battery connector):
|
4.02oz (114g)
|
|
Battery Wire:
|
12AWG
|
|
Connectors:
|
4.0mm female bullets for motor connection, matching 4.0mm male bullets required.
|
|
Items Needed for Operation:
|
A
high current connector designed for high-powered electric systems,
rated for 70+ amps, such as Castle 6.5mm Polarized Connectors, Castle
4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra
Plugs soldered to the battery leads.
|
|
Product Use Statements:
|
Not intended for drag racing applications.
*Although
Cobra 10 is waterproof, it is not intended for operation while
completely submerged in liquid. Always rinse the ESC and motor with
clean water after exposure to corrosives or dirt. While the motor and
controller may be waterproof, we suggest users confirm that the rest of
their vehicle, including the batteries, servos, radio and chassis are
also waterproof before exposing them to liquids of any kind.
**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
|
Application Guidelines:
|
Cobra
10 is designed for use in 1:10 scale vehicles weighing up to 7lbs and
1:8 scale buggies geared for off road racing weighing up to 9lbs.
|
|
Recommended Motors:
|
Castle 1406, 1410, 1412 and 1415 Sensored motors and some 15 series for e-buggy setups
|
|
Programmability:
|
Fully
programmable Castle feature set using the included FREE Castle Link V4
USB adapter and freely downloadable NEW Castle Link Windows™ software.
(Windows 10+ required)
|
Castle Link Mobile App (B-Link):
|
In development
|
|
Tech Tips:
|
-Cobra
10 setups frequently hit 100+ amps in peaks and not all LiPos are
created equal. Surge ratings should never be used to determine a pack's
suitability for a brushless application. Recommended battery capacity
for 1:10th and 1:8th scale vehicles is 5000mAh. We recommend using 30C
continuous discharge or higher LiPo batteries (or high quality 25C
batteries such as Traxxas® Power Cell).
-Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
-Applying voltages higher than 25.2V will cause irreparable damage to ESC.
|
Motor Specifications:
|
Input Voltage Range:
|
2-4S LiPo
|
|
Kv:
|
1900
|
|
Max. RPM:
|
100,000
|
|
Size:
|
Length: 49.5mm
Diameter: 36mm
|
|
Weight (w/wires):
|
193g / 6.8oz
|
|
Shaft Size:
|
Length: 15mm
Diameter: 1/8" (3.17mm)
|
|
Mounting Hole Specifications:
|
M3 @ 25mm
|
|
Cooling Fan:
|
Optional, coming soon!
|
|
Connectors:
|
4mm male Castle Bullet Connectors
|
|
Application Guidelines:
|
Ideal for 1:10 scale low speed rock crawlers/trail runners on 3S-4S weighing less than 9lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.
|
|
Max. Recommended Vehicle Weight:
|
9lbs when used for low speed/moderate driving style like rock crawling and trail running;
5lbs for more racing and aggressive driving styles.
|
|
Tech Notes:
|
Running modes: SMARTSENSE™, Sensored only
Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
|
Manufacturer's Title: COBRA 10 6S MAX, 25.2V MAX, 8A PEAK BEC W / 1406-1900KV SENSORED MOTOR
|
|
|
 |
|
 |
|
