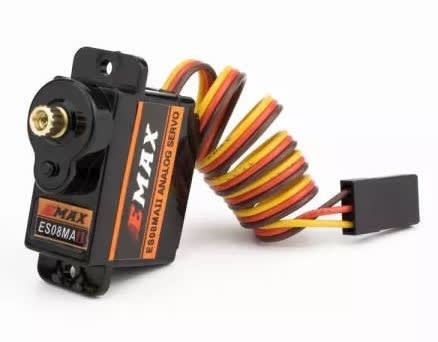

EMAX ES08MAII 12g Mini Metal Gear Servo for SCX24
EMAX ES08MAII 12g Mini Metal Gear Servo for SCX24

More Photos:
RPP Price: $8.99
DISCONTINUED

Note: Coupon discounts not available

STOCK STATUS:
Out of Stock


Free Shipping
Part Number: EMX-SV-0275
Qty:

Description

The go-to metal gear servo for the Axial SCX24!
To be used along with Hot Racing Steering Servo Mount: HOTSXTF24M01

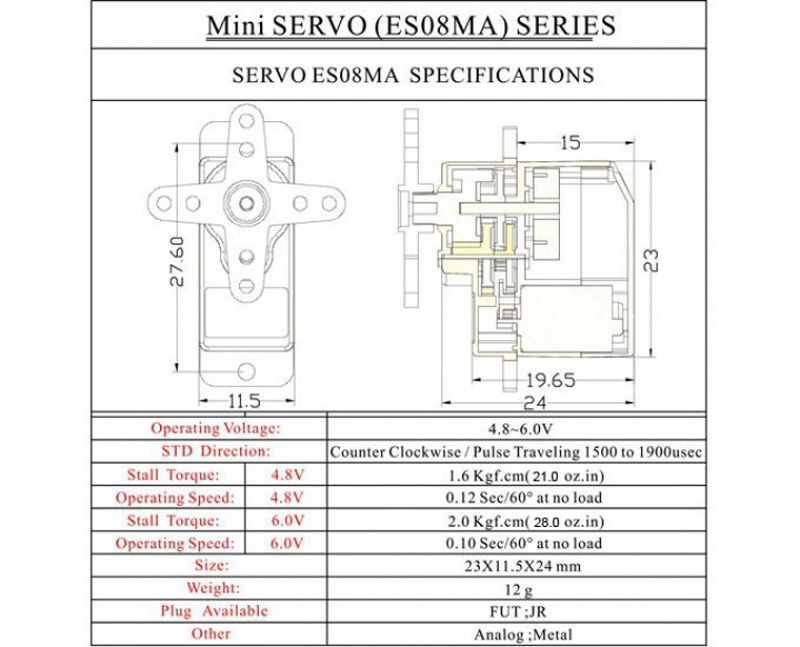

Specifications:
Dimension: 23x11.5x24mm (1.25 x.45 x.94inch)
Weight: 12g / 0.42oz
Flower head: 15T
Gear type: Metal
Signal: Analog
Extreme angle: 360°
Color: Black
Working Voltage: 4.8V - 6.0V
Speed: 0.12sec/60deg at 4.8V; 0.10sec/60deg at 6V
Torque: 1.6/2.0 kg.cm (4.8V/6V) 21.0 oz.in/28 oz.in (4.8V/6V)


4.8V6.0V
Operating speed (at no load)0.14 sec / 60°0.12 sec / 60°
Running current (at no load)200mA Max250mA Max
Stall torque1.6kg.cm Max2.0kg.cm Max
Maximum current0.9A Max1.1A Max
Idle Current6.5mA6.5mA
Weight12 ± 1g
Connector Type
JR
Connector Wire Length250±8(terminal excluded)
Spline Tooth Count
15T
BearingNo
Gear TypeMetal
External Angle360°
Control SystemPWM
Operating Travel90° ± 10° (when 1000-2000 μ sec)
Neutral Position1500 μ sec
Rotating DirectionCounterClockwise/PulseTraveling
1500 to 1900 μ sec
Pulse Width Range700-2300μsec
Maximum Travel145°±10°(700-2300μsec)
