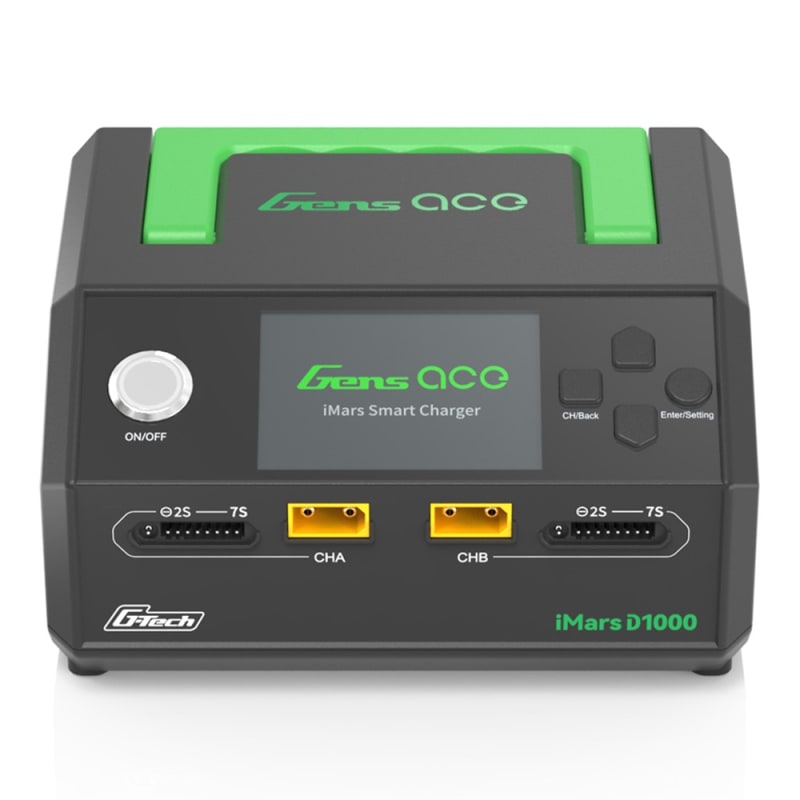

The iMars D1000 Charger is a new generation versatile and intelligent dual channels charger that with function of charging, discharging, and battery cycling functions.
As the new part of G-Tech Eco, iMars D1000 Charger is supporting both G-Tech smart battery and regular non-G-tech batteries.
When a G-Tech smart battery is connected to the iMars D1000 charger, the charger will automatically identify the battery type, voltage through the smart balance connector, and charging current recommended by the battery manufacturer. For non-smart batteries, it is necessary to manually select the battery type and the required working mode to get started.
Packed with features, the D1000 Charger includes a comprehensive charging capacity display, voltage difference monitoring, IR detection, and boasts a compact, lightweight design for easy portability. The wide-view IPS display enhances the user experience, and the charger supports high-power charging up to 25A.
Safety is paramount with the D1000 charger, offering a suite of protections including over-temperature, over-current, over-charge, over-voltage, disconnection, short circuit, single-cell low voltage, and reverse polarity protection. The charger operates in Three modes – charge, storage, cycling.
During charging, real-time monitoring ensures the battery's status is closely tracked, automatically ceasing charging when the battery reaches full capacity.
Grepow bring the new function of the battery cycling to the market, during cycling function, D1000 will based on the user setting to charge or discharge to the end voltage for each cell, when the charge operation done, D1000 charger will automatically re-charge battery back to the setting voltage as a fully discharge and charge cycle, and cycle numbers could be set up by users.
Includes:
Charger
Manual
AC Input Cable
USB Cable
2x XT90 to XT60 adapters
2x XT90 to Deans adapters
2x XT90 to EC3 adapters
Features:
Intelligent recognition with G-Tech technology
Dual channels with fully independent functions
Compact and flexible, with 25A charging current
LiPo/LiHV 1-7S (supports G-Tech/Non G-Tech battery)
Cycling function support users setting up.
Specifications:
Input voltage: AC 100-240V 50/60Hz
Output voltage: DC 0~32V
Charging current: Max 25A*2
Charging current in storage mode: 25A*2
Discharge current in storage mode: 6A*2
Maximum charging power: 500W x2
Maximum charging power in storage mode: 500W x2
Maximum discharge power in storage mode: 70W*2
Working temperature: 0~60°C
Storage temperature: -20~60°C
Dimensions: 186x174x95mm
Weight: about 1.7Kg
Supported battery type and number of cells: LiPo/LiHV 1-7S (Support G-Tech smart balance connector)
Product manual: Click Here
|
|
|
 |
|
 |
|
