Pro-Line Twin I-Beam 2WD Pre-Runner Suspension Conversion Kit SCX10 I / II

Pro-Line Twin I-Beam 2WD Pre-Runner Suspension Conversion Kit SCX10 I / II

More Photos:
RPP Price: $89.99

STOCK STATUS:
 In Stock!

Free Shipping
Part Number: PRO638500
Qty:

Description

Transform your SCX10™ I/II into a 2WD Desert Truck with Pro-Line's Twin I-Beam Pre-Runner Suspension Kit! In the early days of offroad desert racing, I-Beam trucks became the standard suspension setup due to their uncompromised durability, easily attained long-travel and overall simplicity. Now, you can capture that desert racing spirit using your SCX10™ I/II kit as a base to build a 1/10 scale pre-runner.

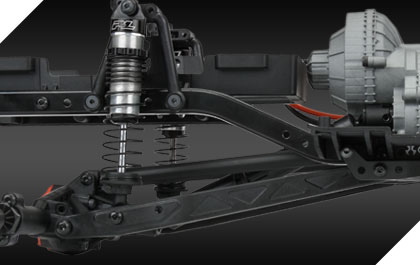

The Twin I-Beam front suspension consists of two long "I-beam" arms that cross one another in an X-pattern. These arms control the lateral forces applied to the wheels, while radius arms reach backward toward the center skid plate to stabilize each wheel in the fore-aft direction. This super-scale conversion kit utilizes the same geometry setup as 1:1 trucks with true swingset steering and center-mount radius arms to optimize handling throughout the entire suspension travel.

The I-Beam conversion kit includes everything you need to easily convert your rig and completely change the driving experience of your SCX10™. Stainless steel links and steel pivot balls provide dependable endurance, while the new battery tray moves the battery to the rear of the vehicle for optimal weight bias and performance. The new front shock tower features holes for dual shock mounting, and the new rear trailing arms have 3 wheelbase options for added adjustability and versatility.

Get ready to hit the open desert trails with the Pro-Line I-Beam Pre-Runner Conversion!

Features:
Highly detailed, durable, scale-looking molded I-Beam Arms, Radius Arms and Trailing Arms
Improved Stability and Optimized Handling
True-swing set Steering Using Stainless Steel Links and Pivot Balls
New Front Shock Tower with Dual Shock Mounting Options for Added Adjustability and Versatility
Trailing Arms with Adjustable Wheelbase
Rear-mounted Battery Tray for Optimal Weight Distribution and Performance
Capture the Desert Racing Spirit and Breathe New Life into your SCX10™
Includes plastics and hardware needed to Completely Transform the Axial® SCX10™ I/II to a 2WD Twin I-Beam Pre-Runner

Includes:
Box contains all parts needed to convert the SCX10 I/II to a 2WD I-Beam Suspension Pre-Runner

Needed to Complete:
Axial® SCX10™ I/II Kit with electronics or RTR
Tools: 1.5mm / 2.0mm hex driver, 5.5mm nut driver, 7mm nut driver / wheel nut wrench, Needle-nose pliers, Flush cutters

Fits:
SCX10™ I & II

SCALE-LOOKING I-BEAM ARMS
Highly detailed, durable, scale-looking molded I-Beam Arms, Radius Arms, and Trailing Arms allow for simple, long travel suspension 		SWING SET STEERING
True-Swing Set Steering using stainless steel links and pivot balls optimizes handling
REDESIGNED SHOCK TOWER
New front Shock Tower allows for dual shock mounting options 		ADJUSTABLE WHEELBASE
Trailing arms with 3 adjustable wheelbase locations and rear-mounted battery tray for weight distribution
Recommended Parts:
Pro-Line recommends the following parts to complete your conversion. These parts are not required, but highly recommended for both scale looks & performance:
2015 Chevy® Silverado™ Body (PRO360100)
Big Bore Scaler Shocks, 3 pairs (PRO634300)
Scale 1.9" Tires from 4.3" - 4.8" tall
-Toyo® Open Country R/T (PRO1021114)
-Toyo® Open Country R/T Trail (PRO1022614)
-BFGoodrich® KO2 (PRO1012414)
-BFGoodrich® KM3 (PRO1015014)
Dual Stage 1.9" Foam Inserts (PRO617400)
Spektrum Firma 85A ESC / 3300Kv Brushless Motor Combo (SPMXSEMC01)
Spektrum 3S Lipo ( SPMX53S30H5 or SPMX53S50H3)
Any aftermarket open rear differential will highly increase rear traction
