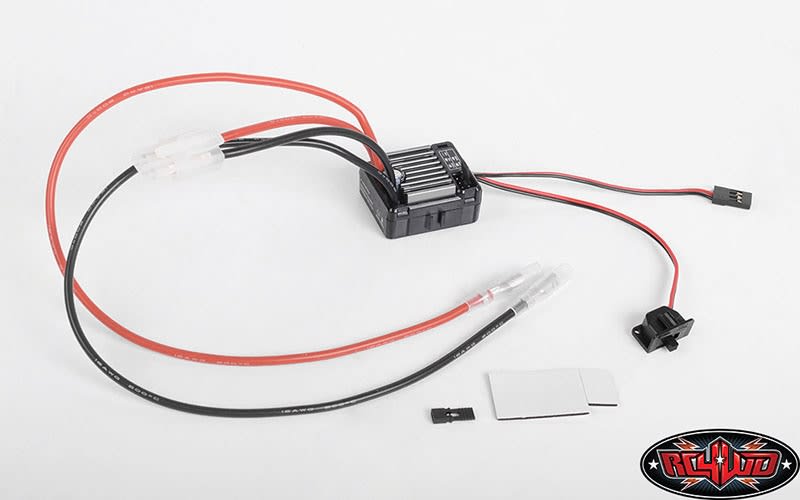

This new Outcry III Waterproof ESC features great characteristics for scale trail driving, making it the perfect choice for any scale build!
Specifications:
Input Voltage: 2-3S Lipo /5-9 Cells NiMH
Advanced Turbo BEC
BEC Output Voltage-Current: 6V-3A
Applicable to All Weather Conditions
LiPo Cutoff (Using 2S, half speed at 6.5V and shut off at 6V)
Proper Motors: 540 Brushed Motors
Size: 1.43 x 1.26 x 0.70in / 36.5 x 32 x 18mm
Weight: 1.37oz / 39g
What's Included:
1x Outcry III Waterproof ESC
1x Running Mode Regulator
1x 3M Double Faced Adhesive Tape
1x Appearance Sticker
Instruction Manual:
Click here to download
Notes:
Prior to proceeding, be sure to either remove the pinion from the motor or elevate the truck so the wheels are not able to touch the ground.
Do not touch this product while in use to avoid injury. Product emits heat and thus, the heatsink may become extremely hot.
This product is waterproof. Product will be functional in up to 10cm of water for 2 hours.
|
|
|
