Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow, or mud than the Trail Finder 2.
Part scale truck, part adventurer, your TF2 is ready for your mud kicking trail-loving lifestyle!
The TF2 has both detailed styling and aggressive performance.
You will find a balance of capability and performance built into every TF2.
Performance of the TF2 is smooth and with its 2 speed selectable transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout.
The TF2 is truly a work of art in both appearance and performance.
Every TF2 is compatible with a full range of option and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The Trailfinder 2. Your adventure awaits....

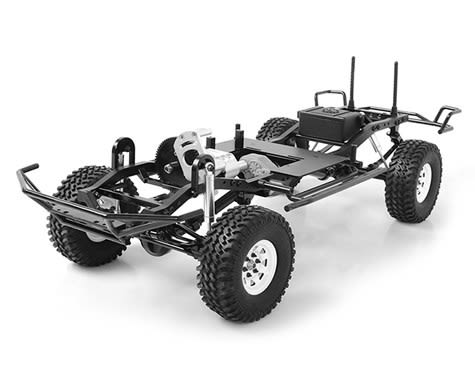

Realistic Billet Aluminum Ladder Frame Chassis
2 Speed Remote Selectable Transmission
Center Mounted Realistic 4x4 Transfer Case
Yota II Ultimate Scale Cast Axles
True to Scale Leaf Spring Suspension
1.55 Stamped Steel Beadlock Wheels with Lug Nuts
Super Grip High Performance Mud Thrasher Tires
Realistic Tube Bumpers - Rock Rails - Skid Plate
Chassis Mounted Steering Servo
RC4WD Ultimate Scale Shocks Absorbers
Shown installed with RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092) for example (Not Included)
All New Hammer Transfer Case
Ratio - 1.47:1 Gears - Wide .8 Mod steel gears
Features - 8 bearings, cast casing, hardened gears
All New R3 2 Speed Transmission
Ratios
Pinion/spur 14/64 = 4.57:1
1st gear 3.47:1
2nd gear 1.27:1
Gears - Wide steel .8 Mod, Delrin spur, slipper clutch,
Features - Machined billet aluminum casing, scale looking, Motor mount can be rotated to 10 different positions, compatible with other brand spurs (Axial, Traxxas, Robinson)
Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (using 4mm TF2 Hexes): 178.2mm
All New Trailfinder 2 Chassis
Features - Billet aluminum constriction
Adjustable shock hoops
Driveshafts
High quality plastic material, very durable
High quality steel Yokes
Wheels
Name: 1.55 OEM beadlock wheels
Hub: 12mm hex
Width: 22mm
Back spacing: 9mm
Features: Stamped steel, Aluminum hub, Internal Beadlock, very Scale Looking, 6 Bolt Pattern,
Bumpers
Marlin Crawler Front Plastic Tube Bumper
Marlin Crawler Rear Plastic Tube Bumper
Marlin Crawler Side Plastic Sliders
Authentic Looking Crawler Style Bumper, High Quality Flexible Plastic, Extremely Durable, Very Scale
TF2 Truck Dimensions
Wheelbase: 287mm (11.3")
Width: 215mm (8.5")
Height: 138mm (5.4")
Ground clearance: 57mm (2.5")
Final Drive Ratios: 1st - 62.1:1, 2nd - 22.75:1
DRIVETRAIN
The TF2 includes the new Hammer Transfer Case. Packed with detail, the Hammer features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.
The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.
The All New R3 2 speed transmission comes with a fully machined billet aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch. The new designed motor mount is adjustable in 10 positions.
Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.
The Driveshafts for the TF2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.
d a new high quality plastic shaft for great driveline angles and durability on the trail.
SUSPENSION
The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance.
Machined from billet aluminum, rebuildable and internally sprung.
The TF2 includes a set of RC4WD White Stamped Steel 1.55 internal beadlock wheels. Super tough paintable white finish,
aluminum internal ring and popular 6 lug design.
The TF2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options.
The All New TF2 Chassis is a machined billet alumi- num ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts.
Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.
What's Included:
1x RC4WD Trail Finder 2 Truck Kit
This is a kit that requires building time (appro. 2-3 hours) body and electronics.
Required to Complete:
Truck Kit
Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Associated Thread Locking Adhesive
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Electronics
Motor (35t, 45t, or 55t)
Electronic Speed Controller "ESC" (Z-E0007)
Radio and Receiver (3 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
2x Standard Size Servo (Z-E0035)
Battery (Consult your "ESC" manual)
Charger (Consult your battery guide)
Suggested Bodies
RC4WD Mojave II Body Set for Trail Finder 2 (Primer Gray) (Z-B0084)
RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092)
Replacements Parts:
Soft Steel Leaf Spring for Trail Finder 2 (Z-S0518)
Hammer Transfer Case (1.47/1) (Z-U0024)
Metal Drive Coupling for Trail Finder 2 (Z-S0599)
Steering Link Set (Z-S0938)
R3 Scale 2 Speed Transmission (Z-U0025)
14t 32p Hardened Steel Pinion Gear (Z-S0430)
Fuel Cell Radio Box (Z-S0592)
Trail Finder 2 Plastic Body Posts (Z-B0029)
Leaf Spring Shackles & Mounts Kit (Z-S0047)
RC4WD Marlin Crawler Front Plastic Tube Bumper for Trail Finder 2 (Z-S0594)
RC4WD Marlin Crawler Rear Plastic Tube Bumper for Trail Finder 2 (Z-S0595)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
M3 Mini Plastic Rod End (20x) (Z-S0398)
Stamped Steel 1.55" Stock White Beadlock Wheels (Z-W0035)
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)
Trail Finder 2 Bumper Mounts (Z-S0593)
Mud Thrashers 1.55" Scale Tires (Z-T0100)
Rear Shocks The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
Front Shocks The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
Optional Parts:
RC4WD 1/10 V8 Scale Engine (Z-S1043)
RC4WD TCI Heavy Duty R4 Single Speed Scale Transmission (Z-U0031)
Trail Finder 2 V8 Engine Mounts (Z-S1239)
RC4WD Skid Plate for Trail Finder 2 V8/R4 (Z-S1488)
TF2 Long Drive Shaft Coupling for R3 Single Speed (Z-S0898)
R3 Scale Single Speed Transmission (Z-U0028)
Triton Transfer Case (1:1) (Z-U0029)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (40mm/1.5") (Z-E0054)
RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (20MM/0.75") (Z-E0052)
RC4WD 1/10 Baja Designs Stealth LED Light Bar (100mm) (Z-E0064)
RC4WD 1/10 Baja Designs Squadron Pro LED Lights (Z-E0066)
RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (100mm/4") (Z-E0059)
RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") (Z-E0055)
XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
XVD Axle for Ultimate Scale Yota II (Z-S0823)
RC4WD Y Harness with Tamiya Leads (Z-S1577)
XT60 Male to Tamiya Male Connector Adapter (Z-E0072)
Y Harness with Tamiya Connectors for Light Bars (Z-S1601)
RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)
RC4WD Foldable Winch Anchor (Z-S1262)
RC4WD 1/8 Warn Zeon 10 Winch (Z-E0069)
RC4WD 1/10 Mini Warn 9.5cti Winch (Z-S1571)
Red Super Soft Flex Leaf Springs (4) (Z-S0570)
Leaf Spring Shackles & Mounts Kit (Z-S0047)
Super Scale Steel Leaf Spring for TF2 & Tamiya Bruiser (Z-S1476)
540 Crawler Brushed Motor 35T (Z-E0005)
540 Crawler Brushed Motor 45T (Z-E0004)
540 Crawler Brushed Motor 55T (Z-E0003)
540 Crawler Brushed Motor 65T (Z-E0002)
540 Crawler Brushed Motor 80T (Z-E0001)
RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)
RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)
540 Crawler Brushed Motor 27T (Z-E0067)
540 Crawler Brushed Motor 20T (Z-E0065)
Scale Steel Punisher Shaft (100mm-130mm) 5mm (Z-S0209)
Punisher Shaft II (90mm - 120mm / 3.54" - 4.72") 5mm F-350 Hi-Lift (Z-S0522)
Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
Rebuildable Super Punisher Shaft (100mm - 118mm / 3.94" - 4.65") 5mm Hole (Z-S1261)
Ultra Scale Hardened Steel Driveshaft "Ver 2" (80mm - 110mm / 3.15" - 4.33") (VVV-S0120)
Mega Truck Universal Shaft "Ver 2" (92mm to 130mm) (VVV-S0054)
M3 Mini Aluminum Axial Style Rod End (Blue) (10) (Z-S1354)
M3 Mini Aluminum Axial Style Rod End (Red) (10) (Z-S1362)
M3 Mini Aluminum Axial Style Rod End (Black) (10) (Z-S1370)
M3 Offset Short Aluminum Axial Style Rod End (Red) (10) (Z-S1368)
M3 Offset Short Aluminum Axial Style Rod End (Blue) (10) (Z-S1360)
RC4WD Superlift Adjustable Steering Stabilizer (90mm-120mm) (Z-S0986)
RC4WD Superlift Adjustable Steering Stabilizer (65mm-90mm) (Z-S0988)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)
#1 Aluminum Bumper Mount For Trail Finder 2 (Z-S0006)
#2 Aluminum Bumper Mount for Trail Finder 2 (Z-S0004)
#3 Aluminum Bumper Mount For Trail Finder 2 (Z-S0003)
3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
RC4WD ARB 1/10 Roof Rack (Z-X0008)
RC4WD Rampage Recovery Rear Bumper with Swing Away Tire Carrier (Z-S0959)
RC4WD 101mm (3.98") Internally Threaded Titanium Link (Z-S1321)
RC4WD 60mm (2.36") Internally Threaded Titanium Link (Z-S1319)
RC4WD 67mm (2.64") Internally Threaded (Z-S1333)
RC4WD 73mm (2.87") Internally Threaded (Z-S1329)
RC4WD Marlin Crawler Front Steel Tube Bumper for Trail Finder 2 (Z-S0778)
RC4WD Marlin Crawler Side Metal Sliders for Trail Finder 2 (Z-S0753)
Steel Roll Bar for Trail Finder 2 (Z-S0771)
Tough Armor Front Light Bar Bumper for Trail Finder 2 (Z-S1058)
Tough Armor Front Tube Bumper w/Winch Mount for Trail Finder 2 (Z-S0765)
Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
Tough Armor Side Steel Sliders for Trail Finder 2 (Z-S0056)
Tow Bar Mount for TF2 / G2 (Z-S1125)
Tuff Truck Saddle Tool Box for Trail Finder 2 (Z-S0839)
Universal Bumper Mounts to fit Trail Finder 2 (Z-S1005)
RC4WD Marlin Crawler Rear Steel Tube Bumper for Trail Finder 2 (Z-S1373)
RC4WD Rock Krawler Replacement 3/4 Link kit for Trail (Z-S1486)
Tough Armor Roll Cage For Chevy Blazer (Z-S1708)
M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
Front Inner Fender Set for Chevy Blazer (Z-S1729)
Steel Push Bar Front Bumper for Trail Finder 2 (VVV-C0107)
Low Profile Delrin Transfer Case Mount for TF2 (Z-S1777)
Metal Rear Bed for Mojave Body and Axial I & II (Style A) (VVV-C0380)
RC4WD V8 Engine Cover with Metal Intake Set for R3 Transmission (Z-S1749)
T-Runner Classic 1.9'' Beadlock Wheels (Z-W0250)
Gold Mesh 1.9" Beadlock Wheels (Z-W0251)
RC4WD 1/10 Holley® M/T Valve Covers for Scale V8 Motor (Z-S1748)
RC4WD Chevrolet Blazer Hard Body Complete Set (Yellow) (Z-B0152)
RC4WD Chevrolet Blazer Hard Body Complete Set (Teal) (Z-B0150)
RC4WD Chevrolet Blazer Hard Body Complete Set (Light Blue) (Z-B0148)
RC4WD Chevrolet Blazer Hard Body Complete Set (Orange) (Z-B0146)
RC4WD Chevrolet Blazer Hard Body Set (Digital Camo) (Z-B0147)
Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1805)
Low Profile Delrin Skid Plate for Std. TC (TF2) (Z-S1851)
Truescale Series 1.7" Beadlock Wheels (Z-W0265)
OEM Stamped Steel 1.55" Beadlock Wheels (Plain) (Z-W0258)
OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0260)
OEM Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0262)
OEM Stamped Steel 1.55" Beadlock Wheels (Chrome) (Z-W0264)
RC4WD Bilstein SZ Series 80mm Scale Shock Absorbers (Z-D0072)
RC4WD Bilstein SZ Series 100mm Scale Shock Absorbers (Z-D0074)
RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
RC4WD Ballistic Off Road Rage 1.9'' Beadlock Wheels (Z-W0261)
Blade Snow Plow Mounting Kit for Trail Finder 2 / G2 (Z-S1859)
Tough Armor Front Winch Bumper for Mojave II 2/4 Door Body Set (Z-S1845)
Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
RC4WD Advance Adapters Atlas II Transfer Case (1.47/1) (Z-U0037)
Ultra 1.55" Beadlock Wheels (Z-W0268)
Breaker 1.55" Beadlock Wheels (Z-W0273)
Tough Armor Competition Stinger Bumper for Trail Finder 2 (Z-S1857)
TRunner Classic 1.55'' Beadlock Wheels (Z-W0121)
RC4WD Type B Machine Front Winch Bumper for TF2 (Z-X0053)
Black Mesh 1.55" Beadlock Wheels (Z-W0103)
Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1923)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Black) (Z-W0281)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (White) (Z-W0284)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Chrome) (Z-W0285)
Deep Dish Wagon 1.55" Stamped Steel Beadlock Wheels (Clear) (Z-W0286)
Lotus 1.9" Aluminum Wheels (VVV-C0615)
Lotus 1.9" Aluminum Wheels (Wide Rear) (VVV-C0616)
Scale Steel Punisher Shaft (87mm - 110mm / 3.42" - 4.33") (Z-S1902)
Stocker 1.55" Internal Beadlock Wheels (Z-W0276)
Tango Down 1.9" Internal Beadlock Wheels (Black) (Z-W0038)
Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (White) (Z-W0288)
Vintage Yota 6 Lug Stamped Steel 1.55" Beadlock Wheels (Clear) (Z-W0289)
RC4WD 1985 Toyota 4Runner Hard Body Complete Set (Z-B0167)
Tough Armor Tube Winch Bumper for 1985 Toyota 4Runner (Z-S1904)
Inner Fender Set for 1985 Toyota 4Runner Hard Body (Z-S1950)
RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
Tango Down 1.9" Internal Beadlock Wheels (Gun Metal) (Z-W0297)
Six-Spoke 1.55" Internal Beadlock Wheels (Black) (VVV-C0806)
Six-Spoke 1.55" Single Internal Beadlock Wheel (Black) (VVV-C0807)
Six-Spoke 1.55" Internal Beadlock Wheels (Gold) (VVV-C0808)
Six-Spoke 1.55" Single Internal Beadlock Wheel (Gold) (VVV-C0809)
RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
RC4WD Rancho RS9000 XL Shock Absorbers 100mm (Z-D0079)
Front Shocks:
RC4WD King Off-Road Scale Dual Spring Shocks (70mm) (Z-D0037)
RC4WD 70mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0034)
Rear Shocks:
The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
RC4WD King Off-Road Scale Dual Spring Shocks (90mm) (Z-D0033)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
Instruction Manuals:
Click here to download.
|
|
|
 |
|
 |
|
|
|
tr4
