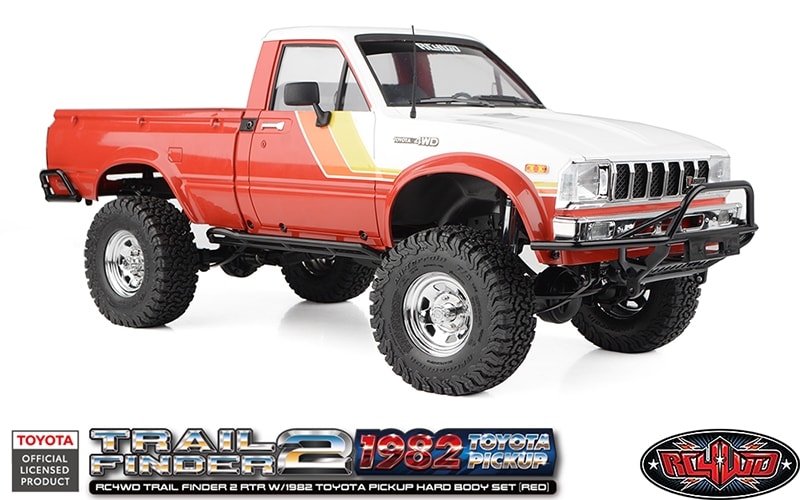

This is the all new Licensed RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) . This has been Officially Licensed by Toyota and is only available from RC4WD and our Dealers


The 1982 Toyota pickup truck, recognized for its timeless design, is now an exciting addition to the RC4WD 1/10 ready-to-run line-up!

This licensed RTR showcases the iconic '80s Toyota livery paint style found on full-size classic models of that era! Hit the showroom floor and open the hood to show off the 22R Engine Bay with painted parts and dress-up kit! Authentic scale details include metal emblems, fitted inner fenders, a molded interior, and a pre-installed led kit.

New suspension updates allow for better articulation out of the box, with the helper leaf springs and inner shock springs uninstalled but included for personal tuning! The shocks feature x-ring technology which reduces contact friction for smooth shaft movement while improving oil retention around the shock shaft.

The Trail Finder 2 chassis features years of trail testing and comes with innovative new features! An updated version of the Yota II front axle now includes upgraded XVDs. The leaf springs come installed under the axles, lowering the ride height and center of gravity for better stability while off-roading. The steering knuckles are improved for increased strength and durability.

Elevate your ultimate scale experience today with the impressive looks and performance of this 1/10 Toyota RTR!

1982 Toyota Pickup Hard Body
Yota 22R Engine Bay w/ Dress Up Kit
Led Basic Lighting System
Stamped Steel 1.7" Beadlock SR5 Wheels
BFGoodrich All Terrain K02 1.7" Scale Tires
The Ultimate Scale Shocks (60/80mm)
Yota II Ultimate Scale Cast Axles (XVD)
Super Soft Flex Leaf Springs
540 Crawler Brush Motor 45T
R3 Single Speed Transmission
Center Mounted Hammer Transfer Case
Twister High Torque Metal Gear Digital Servo
Outcry III Waterproof Esc
6-Cell 3000mAh NiMH Battery w/ XT60 Plug
Marlin Crawler Side Plastic Sliders V2
Rear Plastic Tube Bumper
Front Inner Fender Set
XR3 3- Channel 2.4Ghz Transmitter / Receiver Radio
Universal NiMH Peak Battery Charger


Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

Trail Finder 2 Chassis Features
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Wheels
Type: Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)
Hub: 12mm Hex
Width: 23mm (0.90")
OD: 47mm (1.85")

Tires
Type: RC4WD BFGoodrich All Terrain K02 1.7" Scale Tires
Outer Diameter: 91.4mm (3.59")
Width: 34.3mm (1.35")
Inner Diameter: 43.2mm (1.70")

Trail Finder 2 Truck Dimensions
Wheelbase: 284mm (11.2")
Width: 214mm (8.4")
Height: 203mm (8.0")
Ground Clearance: 45mm (1.8")
Final Drive Ratio: 31.9:1


DRIVETRAIN
The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.

The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.

Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale accurate axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles (XVD) feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.


SUSPENSION
The shocks feature X-ring technology which reduces contact friction for smooth shaft movement while improving oil retention around the shock shaft.

The Trail Finder 2 Chassis includes a set of RC4WD Ultimate Scale Shocks. These ultimate scale shock absorbers offer realistic looks and performance. They are machined from billet aluminum with internal springs and rebuildable internal parts!

With strength in mind, the ladder frame design of the Trail Finder 2 Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.

This truck includes a set of Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome) with Scale wheel hubs. The wheels are made from stamped steel and have a smooth silver finish for added detail.

Every RTR needs a tough set of tires to hit the trails and the included RC4WD BFGoodrich All Terrain K02 1.7" Scale Tires deliver the perfect amount of traction with its advanced X2S3 soft and sticky compound. The scale details complete the look in just the right size.


DETAILS
This 1982 Toyota Pickup model features an impressive display of scale details including mirrors, door handles, vents, front grille, and more!

The body is constructed of durable hard plastic with a classic shape that replicates the full-size model with accuracy and authenticity.

This 1982 Toyota Pickup features a fully molded 22R engine bay as well as a dress-up kit that brings out the details and makes this classic model stand out!

This 1982 Toyota Pickup interior cab features durable molded hard plastic that matches the full-size vehicle. Air vents, steering wheel, and shift knob are all present to show the realism! Go ahead and pack in your driver model to further enhance the look!

The preinstalled ultra-bright LED kit illuminates the trail and keeps the action going long after the sun sets! This blend of stunning realism and functionality is optimal for night adventures!


ELECTRONICS
Straight out of the box, an LED light set comes professionally installed and out of sight, keeping that realistic look.

The Trail Finder 2 Chassis is powered by the tough and durable RC4WD 45 Turn Crawler Motor. With long-lasting performance at its core, this power machine is tuned for rock climbing and scale driving!

Included is the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller, with built-in drag brake, for reliable constant power on demand at any time!

With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.

It's ALL in the box! Everything you need is provided to get you on the trails today!

What's Included:
1x RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red)

Replacement Parts:
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
RC4WD 1982 Toyota Pickup and Mojave II Chrome Front Grille Parts Tree (Z-B0002)
RC4WD Clear Lexan Windshield for Tamiya Hilux and RC4WD Mojave Body (Z-B0004)
RC4WD 1982 Toyota Pickup and Mojave II Rear Bed (Primer Gray) (Z-B0072)
RC4WD Mojave II Cab Back Panels and Grill Parts Tree (Primer Gray) (Z-B0074)
RC4WD Mojave II Chrome Bumper and Parts Tree (Z-B0076)
RC4WD 1982 Toyota Pickup and Mojave II Clear Parts Tree (Z-B0078)
RC4WD 1982 Toyota Pickup and Mojave II Dash and Wiper Parts Tree (Z-B0080)
RC4WD 1982 Toyota Pickup and Mojave II Rubber Mirror (Z-B0082)
RC4WD 1982 Toyota Pickup Cab (Z-B0259)
RC4WD 1982 Toyota Pickup Hood Parts (Z-B0260)
Trail Finder 2 Chassis Set (Z-C0018)
RC4WD Bilstein SZ Series Shock Absorbers (60mm) (Z-D0056)
RC4WD Bilstein SZ Series Shock Absorbers (80mm) (Z-D0058)
540 Crawler Brushed Motor 45T (Z-E0004)
RC4WD LED Basic Lighting System for 1982 Toyota Pickup/Mojave II (Z-E0006)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
RC4WD Universal NIMH Peak Battery Charger (Z-E0106)
Outcry III Waterproof ESC (Z-E0113)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
Leaf Spring Shackles & Mounts Kit (Z-S0047)
Scale Front Hub Installation Tool (Z-S0197)
RC4WD Front Inner Fender Set for 1982 Toyota Pickup (Z-S0256)
RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 V2 (Z-S0274)
M3 Mini Plastic Rod End (20x) (Z-S0398)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
RC4WD Rear Plastic Tube Bumper for Trail Finder 2 (Z-S0475)
RC4WD 101mm Hardened Steering Link (Z-S0504)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)
Trail Finder 2 Bumper Mounts (Z-S0593)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
RC4WD Marlin Crawler Front Winch Bumper w/Stinger for Trail Finder 2 V2 (Z-S0852)
RC4WD 1982 Toyota Pickup Hood Hinges (Z-S1010)
RC4WD AA Batteries (Z-S1718)
Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
Leaf Under Mounts for Yota 2 / K44 Axles (Z-S2135)
RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires (Z-T0107)
Hammer Transfer Case (1.47/1) (Z-U0024)
R3 Scale Single Speed Transmission (Z-U0028)
Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome) (Z-W0065)

Optional Parts:
K44 Ultimate Scale Cast Rear Axle (Z-A0096)
K44 Ultimate Scale Cast Front Axle (Z-A0101)
RC4WD Scale Bench Seat for 1982 Toyota Pickup/Mojave II (Z-B0032)
RC4WD Tightfit Truck Topper for the Mojave and Hilux Bodies (Z-B0047)
The Ultimate Scale Shocks 90mm (Silver) (Z-D0001)
The Ultimate Scale Shocks 70mm (Silver) (Z-D0004)
The Ultimate Scale Shocks 80mm (Silver) (Z-D0005)
RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
RC4WD 70mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0034)
RC4WD 80mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0036)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0038)
Super Scale 70mm White Shocks with Internal Springs (Z-D0045)
RC4WD Bilstein SZ Series 80mm Scale Shock Absorbers (Z-D0072)
RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
RC4WD Rancho RS9000 XL Shock Absorbers 80mm (Z-D0077)
RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
RC4WD Bilstein SZ Series 60mm Scale Shock Absorbers (Z-D0082)
RC4WD Bilstein SZ Series 70mm Scale Shock Absorbers (Z-D0083)
540 Crawler Brushed Motor 80T (Z-E0001)
540 Crawler Brushed Motor 65T (Z-E0002)
540 Crawler Brushed Motor 55T (Z-E0003)
540 Crawler Brushed Motor 45T (Z-E0004)
540 Crawler Brushed Motor 35T (Z-E0005)
RC4WD 1/10 Mini Warn 9.5cti Winch (Z-E0009)
LED Basic Lighting System For Mojave II 2/4 Door Body (Z-E0016)
RC4WD KC HiLiTES Daylighter Light Set V2 (Z-E0022)
RC4WD KC HiLiTES KC Light Set V2 (Z-E0036)
RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)
RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)
RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") (Z-E0055)
RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (100mm/4") (Z-E0059)
RC4WD 1/10 Baja Designs S8 LED Light Bar (100mm) (Z-E0064)
540 Crawler Brushed Motor 20T (Z-E0065)
RC4WD 1/10 Baja Designs Squadron Pro LED Lights (Z-E0066)
540 Crawler Brushed Motor 27T (Z-E0067)
RC4WD 1/8 Warn Zeon 10 Winch (Z-E0069)
RC4WD 1/10 Warn 8274 Winch (Z-E0075)
RC4WD ARB Intensity LED Light Set (Z-E0112)
Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
RC4WD 1/10 Warn 9.5cti-s Winch (Z-E0119)
Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
RC4WD KC HiLiTES Rectangle Lights with Covers (Z-E0132)
XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
#3 Aluminum Bumper Mount For Trail Finder 2 (Z-S0003)
#2 Aluminum Bumper Mount for Trail Finder 2 (Z-S0004)
#1 Aluminum Bumper Mount For Trail Finder 2 (Z-S0006)
Tough Armor Side Steel Sliders for Trail Finder 2 (Z-S0056)
King Kong Mini Tow Shackle (Z-S0075)
King Kong Tow Shackle (Z-S0093)
Scale Aisin/Yota Style Hubs (Z-S0196)
RC4WD Tough Armor Double Steel Tube Front Bumper for Trail Finder 2 (Z-S0273)
Truck Bed Mount Angled Spare Tire Carrier (Z-S0358)
RC4WD Tough Armor Double Steel Tube Rear Bumper for Trail Finder 2 (Z-S0477)
RC4WD Lettering Kit for Mojave and Tamiya Hilux/Tundra Bodies (Z-S0551)
3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
Red Super Soft Flex Leaf Springs (4) (Z-S0570)
Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
Big Boss Fender Flares for Tamiya Hilux and RC4WD Mojave Body (Z-S0590)
4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
RC4WD Lift Kit for 1982 Toyota Pickup/Mojave II (Z-S0682)
RC4WD Rebel Off Road Aluminum Hawse Fairlead (Z-S0702)
RC4WD Marlin Crawler Side Metal Sliders for Trail Finder 2 (Z-S0753)
RC4WD 1/10 Bed Mounted Tire Carrier (Z-S0759)
Tough Armor Front Tube Bumper w/Winch Mount for Trail Finder 2 (Z-S0765)
RC4WD Steel Roll Bar for 1982 Toyota Pickup/Mojave II (Z-S0771)
Anti Wrap Bar for Yota 2 Axles (Z-S0782)
Yota II Scale Diff Cover (Z-S0907)
RC4WD Billet Aluminum Fuel Cell Radio Box (Black) (Z-S1093)
RC4WD Adjustable Drop Hitch (Short) (Z-S1095)
Scale Steel Punisher Shaft V2 (90mm - 115mm / 3.54'' - 4.53'') (Z-S1118)
RC4WD Billet Aluminum Fuel Cell Radio Box (Red) (Z-S1122)
King Kong Tow Shackle (Orange) (Z-S1237)
RC4WD ARB Diff Cover For The Yota II Axle (Red) (Z-S1295)
RC4WD 1/10 Warn Hawse Polished Aluminum Fairlead (Z-S1310)
RC4WD 1/10 Warn Hawse Fairlead (Black) (Z-S1315)
RC4WD Marlin Crawler Rear Steel Tube Bumper for Trail Finder 2 (Z-S1373)
Super Scale Steel Leaf Springs for TF2 & Tamiya Bruiser (2) (Z-S1476)
RC4WD Marlin Crawler Roll Bar for Mojave Body (Z-S1478)
RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
RC4WD 1/10 Viking Roller Fairlead for Warn 9.5cti Winch (Z-S1498)
RC4WD Teraflex Revolver Z-Box for Trail Finder, F-350, Hilux, Tundra (Z-S1587)
RC4WD Teraflex Revolver Shackle (Z-S1594)
Motor Mount for R4 Transmission (Z-S1627)
Low Profile Delrin Transfer Case Mount for TF2 (Z-S1777)
RC4WD Marlin Crawler Front Winch Bumper w/Stinger for Trail Finder 2 (Z-S1789)
RC4WD Safari Snorkel for 1982 Toyota Pickup/Mojave II (Z-S1826)
Tough Armor Rear Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1827)
Tough Armor Rear Steel Tube Bumper w/Hitch Mount for Trail Finder 2 (Z-S1830)
Low Profile Delrin Skid Plate for Std. TC (TF2) (Z-S1851)
Hitch Mount for RC4WD TF2 (Z-S1870)
Trail Finder 2 Aluminum Side Body Posts (Z-S1882)
Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1923)
RC4WD Rancho Diff Cover for Yota II Axle (Z-S1924)
RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
RC4WD Double Steel Tube Headache Rack for 1982 Toyota Pickup/1987 XtraCab and Mojave II (Z-S2140)
Mud Thrashers 1.9" Scale Tires (Z-T0051)
Scrambler Offroad 1.55" Scale Tires (Z-T0152)
RC4WD Goodyear Wrangler Duratrac 1.55" 4.19" Scale Tires (Z-T0177)
RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires (Z-T0225)
RC4WD Center Line 1.55" Scorpion Deep Dish Wheels (Z-W0014)
RC4WD XD 1.7" XD849 Grenade 2 Deep Dish Beadlock Wheels (Z-W0041)
RC4WD Warn 1.7" Epic Jack Hammer Wheels (Z-W0086)
RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
RC4WD Fuel Off-Road Maverick 1.9" Beadlock Wheels (Z-W0200)
RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
RC4WD Fuel Off-Road 1.55” Zephyr Beadlock Wheels (Gunmetal) (Z-W0333)
RC4WD Type B Machine Front Winch Bumper for TF2 (Z-X0053)

Instruction Manual:
Click here to download.

Press Information:
Click here to download.

Optional Colors:
RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)

Notes:
Please note that these truck bodies are hand-painted, so minor blemishes, differences, or imperfections may occur
While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.

Toyota is a registered trademark of the Toyota company. The Toyota logo is property of Toyota and used under license to RC4WD.
