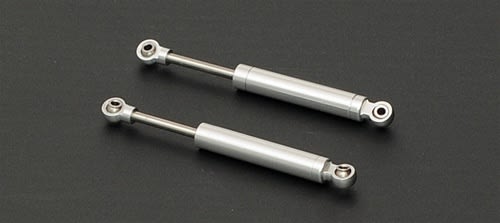

At 9mm OD, this is the most Scale and precision made Suspension Shocks Available on the market. Along with our next gen fine tuned super soft internal Springs.
Note:
These shocks do not use oil. Use a small amount to keep the shaft lubricated only.
Shocks have very small threads on the shock cap. You can easily install the cap wrong and cause the threads to strip. Please pay careful attention when removing and installing the shock cap.
CNC Machined
Billet Aluminum
Heat Treated
Ball Width: 0.25in / 6.45mm
Ball Lip OD: 0.19in / 4.8mm
Ball Inner OD: 0.12in / 3.1mm
Hole to Hole (Compressed): 2.68in / 68mm
Hole to Hole (Uncompressed): 3.66in / 90mm
Overall Length: 3.94in / 100mm
Travel Length: 0.94in / 24mm
Shock Body OD: 0.35in / 8.8mm
Shaft OD: 0.12in / 3mm
Each Weight: 0.40oz / 11g
|
rc4wd the ultimate scale shocks
