RC4WD Baja Designs Arc Light Bar for Chevrolet Blazer

RC4WD Baja Designs Arc Light Bar for Chevrolet Blazer

More Photos:


RPP Price: $51.99
DISCONTINUED

STOCK STATUS:
Out of Stock


Free Shipping
Part Number: RC4Z-E0115
Qty:

Description


RC4WD has teamed up with Baja Designs to offer this awesome Baja Designs Arc Light Bar for Chevrolet Blazer to the scale community. This is only available from RC4WD and our Dealers. This light bar will be sure to brighten any project.

Specifications:
Cast Molded Housing
Reversible "L" Brackets to Fit Many Applications
Adjustable "L" Brackets for Rotating Light
27 Individual LED Bulbs
Super Bright Lighting
Vented on Side to Dissipate Heat
Capable of 11.1 Volts and 7.4 Volts
Standard Receiver Plug
Connects to Extra Channel on Receiver
2mm Mounting Holes
Overall Length: 6.94in / 176.3mm
Light Bar Width: 6.23in / 158.3mm
Overall Height: 0.57in / 14.5mm
Light Bar Height: 0.31in / 8.0mm
Weight: 1.14oz / 32.4g

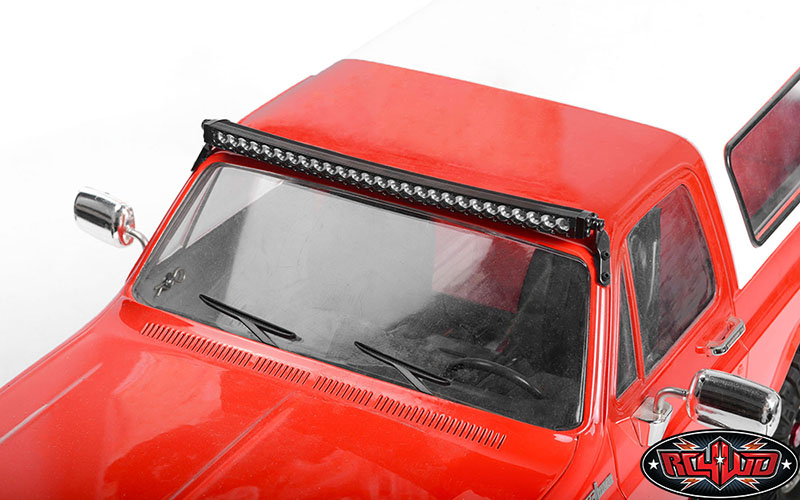

Shown installed on RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Limited Edition) (Shown painted Red) (Z-RTR0035) for example (Not Included)



What's Included:
1x Baja Designs Arc Light Bar for Chevrolet Blazer
4x M2 x 8mm Steel Button Head Cap Screws (Black)
4x Nylock Nuts M2 (Black)
1x Baja Designs Decal Sheet

Replacement Hardware:
Steel Button Head Cap Screws M2 x 6mm (Z-S0933)
Steel Button Head Cap Screws M2.5 x 6mm (Z-S0764)
Steel Button Head Cap Screws M2 x 8mm (Z-S1800)
Nylock Nuts M2 (Black) (Z-S0906)

Notes:
Fits RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Limited Edition) (Z-RTR0035)
WARNING: This light comes with a voltage regulator. If you do not use this you will damage the light and void the warranty.
WARNING: Do not exceed 8.4 Volts to power this light bar. Overpowering the light bar will damage it and will void the warranty.
Voltage over 11.1V will damage the light bay.

Baja Designs is a registered trademark of the Baja Designs Inc. The Baja Designs logo is property of Baja Designs Inc.
