RC4WD Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo

RC4WD Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo

More Photos:
RPP Price: $74.99

STOCK STATUS:
 In Stock!


Part Number: RC4Z-E0125
Qty:

Description


Specifications:
Dimensions: 1.57*0.78*1.65in / 40*20*42mm
Weight: 2.97oz / 84.3g
Speed: 0.10sec/60° (@6.0V)
Stall Torque: 528oz·in / 38kg·cm (@6.0V)
Speed: 0.09sec/60° (@7.4V)
Stall Torque: 651oz·in / 47kg·cm (@7.4V)
Stall Current: 4-5A (@6.0V), 5-6A (@7.4V)
Idle Current: 60mA (@6.0V), 70mA (@7.4V)
Operating Voltage: 4.8-7.4V
Control Method: PWM
Pulse Width: 500~2500 µsec
Servo Wire Length: 12.6in / 320mm
Center Case: Aluminum
25t Spline Servo Arm
Servo-motor Lock-rotor Protection
High Efficiency, Low Power Consumption
Metal Gears Ensure Long Life and Durability
Waterproof

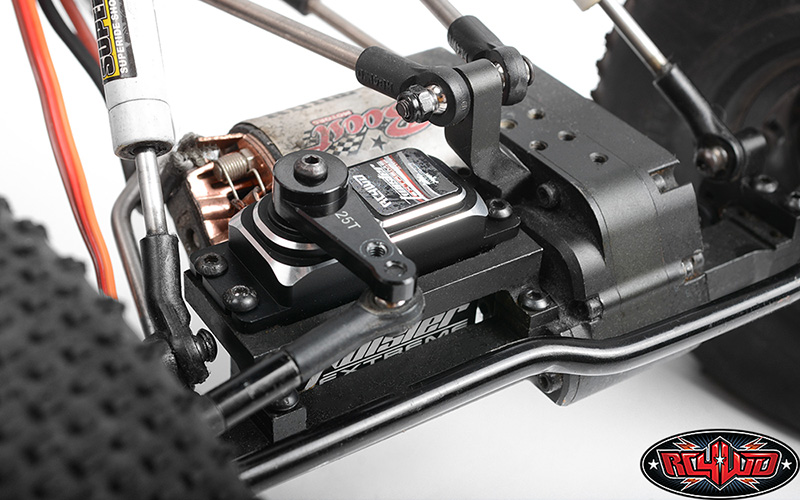

Shown installed on RC4WD Bully II MOA RTR Competition Crawler (Z-RTR0027) for example (Not Included)

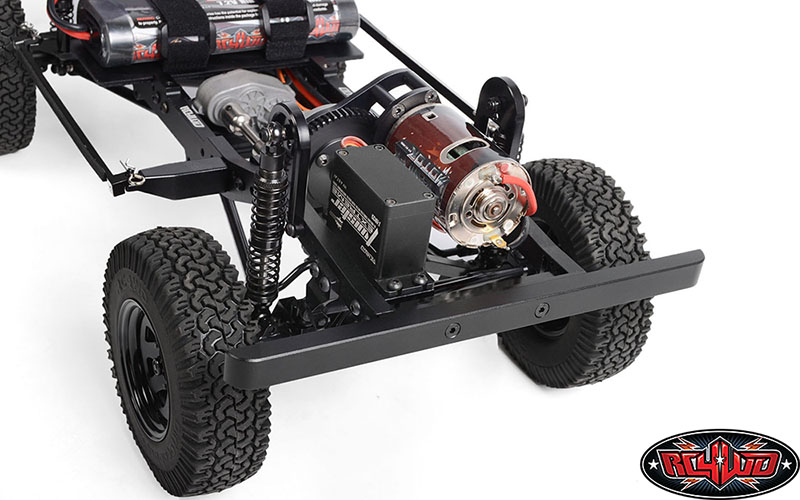

Shown installed on RC4WD Gelande II RTR for example (Not Included)

What's Included:

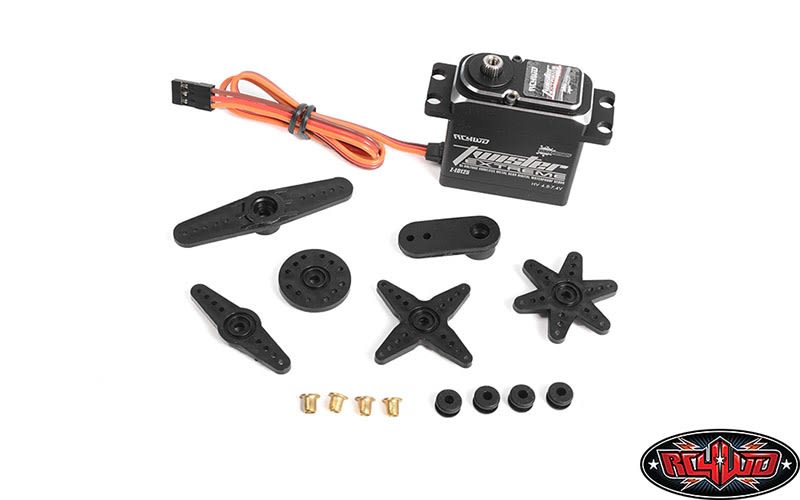

1x Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo
6x Servo Arms
4x Brass Mount Bushings
4x Rubber Mounting Tabs
4x M2.3 x 10mm Cross Head Cap Self Tapping Screws (Silver)
1x M3 x 6mm Cross Head Cap Screws (Black)

Notes:
Fits RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body (Z-RTR0042)
Fits RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (BFGoodrich 150th Anniversary Edition) (Z-RTR0102)
Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (BFGoodrich 150th Anniversary Edition) (Z-RTR0101)
Fits RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition) (Z-RTR0043)
Fits RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Heritage Edition) (Z-RTR0044)
Fits RC4WD Carbon Assault 1/10th Monster Truck w/ Manticore Lexan Body Set (Z-RTR0041)
Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Midnight Edition) (Z-RTR0054)
Fits RC4WD Cross Country Off-Road RTR W/ 1/10 Black Rock Four Door Body Set (Z-RTR0046)
Fits RC4WD Bully II MOA RTR Competition Crawler (Z-RTR0027)
Fits RC4WD Beast II 6x6 Truck RTR (Z-RTR0028)
Fits RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029)
Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
Fits RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Limited Edition) (Z-RTR0035)
Fits RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
Fits RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045)
Fits RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
Fits RC4WD Beast II 6x6 Truck Kit (Z-K0052)
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Fits RC4WD Trail Finder 2 Truck Kit (Z-K0054)
Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
Fits RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base Chassis Kit (Z-K0059)
Fits RC4WD Gelande II Truck Kit "LWB" 1/10 Chassis Kit (Z-K0061)
Fits RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)
