Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the TF2 RTR. Part scale truck, part adventurer, your TF2 RTR is ready for your mud kicking trail-loving lifestyle!

The TF2 RTR has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 RTR. Performance of the TF2 RTR is smooth and with its single speed transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 RTR is truly a work of art in both appearance and performance.

Every TF2 RTR is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The TF2 RTR.

Your adventure awaits....

Yota II Ultimate Scale Cast Axles
Custom Designed for True to Scale Looks
Twister High Torque Metal Gear Digital Servo
Chassis Mounted Steering Servo
540 Crawler Brushed Motor 45T
Super Soft Flex Leaf Springs For TF2
Interco IROK 1.7'' Scale Tires
R3 Single Speed Transmission
Realistic Aluminum Ladder Frame Chassis
Center Mounted Realistic 4x4 Transfer Case
Outcry II Waterproof ESC
Plastic Fuel Cell Receiver Box
Superlift Superide 80MM Shock Absorbers
TRO 1.7" Stamped Steel Beadlock Wheels
6-Cell 3000MAH NiMH Battery Pack
NiMH Peak Battery Charger




Hammer Transfer Case
Ratio: 1.47: 1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios Pinion/Spur 14/64 = 4.57:1
Internal Ratio = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67: 1
Width at Hex: 180.5mm

TF2 Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Very Durable High Quality Steel Yokes

Wheels
Name: TRO 1.7" Stamped Steel Beadlock Wheels
Hub: 12mm Hex
Width: 25mm
OD: 50mm
Features: Stamped Steel, Aluminum Hubs, Internal Beadlock, Very Scale Looking, 6 Lug Design

Truck Dimensions
Wheelbase: 287mm (11.3")
Width: 512mm (20")
Height: 230mm (9")
Ground Clearance: 72mm (2.83")
Final Drive Ratio: 31.9:1
Weight: 6.45Lbs/2.93Kg



DRIVETRAIN
The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The TF2 RTR includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and the same heavy duty .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the TF2 RTR Drivetrain has the most durable gears RC4WD has to offer so the TF2 RTR will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the TF2 RTR are designed with heavy duty metal uni-joints with tough plastic shafts for great driveline angles and durability on the trails.



SUSPENSION
The TF2 RTR Chassis features a molded fuel cell that doubles as an electronics storage box. There is also an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options!

The TF2 RTR includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The TF2 RTR Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts for maximum strength. Optional 4-link conversion is available on our store site.

The TF2 RTR includes a set of TRO 1.7" Stamped Steel Beadlock Wheels in a beautiful red anodized finish with chrome details. These steel stamped wheels with CNC machined parts offer amazing details in the popular 6 lug design.

Every TF2 RTR needs a tough set of tires and the included Interco IROK 1.7" Scale Tires provide just that! These tires are known for handling rocks, mud snow and whatever else you can throw at it with its durable advanced X2SS soft & sticky compound.



DETAILS

The TF2 Marlin Crawler Body Set includes pre-painted wipers, mirror, light details and door handles for ultimate in scale looks. Realistic dashboard decals come pre-installed.

The unmistakable lines of a classic. The TF2 Marlin Crawler Body Set is an exact replica of the full scale vehicle. No other scale body comes this close to realism.

The TF2 Marlin Crawler Body Set includes a great dropped bed molded directly into the body. Pre-painted black, it’s perfect for carrying all your scale accessories or spare wheel and tire.
The crisp lines and bold details are all captured. Chrome plated parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with minimum modifications.



ELECTRONICS

The TF2 RTR includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control a winch and add even more fun to your scale adventure!

The TF2 RTR is powered by the RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you’re sure to get where you’re going!

The TF2 RTR features the popular RC4WD Outcry II Waterproof ESC Brushed Speed Controller with built-in drag brake for reliable, constant power on demand. Anytime.

A great truck needs a great servo to get you out of those tough spots and the TF2 RTR features the Twister. A high torque metal gear digital servo to handle all your steering duties.

Its ALL in the box. Everything you need is provided to get you on the trails today!

What's Included:

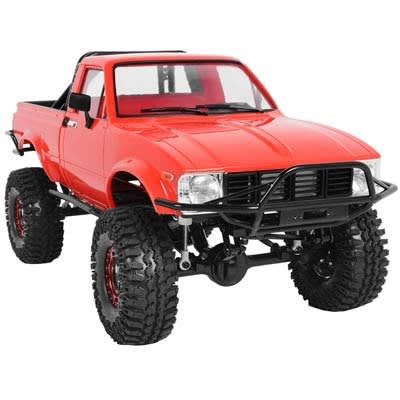

1x RC4WD Marlin Crawlers Trail Finder 2 RTR w/Mojave II Crawler Body Set

Replacements Parts:
Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
R3 Single Speed Transmission Mounts (Z-S0802)
Aluminum Bumper Mount For Trail Finder 2 (Z-S0006)
TF2 Long Drive Shaft Coupling for R3 Single Speed (Z-S0898)
Hammer Transfer Case (1.47/1) (Z-U0024)
Drag Link for Yota II (101mm/3.98in) (Z-S1836)
R3 Scale Single Speed Transmission (Z-U0028)
Super Soft Flex Leaf Springs for TF2 (Z-S1815)
Fuel Cell Radio Box (Z-S0592)
Trail Finder 2 Plastic Body Posts (Z-B0029)
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
XVD Axle for Ultimate Scale Yota II G2 Axle (Z-S0823)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
RC4WD Marlin Crawlers Rear Plastic Tube Bumper for Trail Finder 2 (Z-S0595)
M3 Mini Plastic Rod End (Z-S0398)
M3 Offset Short Plastic Rod End (Z-S0401)
RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
Leaf Spring Shackles & Mounts Kit (Z-S0047)
RC4WD Marlin Crawlers Side Plastic Sliders for Trail Finder 2 (Z-S0596)
RC4WD Marlin Crawlers Roll Bar for Mojave Body (Z-S1478)
RC4WD Marlin Crawlers Front Winch Bumper w/Stinger for Trail Finder 2 (Z-S1789)
Ultra Punisher Shafts (Z-S1811)
Low Profile Delrin Transfer Case Mount for TF2 (Z-S1777)
Heavy Duty Nylon Strap Lock (Z-S0552)
540 Crawler Brushed Motor 45T (Z-E0004)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
Outcry II Waterproof ESC (Z-E0089)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
RC4WD AA Batteries (Z-S1718)
RC4WD NiMH Peak Battery Charger (Z-E0092)
RC4WD Marlin Crawler Decal Set for Mojave Body (Z-B0145)
TRO 1.7" Stamped Steel Beadlock Wheels (Red/Chrome) 24 (Z-W0225)

Replacement Hardware:
Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
Steel Button Head Cap Screws M3 x 22mm (10) (Z-S0658)
Steel Flat Head Socket Cap Screw M3 x 6mm (10) (Z-S0648)
Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)
M3 Driveshaft Screw Pin (5) (Z-S0804)
Leaf Spring Shoulder Screws (Black) (Z-S0275)
2mm Black Spacer with M3 Hole (10) (Z-S0600)
3mm Black Spacer with M3 Hole (10) (Z-S0806)

Optional Parts:
Trail Finder 2 V8 Engine Mounts (Z-S1239)
RC4WD Skid Plate for Trail Finder 2 V8/R4 (Z-S1488)
RC4WD Rock Krawler Replacement 3/4 Link kit for Trail Finder 2 (Z-S1486)
Scale Bench Seat for Mojave Body (Z-B0032)
Scale Plastic Driver Figure (Z-S0190)
4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
XVD Axle for Ultimate Scale Yota TF2 Axle (Z-S0342)
Scale Aisin/Yota Style Hubs (Z-S0196)
RC4WD Marlin Crawlers Front Steel Tube Bumper for Trail Finder 2 (Z-S0778)
Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579)
RC4WD Marlin Crawlers Side Metal Sliders for Trail Finder 2 (Z-S0753)
RC4WD Marlin Crawlers Rear Tube Bumper for Trail Finder 2 (Z-S0767)
Scale Steel Punisher Shaft (100mm - 130mm / 3.94" - 5.12") 5mm (Z-S0209)
LED Basic Lighting System For Mojave Body Set (Z-E0016)
Mojave Body Lift Kit for Trail Finder 2 (Z-S0682)
K44 Ultimate Scale Front Axle (Z-A0048)
K44 Ultimate Scale Rear Axle (Z-A0049)
RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
RC4WD 80mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0036)
The Ultimate Scale Shocks 80mm (Silver) (Z-D0005)
RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)
RC4WD 90mm Old Man Emu Nitrocharger Sport Shocks by ARB (Z-D0038)
RC4WD Mickey Thompson 1.55" Baja MTZ P3 Scale Tires (Z-T0058)
RC4WD Mickey Thompson 1.55" Baja Claw TTC Scale Tires (Z-T0064)
RC4WD Interco IROK 1.55" Scale Tires (Z-T0056)
Front Hood and Window Deflector Set for Mojave and Hilux Bodies (Z-S1377)
RC4WD Marlin Crawlers Rear Steel Tube Bumper for Trail Finder 2 (Z-S1373)
Single Rear Shock Mount for Trail Finder 2 (Z-S0768)
RC4WD N-Fab N-Durastep for Trail Finder 2 (Z-S1615)
RC4WD Warn Rock Crawler Rear Bumper for Trail Finder 2 (Z-S1561)
2 Speed Transmission Conversion Kit for Trail Finder 2 (Z-S1690)
RC4WD 1/10 Mini Warn 9.5cti Winch V2 (Z-E0009)
RC4WD 1/10 Warn 8274 Winch (Z-E0075)
RC4WD 1/10 Warn 9.5cti-s Winch (Z-E0119)
RC4WD 1/8 Warn Zeon 10 Winch (Z-E0069)
XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
Twister Ultimate High Performance Waterproof Servo (Z-E0063)
Outcry Crawler Speed Controller ESC with TurboBEC (Z-E0007)
T-Runner Classic 1.9'' Beadlock Wheels (Z-W0250)
Gold Mesh 1.9" Beadlock Wheels (Z-W0251)
Roll Bar/Roof Rack w/Lightbar Frame for TF2 Mojave Body (VVV-C0295)
Roll Bar/Roof Rack w/Lightbar Frame and Front IPF Lights for TF2 Mojave Body (VVV-C0296)
Steering Guard for Trifecta Front Bumper (VVV-C0400)
Malice Mini Roof Rack for Mojave II Body Set (VVV-C0424)
Malice Mini Roof Rack w/Lights for Mojave II Body Set (VVV-C0425)
Metal Rear Emblem for TF2 Mojave Body (White) (VVV-C0290)
Metal Vintage Rear Emblem for TF2 Mojave Body (White) (VVV-C0291)
Metal Rear Emblem for TF2 Mojave Body (Black) (VVV-C0292)
Metal Vintage Rear Emblem for TF2 Mojave Body (Black) (VVV-C0293)
Steel Rear Bumper for RC4WD Trail Finder 2 (Style A) (VVV-C0208)
Steel Rear Bumper for RC4WD Trail Finder 2 (Style B) (VVV-C0212)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round Lights) (VVV-C0211)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Standard) (VVV-C0206)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella and IPF Round Lights) (VVV-C0209)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Double Hella Round Lights) (VVV-C0213)
Rough Stuff Limited Edition Red Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round and IPF Square Lights) (VVV-C0215)
Rough Stuff Metal Front Bumper for RC4WD Trail Finder 2 (Hella Round and IPF Square Lights) (VVV-C0219)

Instruction Manual:
Click here to download

Items of Interest: (not required for completion)
Grease and Lubrication (Z-S1199)(Z-S1197)
Double Sided Tape for ESC (Z-S0935)(Z-S0934)

Notes:
While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Do not over tighten screws, otherwise you may strip the thread.
