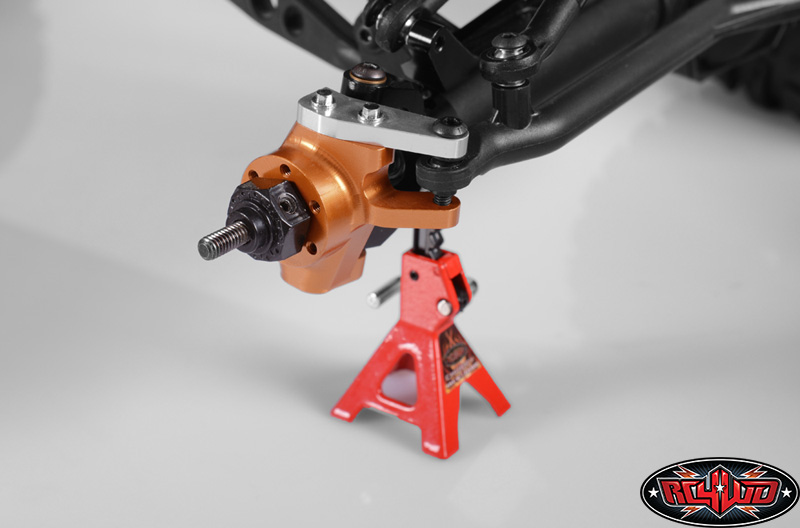

All new Scale design Steering Knuckles.
Specifications:
CNC Machined
Orange Anodized
Removable Steering Support Bar
Weight: 0.91oz / 26g

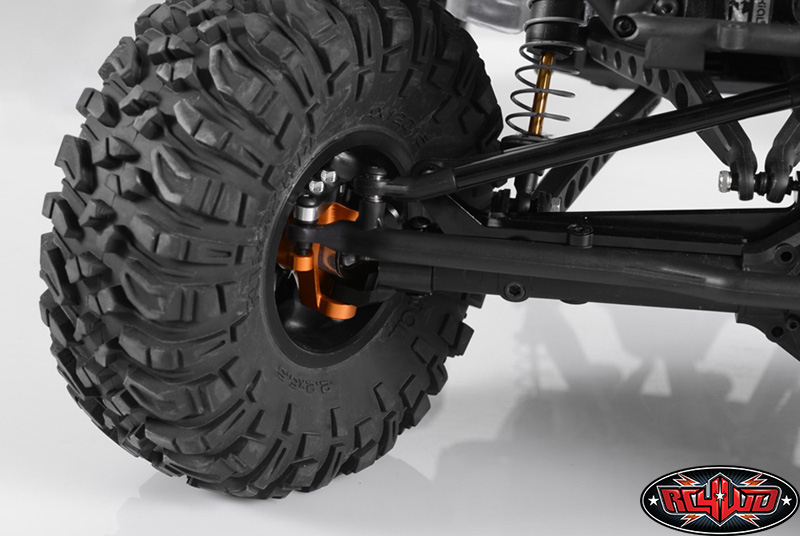

Shown installed in Axial Wraith using for example (Not Included)
What's Included:
1x Left D44 Steering Knuckles (Orange)
1x Right D44 Steering Knuckles (Orange)
1x Left Arm (Silver)
1x Right Arm (Silver)
4x M3 x 8mm Silver Scale Hex Bolts (Z-S0695)
1x Miniature Scale Hex Bolt Tool for M2.5 & M3 Scale Bolts (2.5mm Hex) (Z-S0635)
2x 2mm Black Spacer (Z-S0600)
2x 1mm Black Spacer (Z-S0809)
Optional Parts:
XVD Shafts for D44 Wide Front Axle (Wraith Width) (Z-S1020)
D44 Panhard Mount for Wraith CMS (Wraith Width) (Z-S1074)
D44 Wide Front Axle Upper Link Mount (Wraith Width) (Z-S1028)
XVD Axle Shafts for D44 Narrow Front Axle (SCX10 Width) (Z-S0989)
D44 Panhard Mount for SCX10 CMS (SCX10 Width) (Z-S1071)
2x 12mm Hexes (Z-S0238)
4mm Lock Nuts (Z-S0620)
Notes:
Fits RC4WD D44 Wide Front Axle (Wraith/AR60 Width)
Fits RC4WD D44 Narrow Front Axle Only (SCX10 Width), these do not fit Axial SCX10 Axles.
Instruction Manual:
Detailed Assembly Click Here to download.
This product has been tested and approved by the Recon G6. It is Recon G6 Certified.
|
|
|
