Specifications:
CNC Machined
Billet Aluminum
Fits Standard 12mm Hex
Wheel Size: 1.7"
OD: 1.87in / 47.4mm
Width: 0.87in / 22.0mm
Center Hole OD: 0.20in / 5.2mm
Negative Offset: 0.36in / 9.2mm
Each Weigh: 1.66oz / 46.9g

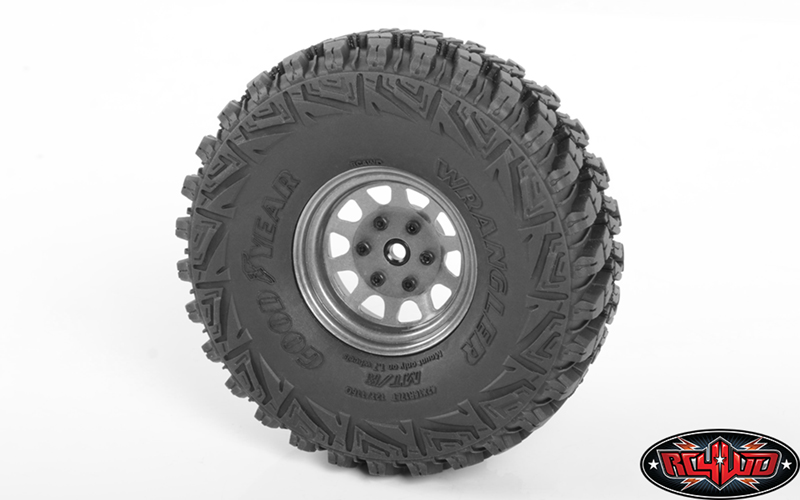

Shown installed with RC4WD Goodyear Wrangler MT/R 1.7" Scale Tires (Z-T0157) for example (Not Included)

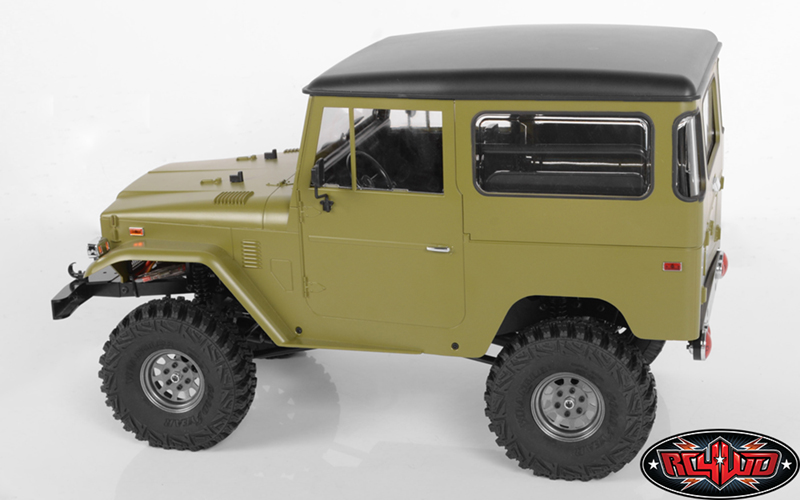

Shown installed on RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051) with RC4WD Goodyear Wrangler MT/R 1.7" Scale Tires (Z-T0157) for example (Not Included)


What's Included:
4x Stamped Steel 1.7" Beadlock Wagon Wheels (Clear)

Optional Colors:
Stamped Steel 1.7" Beadlock Wagon Wheels (White) (Z-W0269)
Stamped Steel 1.7" Beadlock Wagon Wheels (Chrome) (Z-W0271)

Replacement Hardware:
Steel Socket Head Cap Screws M2 X 6mm (Z-S0611)

Notes:
Fits RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029)
Fits RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
Fits RC4WD Gelande II Truck Kit w/Defender D90 Body Set (Z-K0001)
Fits RC4WD Gelande II RTR Truck Kit w/Defender D90 Body Set (Z-RTR0031)

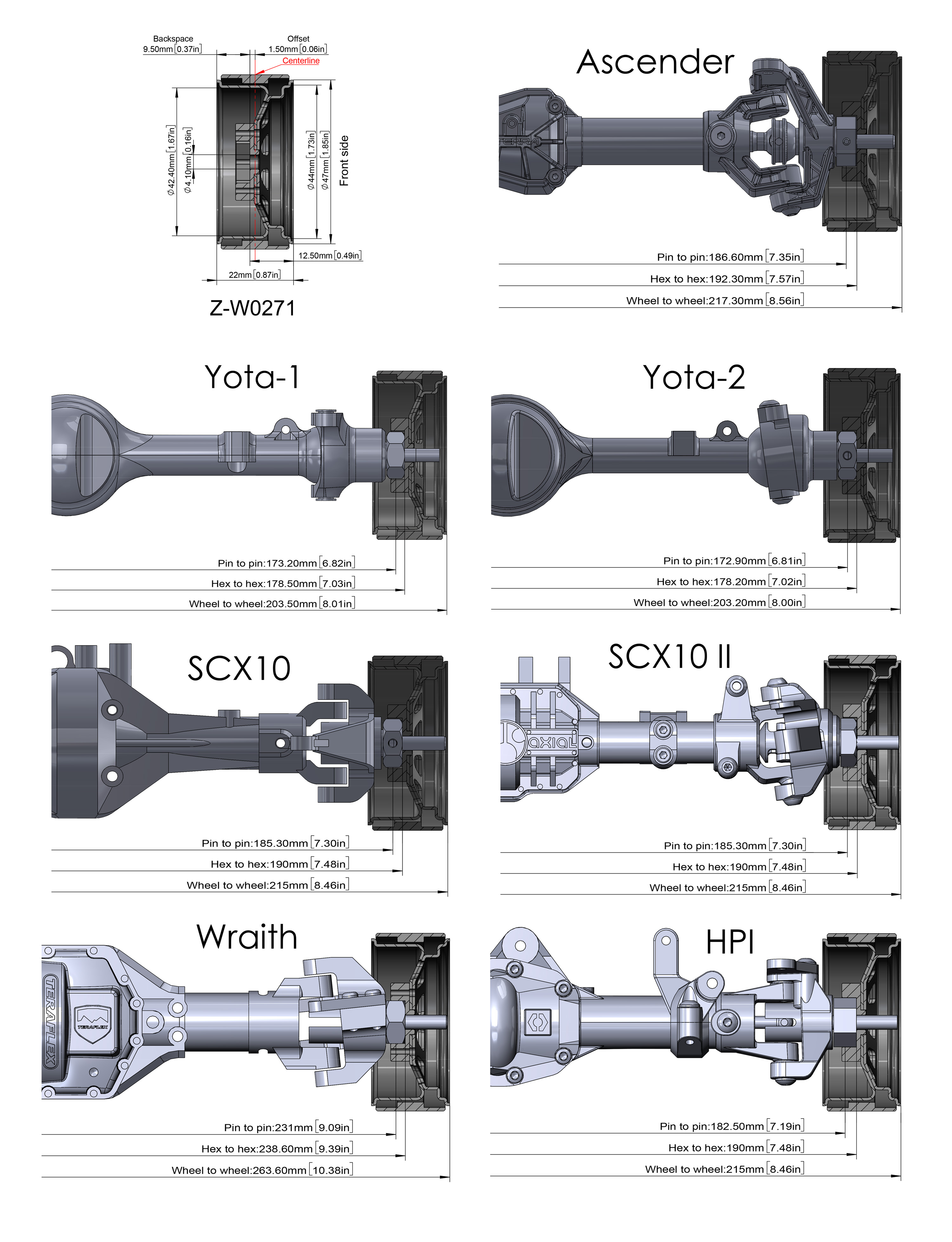

Fits Axial SCX10
Fits Axial SCX10 II
Fits Vaterra Ascender
Fits HPI Venture FJ Cruiser
Fits Axial Wraith
Due to many different methods to design tires and wheels, we have no control over other manufacturers products, so we can only tell you that RC4WD tires and wheels work together. In some cases, our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome.
