REEFS RC Beast 2000 5th Scale Servo

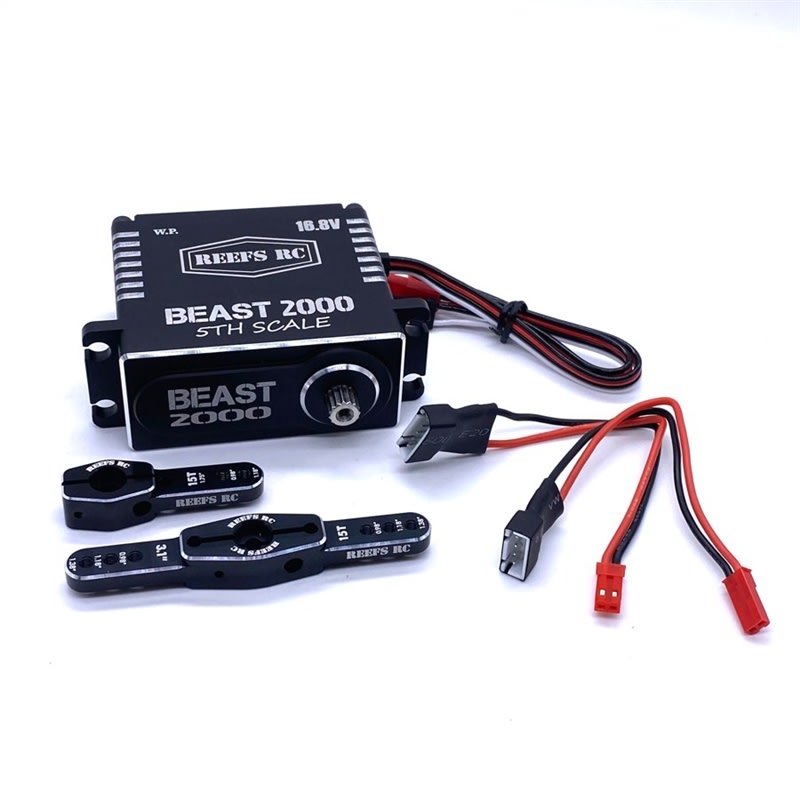

REEFS RC Beast 2000 5th Scale Servo

More Photos:
RPP Price: $449.99

Note: Coupon discounts not available

STOCK STATUS:
 In Stock!

Free Shipping
Part Number: REF-S103
Qty:

Description

High Torque High Speed Brushless Servo

Includes:
REEFS SINGLE HORN / REEFS DOUBLE HORN / 3S & 4S CONNECTOR

SUBMARINE WATERPROOF: 7 Point Seals

Features:
Magnetic Angle Sensor
Pulse Width Modulation Control
Voltage 7.4V - 16.8V
Mechanical Angle: No Limit
Internal: Steel Gears / All CNC Aluminum Casing
Bearing Type: 5 Ball Bearings /
Weight: 10oz / 285g / Wires: 22AWG
Dimension: 2.59 x 1.18 x 2.32 (LWH)
Torque: 1000oz @ 10v/ 1250oz @11.1v/ 1450oz @12v / 2000oz @ 16.8v
Speed: .10sec @10v/.11sec @11.1v/.10sec @12v/ .09sec @ 14.4v / .08sec @ 16v
Spline: 15T / Dead Band Width: 2uSec

Hardware Included:
(1) Servo Horn Screw 3.5x8mm
(3) 3x16mm Cap Head Screws for end of horns.
(4) 2mm Horn Clamping Cap Head Screws

Load Current:
7700 mA @ 10.0V
8300 mA @ 11.1V
9200 mA @ 12.0V
10600 mA @ 14.4V
11000 mA @ 16.0V

Unload Current:
950 mA @ 10.0V
1000 mA @ 11.1V
1060 mA @ 12.0V
1200 mA @ 14.4V
1300 mA @ 16.0V
