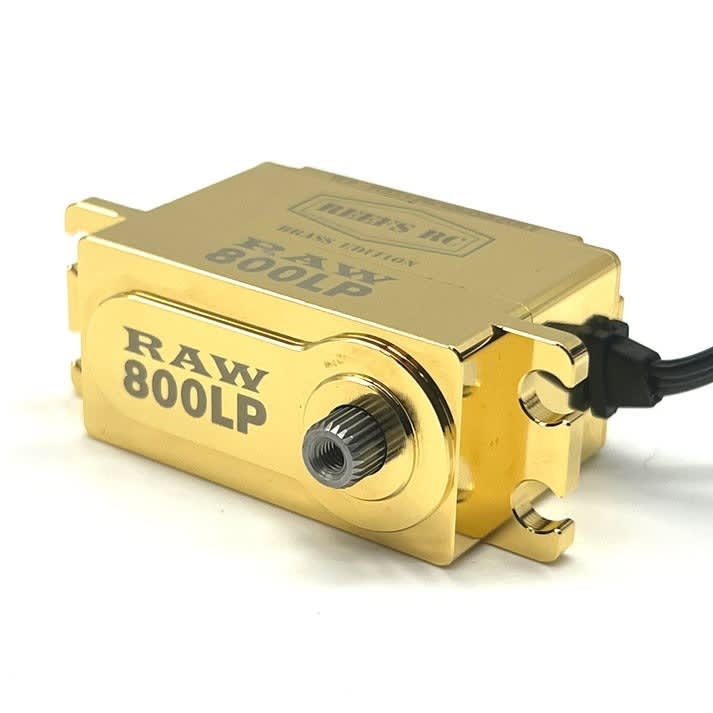

REEFS RC Raw 800 LP High Torque HV Waterproof Brushless Programmable Servo - Brass Edition

REEFS RC Raw 800 LP High Torque HV Waterproof Brushless Programmable Servo - Brass Edition

More Photos:
RPP Price: $199.99

Note: Coupon discounts not available

STOCK STATUS:
 In Stock!

Free Shipping
Part Number: REF-S160
Qty:

Description

Reef's RC Raw 800 LP Low Profile High Torque HV Waterproof Brushless Programmable Servo - Brass
High Torque High Speed
4 POLE - Brushless

Specifications:
SUBMARINE WATERPROOF: 7 Point Seals
Magnetic Angle Sensor
Voltage 4.8V - 8.4V
REEFS LINK required for Programming (Optional)
Internal: Steel Gears
CNC Aluminum Casing
Bearing Type: 2 Ball Bearings
Weight: 2.3oz / 66gm
Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
Spline: 25T / Dead Band Width: 2¦Ìs
BEC Not Req. Recommended for max performance
Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 Write a review.

Recommended Accessories
REEFS RC USB Link
RPP Price: $25.99

Add Free Shipping
REEFS RC USB Link


  0 of 0 people found the following review helpful:

5 of 5 Rpp shipped super fast February 5, 2024
Reviewer: Keldon Derrick from Springfield , OR United States
Rpp shipped this super fast. However I am unimpressed with the servo, I don't have a way to formally test it but I can say it's weaker than a A81BHMW which according to its data sheet should be much weaker.
