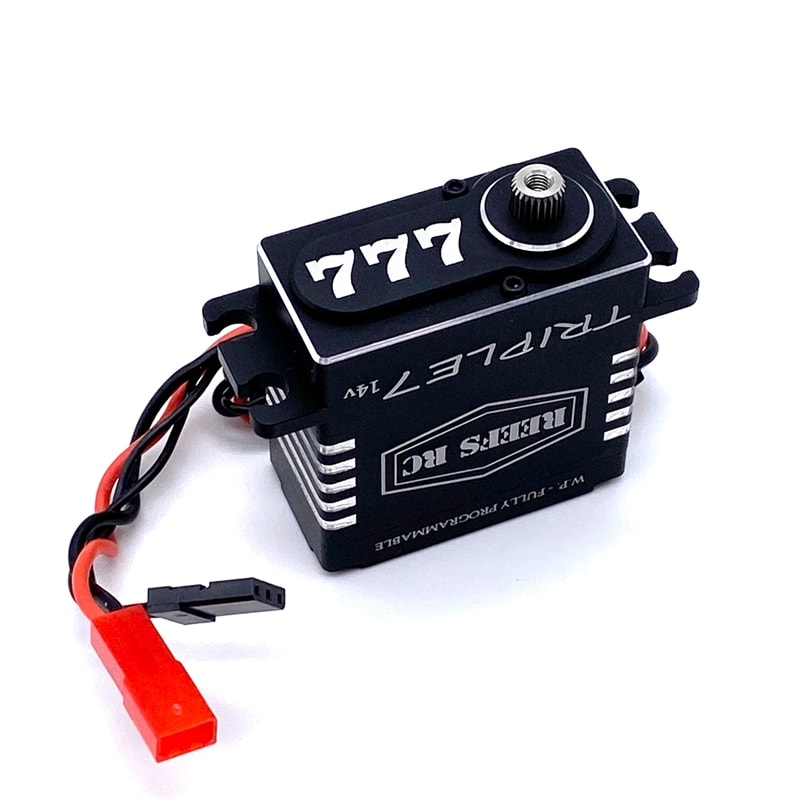

REEFS RC Triple7 14v Waterproof High Torque High Speed Brushless Crawler Servo

REEFS RC Triple7 14v Waterproof High Torque High Speed Brushless Crawler Servo

More Photos:
RPP Price: $157.77

Note: Coupon discounts not available

STOCK STATUS:
 In Stock!

Free Shipping
Part Number: REF-S777
Qty:

Description

The all new Triple 7 "777" 14 Volt Fully Programmable Servo by REEFS RC is built from the ground up using the new Patented REEFS RC CNC Case and features full parameter controls via REEFS Software (available free at reefsrc.com). Utilizing the REEFS USB Link (sold seperately) customers will have the ability to increase output power, adjust the servo angle, sensitivity, inversion and so much more with the click of a button. JST connectors for 2s and 3s (sold separately) give you the ability to run your battery of choice, without relying on your ESC for power. The new Triple7 14v is the only direct-battery-servo with programming abilities on the market!

WARNINGS:
DO NOT USE OVER 14 VOLTS. YOU WILL VOID YOUR WARRANTY.
DO NOT leave servo plugged into battery when not operating RC. Always turn the RC car off first, remote second, then unplug battery last.


FEATURES:
SUBMARINE WATERPROOF: 7 Point Seals
Magnetic Angle Sensor
Pulse Width Modulation Control
Fully Programmable with free REEFS Software
REEFS USB LINK required for Programming

SPECIFICATIONS:
Voltage: 10V - 14V
Internal: Steel Gears
External: All CNC Aluminum Casing
Bearing Type: 3 Ball Bearings
Weight: 3.12oz
Dimension: 1.57" x 0.78" x 1.63" (LxWxH)
Torque: 666oz @11.1v/ 700oz @12.0v/ 777oz @14v
Speed: .10sec @11.1v/.09sec @12.0v/.08sec @14v
Spline: 25T
Dead Band Width: 2¦Ìs

REQUIRED:
2S LiPo Connector, REF-S61 or 3S LiPo Connector, REF-S62
8mm Screw Required for Horn
Average Customer Review: Average Customer Review: 4.5 of 5 4.5 of 5 Total Reviews: 6 Write a review.

Recommended Accessories
REEFS RC 3S LiPo Connector
RPP Price: $4.29

Add Free Shipping
REEFS RC 3S LiPo Connector
REEFS RC 2S LiPo Connector
RPP Price: $4.29

Add Free Shipping
REEFS RC 2S LiPo Connector
REEFS RC USB Link
RPP Price: $25.99

Add Free Shipping
REEFS RC USB Link
REEFS RC Triple7 Steel Gear Set
RPP Price: $34.99

Add Free Shipping
REEFS RC Triple7 Steel Gear Set
MyTrickRC JST Power Adapter for Deans Plug
RPP Price: $6.95

Add Free Shipping
MyTrickRC JST Power Adapter for Deans Plug
Holmes Hobbies SHV500v3 Servo Gearset
RPP Price: $17.25

Add Free Shipping
Holmes Hobbies SHV500v3 Servo Gearset
MyTrickRC JST Power Adapter for Traxxas Plug
RPP Price: $6.95

Add Free Shipping
MyTrickRC JST Power Adapter for Traxxas Plug


  0 of 0 people found the following review helpful:

5 of 5 July 27, 2022
Reviewer: Anonymous Person from Sheridan, WY United States
I'm running Reef's on all my rigs. From my scx24 to my class 2 crawler, Reef's has never let me down. This was just what my custom bouncer needed.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 Incredible fast shipping September 25, 2021
Reviewer: Manny Nunez from WESTMINSTER, CA United States
This was my first time purchasing from RPP Hobby ! Product delivered super fast ! And items were in just as described ! Thank you ! I'll for sure be ordering from you again!
Manny

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 May 10, 2021
Reviewer: Geno Quichocho from Barrigada, Guam


Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 777 Reef's RC Servo June 15, 2020
Reviewer: David B from South Florida
This Servo Works Great! I am thoroughly satisfied with the quality and performance of this servo! I don't know if I need the 700+ oz of torque that it produces but, unlike the servo it replaced it is not going to get overloaded on a simple rock crawling course.. This servo is awesome!


Was this review helpful to you?

  0 of 1 people found the following review helpful:

1 of 5 Heated up right away. Shady advertising here. June 13, 2020
Reviewer: Seafaringwest from Laguna Niguel, CA United States
I installed this into my rig, set the end points under full lock, and then took it out for a drive. Immediately started stuttering and behaving odd. Checked the temp and it is getting really warm. So I unplugged it to save it from further damage. Support ticket was sent to RPP, and hopefully they will address it. This is not the experience I was hoping for on an $150 servo.

Was this review helpful to you?

View All Customer Reviews
