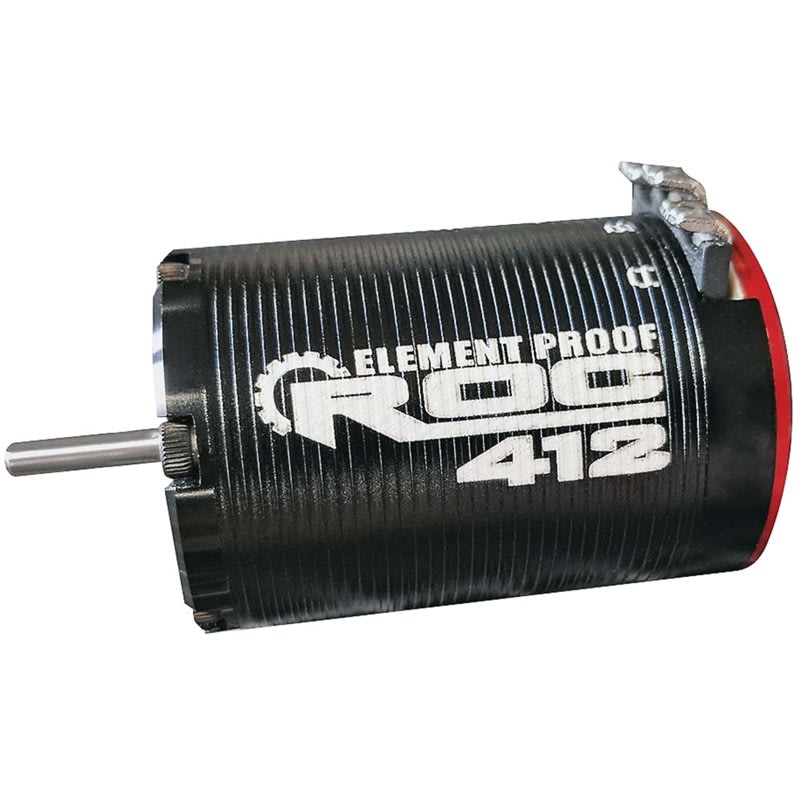

Tekin ROC 412 EP Brushless Crawler Motor 2300kV

Tekin ROC 412 EP Brushless Crawler Motor 2300kV

RPP Price: $129.99

Note: Coupon discounts not allowed
by manufacturer

STOCK STATUS:
 In Stock!

Free Shipping
Part Number: TEKTT2623
Qty:

Description

Tekin's Element Proof ROC412 offers protection from the elements, giving you the power to take on the trails or track without fear of water, mud or snow! Designed for heavier trail or rock racing rigs, the ROC 412 delivers more torque and more power on demand. Using a 4-pole 12-slot motor design, the ROC 412 harnesses the benefits of brushless efficiency and reliability to keep you and your rig on the trail longer with more power.

Couple the ROC 412 with an RX4 or RS GEN2 speed control for the smoothest brushless crawling system available. Rock Racing power and Crawling precision are at your disposal.


Specifications:
Input Voltage:
2S - 5700kV / 4600kV / 3100kV
3S - 3100kV / 2300kV / 1800kV
4S - 2300kV / 1800kV / 1200kV
5S - 1800kV / 1200kV / 500kV
6S - 1200kV / 500kV

Weight: 180g / 6.3oz

Shaft Dimensions: 3.2mm (1/8") x 15.3mm

Motor Diameter: 35.8mm / 1.41"

Motor Length: 52.5mm / 2.10"

Bearing Dimensions: Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm

Rotor Size: 18.5mm

Rebuildable: Yes

Features:
Element Proof design tackles Water, Mud and Snow*
18.5mm Rotor provides more Torque and Braking Power
4 Pole 12 Slot Hi-torque Motor Design

CNC Machined 6061-T6 Billet Aluminum Heatsink Can
Crawler, Rock Race and Trail Rig Specific
Neodymium Sintered Magnets
Rebuildable Design
High Purity Copper Windings Maximizes Efficiency
Precision Engineered for Maximum Energy Conversion
Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems
High RPM ABEC5 Oversized Bearings

* Element Proof ESCs and Motors are specially designed to withstand water splashes and are not meant to be submerged. Included dielectric grease must be used on the sensor and fan port connections to protect them from shorting.

** The ROC412 EP is not intended for operation while submerged in liquid.

*** Anytime your motor sees water it is important that you perform the proper after run maintenance. Warranty does not cover neglect, lack of maintenance, bearings, rust or any damage that may occur if the motor is submerged in water.
