Tekin’s GEN4 Lineup introduces the Eliminator purpose built Drag Racing motor, engineered for award-winning performance. Utilizing Oversized Ultra Torque rotors and the best materials available, we designed the Eliminator to cut weight while reducing resistance, resulting in a purebred Drag Racing machine. From Pro Mod to Street Eliminator classes, the Eliminator motors create huge power across all RPMs whenever you need it. The GEN4 Eliminator is competition performance with the speed and power you need to gap the competition.
The GEN4 motor line is a completely new ground-up design. We put in the design and test time so you can reduce your lap times. The new stator is precision stamped and pressed, increasing efficiency and reducing resistance. Our motors are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. Completely tunable with optional rotors and re-buildable, the new GEN4 Eliminator motor is a premium performance power plant for the serious drag racer.
Specifications:
Input Voltage: 1-2S LiPO - 2.5T / 3.5T / 4.0T / 4.5T / 5.0T
Weight: 5.1oz / 145g
Shaft Dimensions: 3.18mm (1/8") x 15.3mm
Motor Diameter: 35.85mm / 1.40"
Motor Length: 50.25mm / 1.978"
Max Operating Temperature: 180°F / 82°C
Bearing Dimensions: Front: 4x13x5mm, Rear: 1/8x3/8x5/32"
Rotor Size: 13mm TORQUE RED - 3.5T / 4.0T / 4.5T / 5.0T, 13.5mm ULTRA TORQUE YELLOW - 2.5T
Rebuildable: Yes
DRAG RACE
1:10 2WD No Prep
1:10 2WD Street Eliminator
1:10 2WD Street Outlaw
1:10 2WD Pro Stock
1:10 2WD Pro Mod
1:10 2WD Top Fuel
Features:
60 Degrees Adjustable Timing Advance
Drag Racing Specific Design
CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
ULTRA TORQUE Neodymium Sintered Magnet
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity
Low Resistance, High Power Solder Tabs
Sensored System Ready
Anodized End-bell Plates Maximize corrosion and Wear Resistance
High RPM Precision Bearings
Oversized Front Bearing
Rebuild-able Design
Solder-less Sensor PCB Replacement
Legal in Major Race Governing Bodies
No-Prep RC Legal

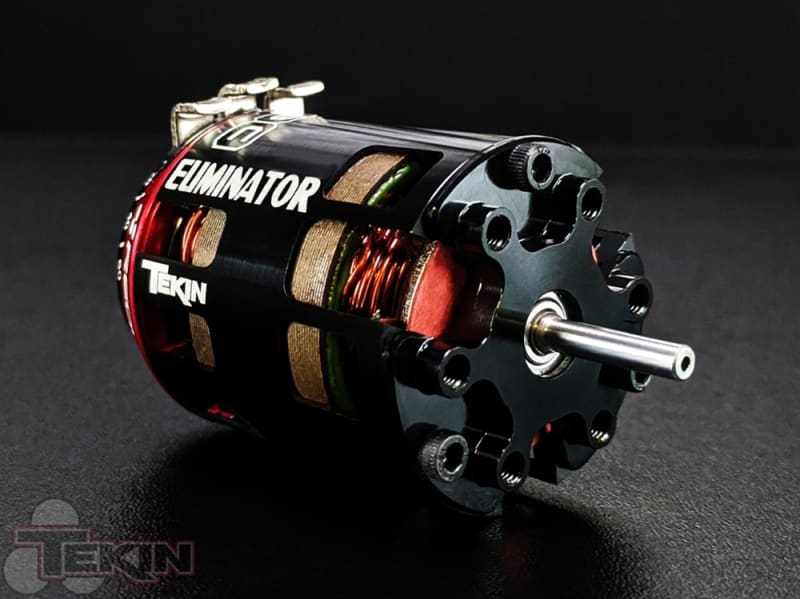

Manufacturer's Description: 2.5T Gen4 Eliminator, 13.5mm UltraTorque Rotor Yellow
