TRX-4® Equipped with Traxx®
Hit the trail fully outfitted for fun and adventure with TRX-4 equipped with Traxx. Engineered for grip everywhere and ultimate off-road capability, Traxxas elevates this truck higher and wider than any other TRX-4 model. TRX-4 with Traxxas comes factory-equipped with a convenient clipless body, powerful lighting, and a full array of performance parts and scale detail accessories to further enhance the realism.
|
|

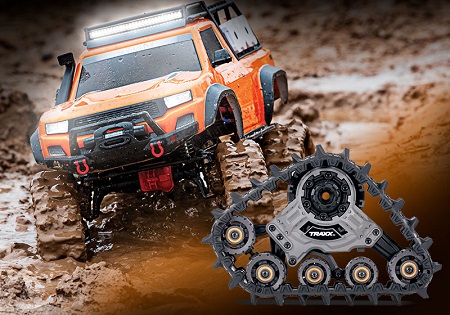

Maximum Traction
Outfitted with Traxx, TRX-4 transforms into an all-terrain monster. The enormous contact patch and grippy treads shrug off the deepest mud and float across sand. Traxx increases ground clearance and approach angles to let you straddle even larger obstacles and climb steeper grades without breaking a sweat.
|

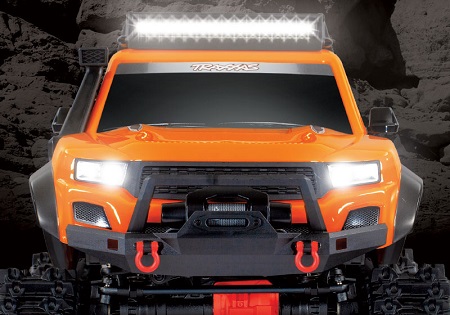

LED Light Kit
The pre-installed LED light kit features headlights, taillights, and a wide 28-LED rack-mounted light bar. Fully waterproof for all-weather adventure, the LED light kit keeps the fun going long after the sun sets. The injection molded grill and tailgate feature integrated lenses for additional scale detail and rugged functionality.
|
|
|

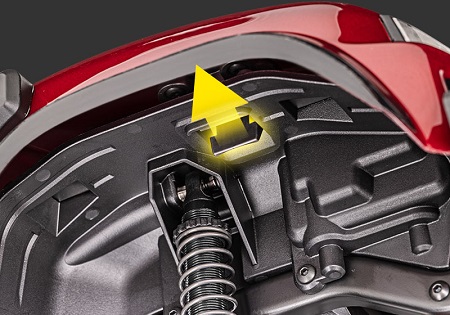

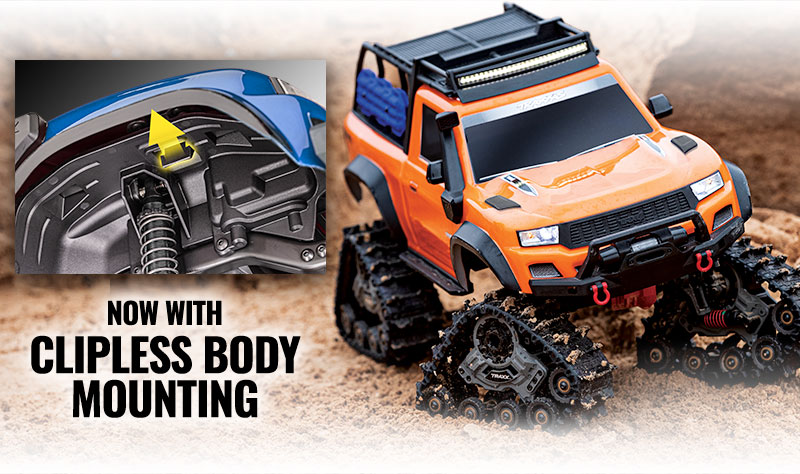

Clipless Body Mounting
New to TRX-4 with Traxx, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-4’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.
|
Scale Accessories
TRX-4 with Traxx includes an entire complement of scale accessories. Along with a tough and functional Expedition Rack, the truck comes outfitted with a replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and canisters for extreme scale detail. Inner fenders give TRX-4 a realistic appearance for maximum impact.
|
Features:
Clipless Pickup Truck Body
Clipless body mounting
Low profile bumpers for increased clearance
Red differential covers and D-rings
Clear windows
Scale Accessories
Rugged Expedition Rack with detailed accessories
Tough inner fenders
Injection-molded snorkel, side mirrors, and grilles
All-Terrain Traxx®
Virtually unstoppable traction on practically any terrain
Oil-filled coilover dampers to control rotational movement
Suspended road wheels allow treads to conform to irregular surfaces
Specially designed one-piece rubber treads resist de-tracking
Longer rear Traxx drive units for steep climbing stability
Designed for all-weather fun
Sealed bearings on drive wheels
Low-maintenance self-lubricating bushings on guide wheels
LED Light Kit
Sealed waterproof design
Color-coded power distribution block for easy and secure connections
Traxxas LED lighting module
Regulated to provide consistent and reliable power output
Eliminates overheating, glitching, and other electronics issues
Portal Axles
Increase ground clearance
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts

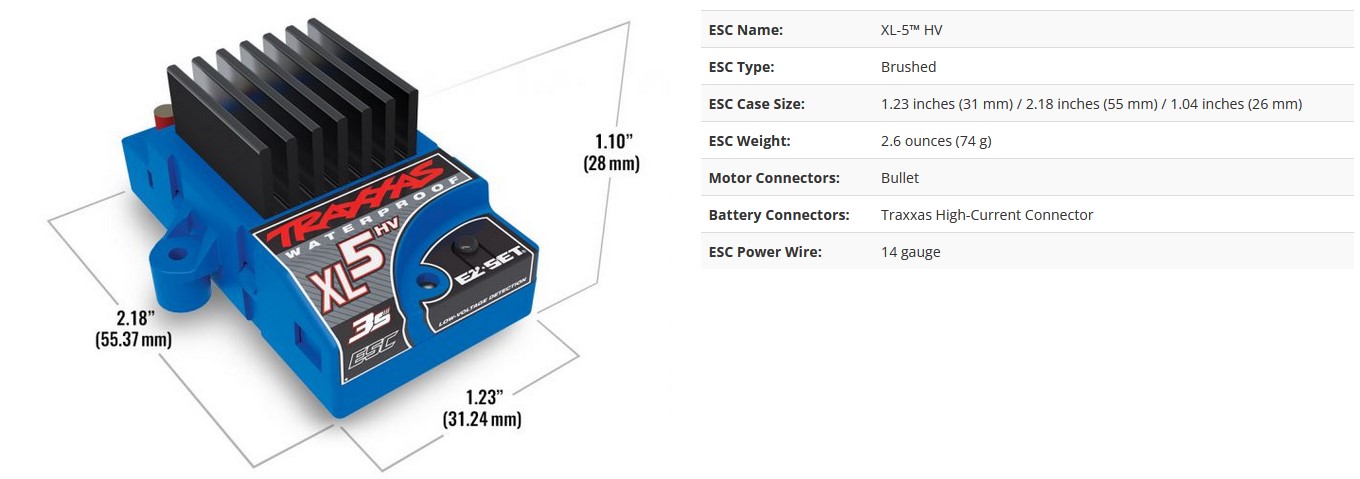

Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
Fully waterproof design
Five drive profiles
Sport Mode — forward / brake / reverse
Race Mode — forward / brake / no reverse
Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
Traxxas EZ-Set® one-button setup
Large, efficient heat sink
Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
Two stage low voltage protection (LVD)

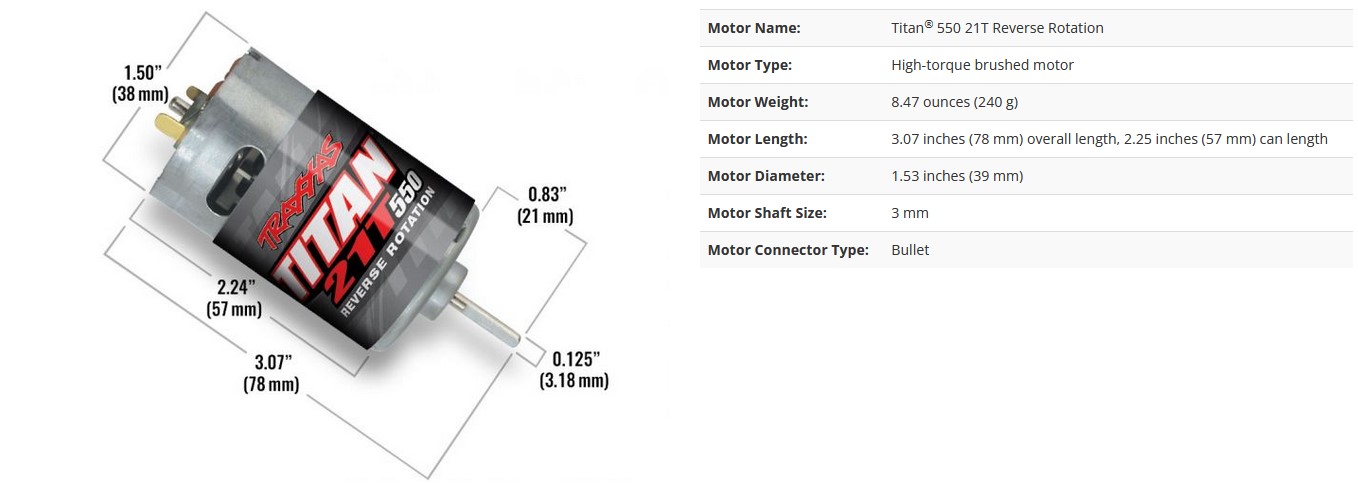

Motor
Powerful Titan® 21-T reverse rotation motor with internal cooling fan
Precise preset gear mesh adjustments
Motor retention separate from gear mesh
Rigid Steel Frame
1.5 mm thick steel frame rails increase torsional rigidity
Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
Adjustable rear shock tower positions for SWB and LWB configurations
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails
Drivetrain
Full-time shaft driven 4-wheel drive
Tough 6 mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Spool-locked front and rear differentials
Steel gear transfer case
Innovative Battery Compartment
Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Secondary forward battery tray accepts smaller 1/16 scale batteries (with optional strap)
Transmission
Single-speed with steel gears
Dual horizontal shafts
Twin friction plate slipper clutch
Easily removed for servicing
Steering
Chassis mounted 2270 high torque digital servo
236 oz-in torque
Waterproof case
Full metal gears
Superior 45° steering angle
Direct steering (no servo saver)
Steering geometry corrected for bump steer
Suspension
Front — 3 link with panhard
Rear — triangulated 4 link
Heavy-duty rod ends with steel hollow balls
5 mm diameter steel link rods with 4 mm threaded ends
Aluminum GTS Shocks
Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals
TQ™ 2.4 GHz 2-channel transmitter
Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating
Specifications:
Manufacturer's Title: TRX-4 Equipped with TRAXX
|
|
|
 |
|
 |
|
|
|
