Race-Inspired Handling. Built Traxxas Tough.Jato® 4X4 delivers agility and toughness in a platform that is both fun and rewarding to drive. The low-CG chassis uses performance-optimized suspension geometry and optimal weight distribution to deliver quick turn-in and precise handling dynamics. As a result, Jato 4X4 handles with the precision of a race buggy and the durability of the Traxxas' toughest off-road trucks.
Includes:
Jato 4X4 with BL-2s ESC and 3300 Kv motor
Quick Start Guide
TQ 2.4 GHz radio system
High quality maintenance tools
Needed to Complete:
Battery
Charger
(4) AA Alkaline Batteries
Features:
Clipless Body Holds tight for intense action
Quick and easy removal
High-downforce wing
Extreme Heavy Duty Upgrade Kit Installed Strengthened C-hubs, axle carriers, and steering blocks
Heavy duty one-piece camber & toe links
Maxx-duty driveshafts
Oversize diameter
6 mm axles
17 mm hex hubs
Aluminum wheel nuts
TQ™ 2.4 GHz Transmitter Full-size 2-channel transmitter
All-day comfort with precise long-range control
Steering Chassis-mounted 2075 servo
Dual bellcrank design with integrated servo saver
BL-2s™ Waterproof Electronic Speed Control Heat sink accepts accessory cooling fan (3340)
Three Programmable Drive Profiles
Sport Mode - Forward / Brake / Reverse
Race Mode - Forward / Brake
Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
Traxxas EZ-Set® one-button setup
Built-in two-stage low-voltage detection for LiPo batteries
NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
LiPo battery packs: 2 cells (7.4 volts)
3300 Kv Brushless Motor Integrated cooling fan
Low-maintenance design
Efficient ball bearings
3300 Kv
Chassis T-Bar chassis stiffener
Modular composite tub design
Secure battery hold-down latch
Low-CG design
High-clearance skid plate
Suspension Heavy duty shock towers
Reinforced shock mounts
Double-shear camber link connections
Heavy duty suspension arms
Oil-filled GTR shocks
Threaded shock collars for precise ride height adjustment
Large oil capacity for consistent damping
White powder-coated springs
Driveline Full-time shaft-driven 4-wheel drive
Sealed steel gear front and rear differentials
Heavy-duty slipper clutch
Large 32-pitch spur gear
Wheels and Tires 3″ gray buggy wheels
Sledgehammer® tires
Sealed Ball BearingsHex hardware with Rust-Resistant Black Oxide Coating
|
|
BL-2s Brushless System
The BL-2s™ brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Jato 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 Kv is long-lasting and requires virtually no maintenance.
|

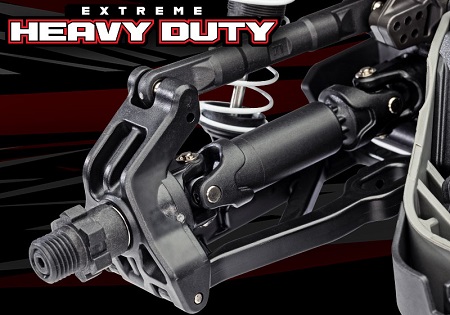

Next-Level Toughness
Factory-installed Extreme Heavy Duty Upgrade components give Jato 4X4 the superior strength and durability normally associated with Traxxas’ toughest off-road trucks. An ultra-rigid T-Bar reinforces the chassis with Extreme HD shock towers to support the suspension. Huge Maxx-Duty® driveshafts transfer every ounce of the motor’s torque to the wheels with unsurpassed strength.
|
|
|
Track-Ready Handling
Jato 4X4 sits low and wide, concentrating its weight below the driveshafts for exceptional handling and perfect weight distribution. Extra-long GTR shocks in the front and rear maximize traction by keeping Jato 4X4’s new Sledgehammer® buggy tires in constant contact with the ground. Add the optional sway bar kit (sold separately) for ultra-flat cornering and game-changing on-track performance. |
Clipless Buggy Body
Jato 4X4’s form-fitted clipless body cuts through the wind and eliminates the parachuting effect for stable performance at speed. Tough clipless side latches hold the body securely in place but release in just seconds for fast battery swaps. Jato 4X4 incorporates the high-downforce wing from Sledge® to keep its chassis planted with rugged rollover protection as an added benefit.
|

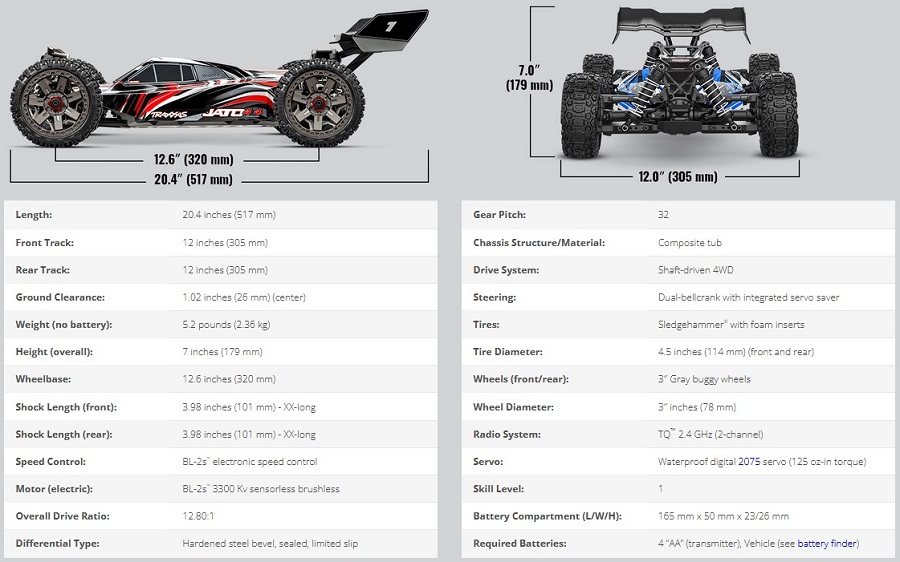

Specifications:
