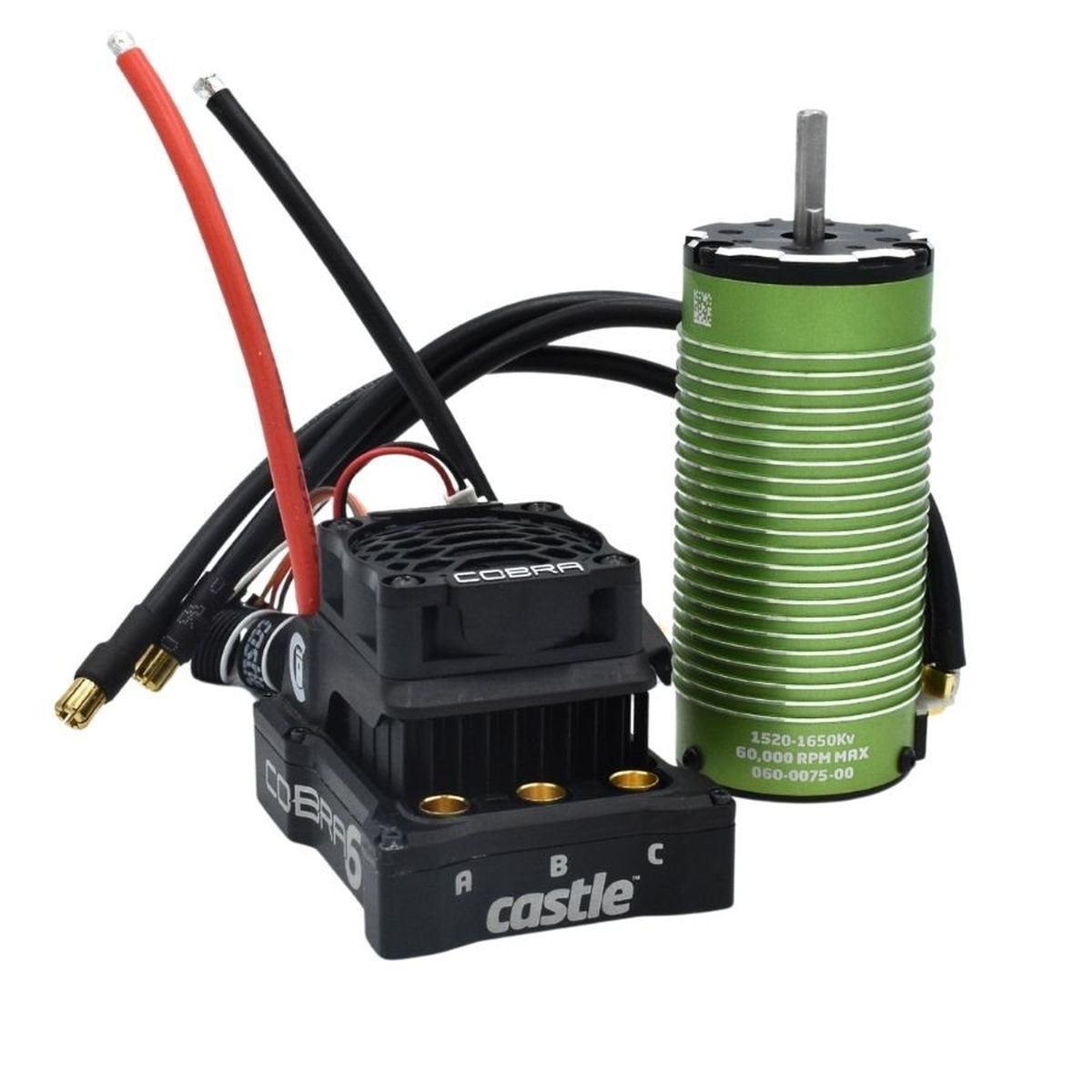

Castle Creations Cobra 6 ESC (33.6V, 8A Peak BEC) with 1520-1650kV Sensored Motor

Building on the success of the COBRA 10 and COBRA 8, Castle is excited to announce the release of the COBRA 6, engineered for 1/7th and 1/5th scale high-performance RC applications! The COBRA 6 is available to purchase as an ESC-only option or packaged with three Castle 4-POLE 12-SLOT motor options to overpower a wide range of 1/7th and 1/6th scale vehicles.

The COBRA 6 AND 1520-1650KV COMBO is a perfect upgrade for 1/8, 1/7 and 1/6 scale vehicles weighing up to 18lbs and up to 8S LiPo. The 1520-1650Kv has all of the secret sauce that the big brother 1717-1650Kv has, but in a more compact diameter, fitting into smaller spaces without modifications to your chassis.

---

Features:

• 32-Bit processing power for smoother motor control and improved response time.
• Enhanced Data Logging includes: /Double the maximum sample frequency of older generations. / 8x increased logging time of older generations./ ESC electrical motor timing data. / Acceleration data via onboard accelerometer. / Looping feature prevents interruptions in data log recording.
• Additional tuning features include: Improved braking adjustability / Separate brake and reverse curves / Highly adjustable internal BEC (5.0V - 8.5V adjustable in 0.1V increments)
• Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase.
• Optional smartphone-based programming with the B-LINK Bluetooth Interface (sold separately) and the Castle Link 2 App on Google Play or Apple App Store.
• Upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.
• Mounting holes located in bottom of aluminum case for installation into vehicle.

---

ESC Specifications:

• Input Voltage Range: MIN: 2S LiPo , MAX: 8S LiPo (33.6V)
• BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
• Operating Environment: Waterproof* design allows for use in nearly any environment.
• Brake: Proportional
• Reversible: Yes, but may be disabled for racing.
• On/Off Switch: Yes, waterproof
• Cooling Fan: Yes, factory equipped (40MM), fully removable** (see Product Use Statements below)
• Size (L x W X H): 2.73" x 2.13" x 1.85" (69.5mm x 54.1mm x 47mm)
• Weight (with no battery connector): 5.75 oz. (163 grams)
• Connectors: 6.5mm female bullets for motor connection.
• Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
• Product Use Statements: Recommended battery capacity for 1:6th scale vehicles is 5000mah. Castle recommends using 50C continuous discharge or higher LiPo batteries. / Surge ratings should never be used to determine a pack's suitability for a brushless application. / They recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors. / Applying voltages higher than 33.6V will cause irreparable damage to ESC. / Although Cobra 6 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt. / The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
• Application Guidelines: Cobra 6 and 1520-1650Kv motor is intended for use in 1/6, 1/7 and 1/8 scale vehicles weighing up to 18 lbs. and running up to 8s LiPo. / Examples include Losi LST2-E; Arrma: Limitless, Typhon 6s, Kraton 6s, Kraton EXB, Infraction Felony 6s, Notorious 6s, Talion 6s; Kyosho Inferno, Traxxas: E-Maxx, E-Revo, UDR, Summit, Re
