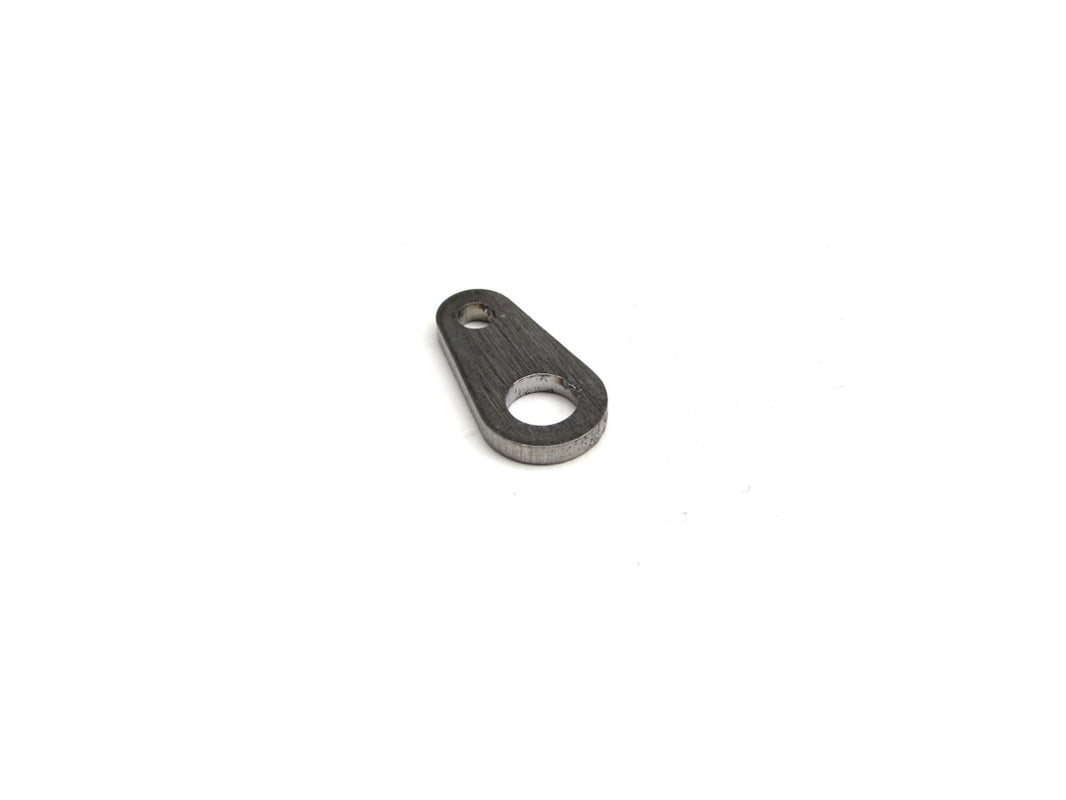

Gear Head RC Wrap Around Fabrication Tabs (8)

Wrap Around (or captured style) Fabrication Tabs are perfect for adding shock mounts or suspension links to a custom tube chassis. Made from 14 ga (.074”) cold-rolled steel, these fab tabs can be welded or brazed to your project. Pack of (8).

.104" hole can be tapped for M3 screws or the hole can be drilled out to .125" for an M3 clearance hole.

.188" (4.8mm) Hole to "Wrap Around" 3/16" Tubing

.675" (17.1mm) Tall x .352" (8.9mm) Wide

MADE IN THE U.S.A.

Note: Since these are made from uncoated cold-rolled steel (CRS), fabrication tabs may have some light surface rust.

Tech Specs

14 Gauge (.074) Cold Rolled Steel
.675" (17.1mm) Tall x .352" (8.9mm) Wide
.104" (2.6mm) Hole for M3 tap
.188" (4.8mm) Hole to "Wrap Around" 3/16" Tubing

Formerly p/n GEAFAB005
