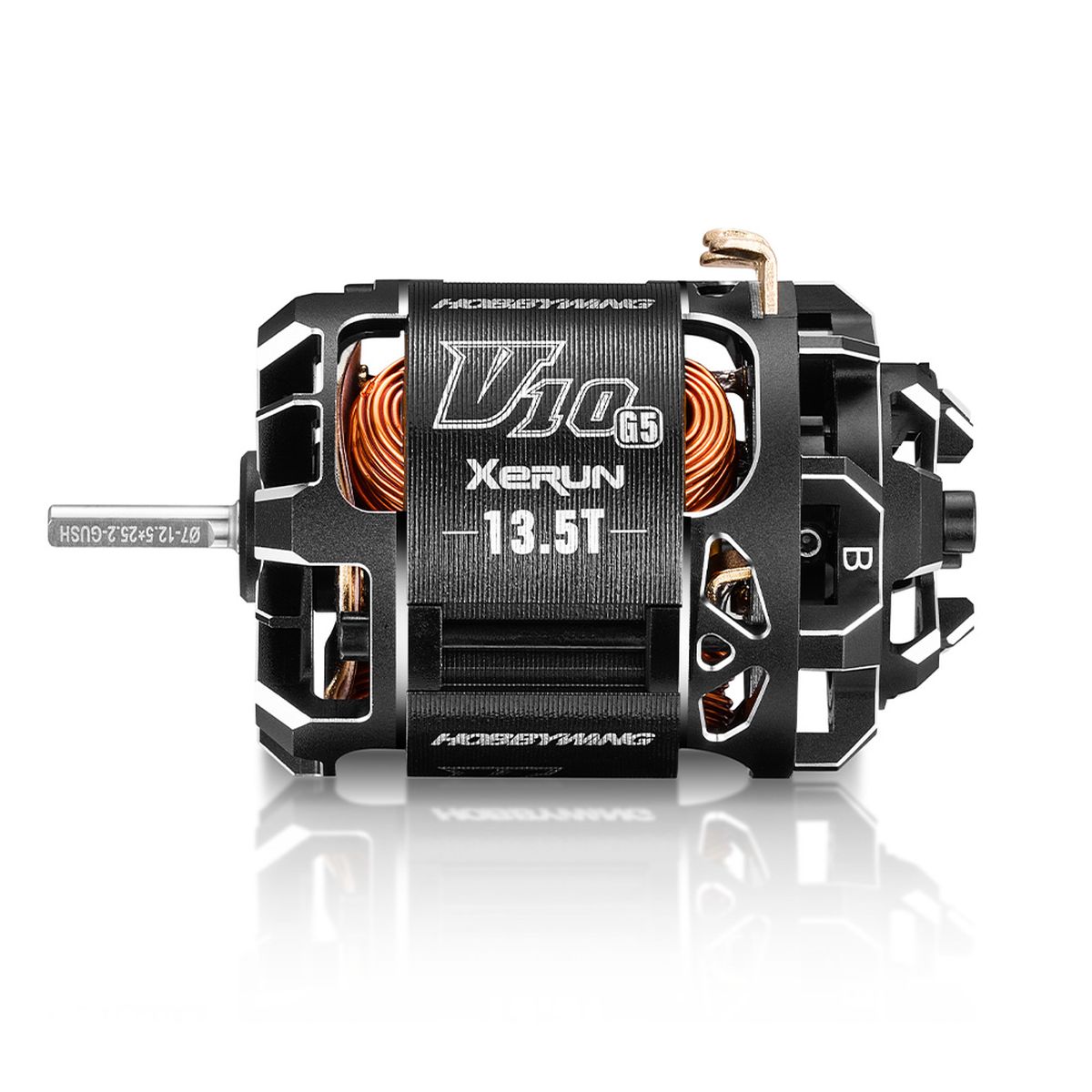

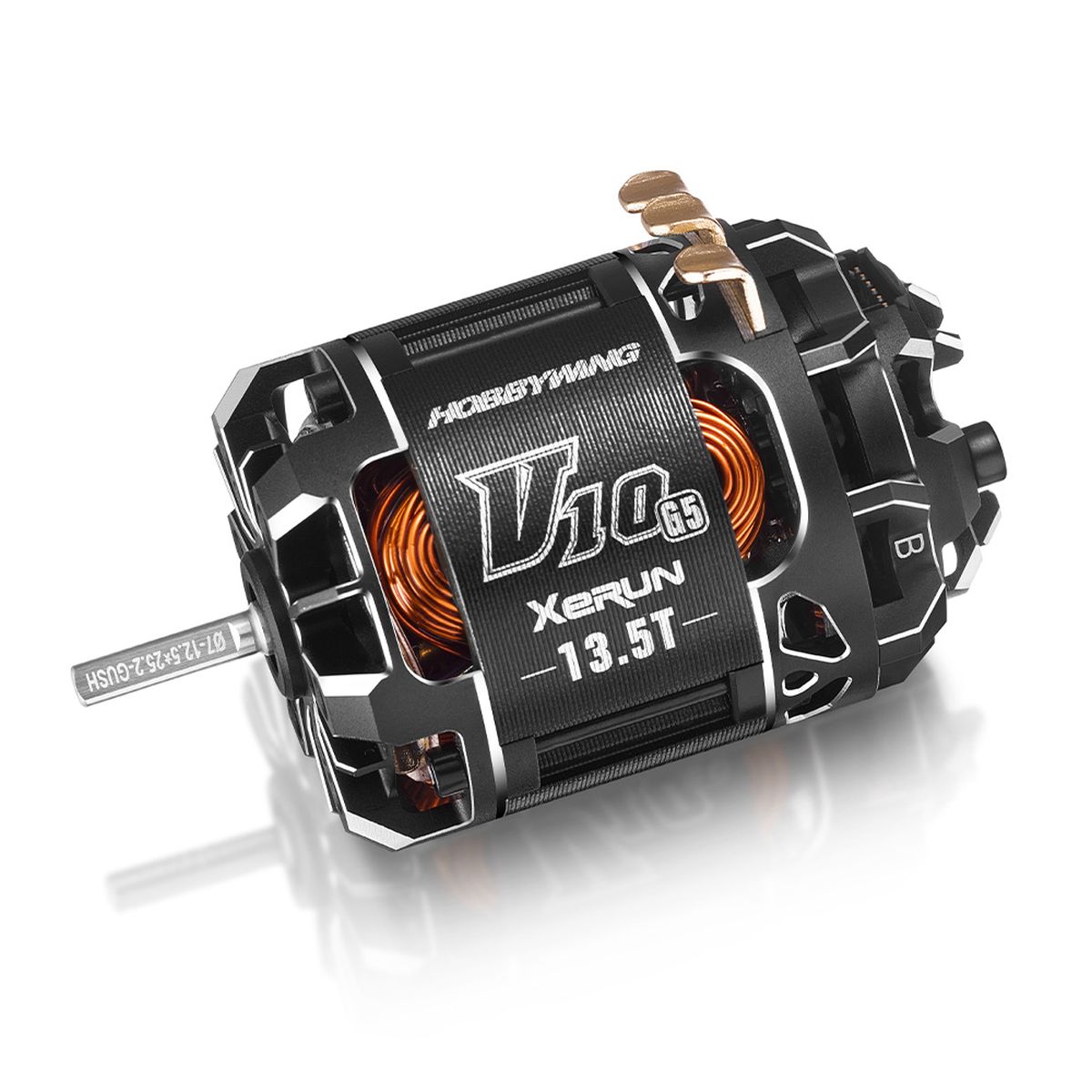

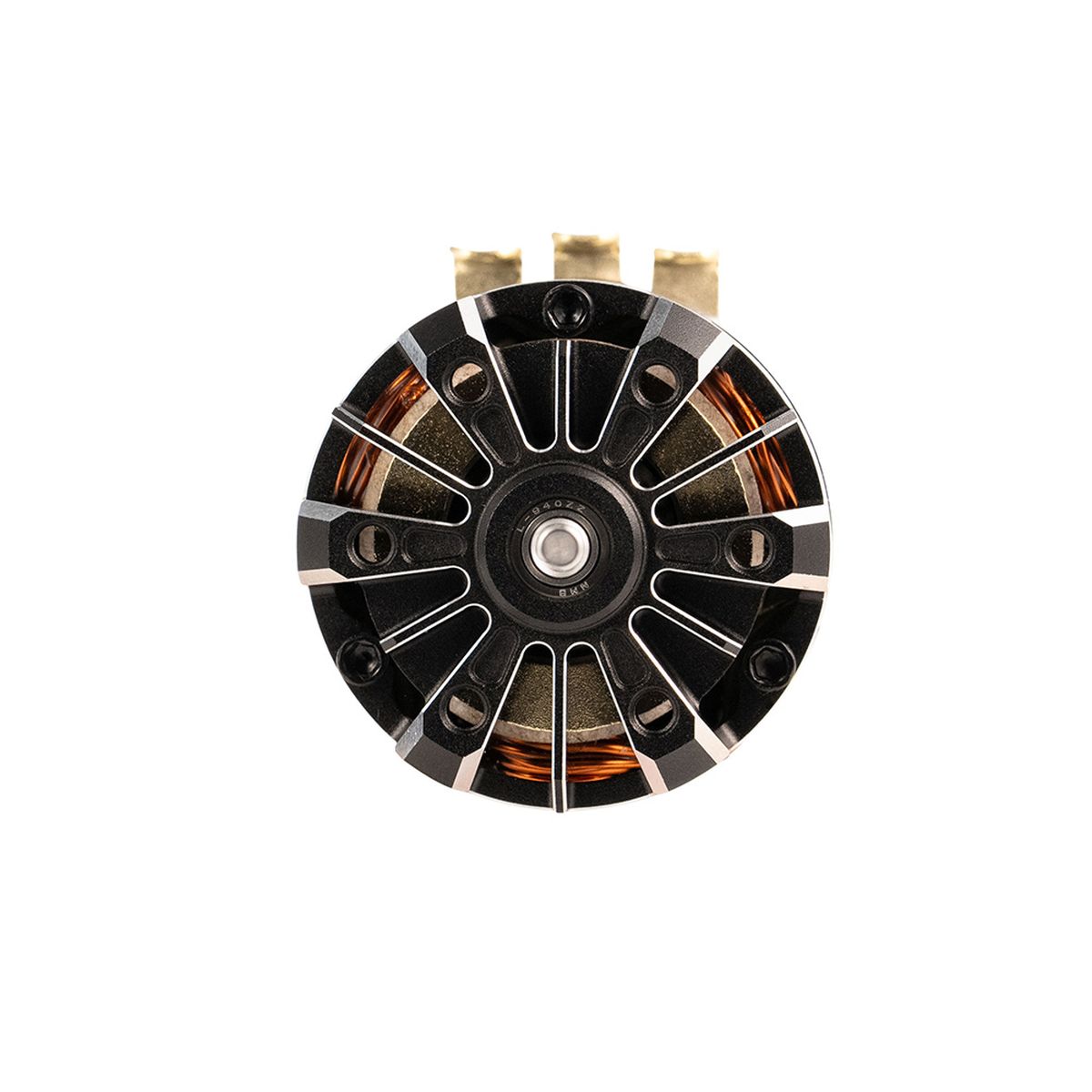

Hobbywing XeRun V10 G5 13.5T Stock Motor (Torque)

Notes:
The KV value is measured when no load is applied to the motor, the motor timing is set to the value by default and the ESC timing is set to Zero.
Never allow the motor to overheat, high temperatures may affect its performance. Please let the motor cool down before using it again.

---

Motor Specifications:

• KV (No Load): 3900KV
• LiPos: 1-3S
• Resistance: 0.0208
• No-Load Current (A): 6.0A
• Diameter/Length (mm): D=35.8mm (1.41in); L=51.5mm (2.03in)
• Shaft Diameter/Length: D=3.175mm (0.125in); L=15mm (0.59in)
• Stock Rotor: D7-12.5*25.2-JUS (PN: 30820462)
• Bearing Size (mm): Front: D9*D4*t4; R: D8*D3*t4
• Poles: 2
• Weight (g): 138g
• Applications: 1/10 & 1/12 STOCK Racing
