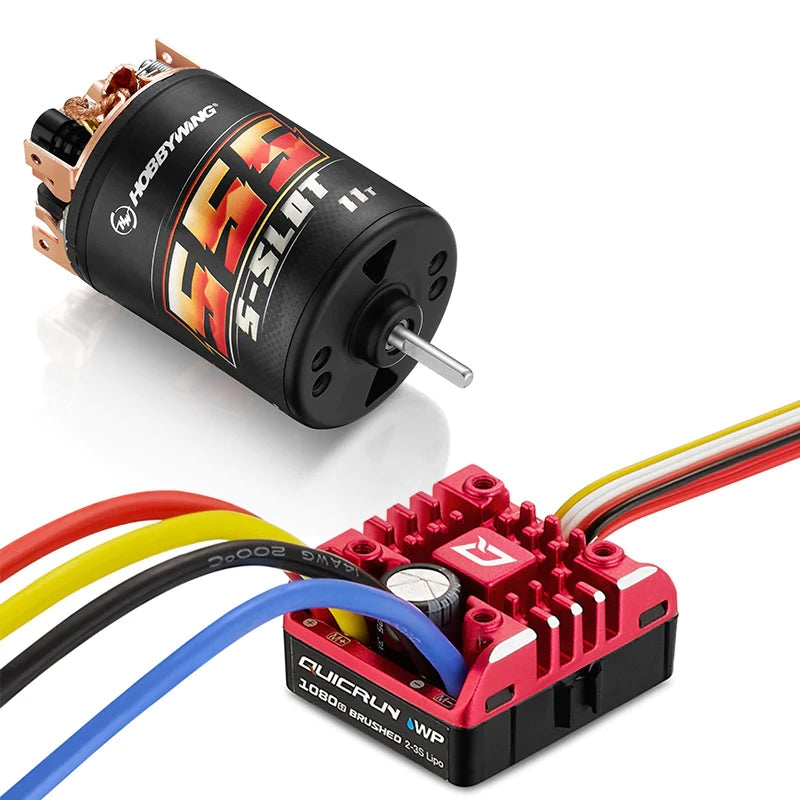

Hobbywing QuicRun 1080 G2 ESC Plus Brushed 555 11T Motor Combo
Hobbywing QuicRun 1080 G2 ESC Plus Brushed 555 11T Motor Combo
Regular price
$59.99 USD
Regular price
Sale price
$59.99 USD
Shipping calculated at checkout.
SKU:HWI38020351
Quantity
Couldn't load pickup availability
"BRUSHED RE-ENERGIZED"
Specialized Carbon Brushed for extended life
Zero-Cogging Torque Design
Applications: 1/10 Crawler / Short course truck / Monster truck
Motor Features:
555 can-size
Excellent efficiency
Outstanding Response and Control
Adjustable mechanical timing of the motor
Modular design for easy service and cleaning
Motor Specifications:
Slot: 5
RPM@7.4V: 17000
Input Voltage: 10V
Diameter/ Length(mm): D=36mm(1.42in) / L=58.5mm(2.30in)
Shaft Diameter/ Length (mm): D=3.175mm(0.125in) / L=16.5mm(0.65in)
Weight: 193g
ESC Features:
Fully Water-proof and dust-proof, suitable for all-weather races.
Small in size, with a built-in capacitor module.
Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
Real-Time Adjustment of Drag Braking Force.
15 programmable parameter items
PWM Frequency: 1K/2K/4K/8K/16K Adjustable
Freewheeling (DEO) capability
Drag brake rate in 9 levels (adjustable)
Electronic switch
Aluminum case for great heat dissipation
Great current endurance capability.
Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
Automatic throttle range calibration, easy to use.
Multiple protections:
Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection, and much more
Specialized Carbon Brushed for extended life
Zero-Cogging Torque Design
Applications: 1/10 Crawler / Short course truck / Monster truck
Motor Features:
555 can-size
Excellent efficiency
Outstanding Response and Control
Adjustable mechanical timing of the motor
Modular design for easy service and cleaning
Motor Specifications:
Slot: 5
RPM@7.4V: 17000
Input Voltage: 10V
Diameter/ Length(mm): D=36mm(1.42in) / L=58.5mm(2.30in)
Shaft Diameter/ Length (mm): D=3.175mm(0.125in) / L=16.5mm(0.65in)
Weight: 193g
ESC Features:
Fully Water-proof and dust-proof, suitable for all-weather races.
Small in size, with a built-in capacitor module.
Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
Real-Time Adjustment of Drag Braking Force.
15 programmable parameter items
PWM Frequency: 1K/2K/4K/8K/16K Adjustable
Freewheeling (DEO) capability
Drag brake rate in 9 levels (adjustable)
Electronic switch
Aluminum case for great heat dissipation
Great current endurance capability.
Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
Automatic throttle range calibration, easy to use.
Multiple protections:
Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection, and much more
