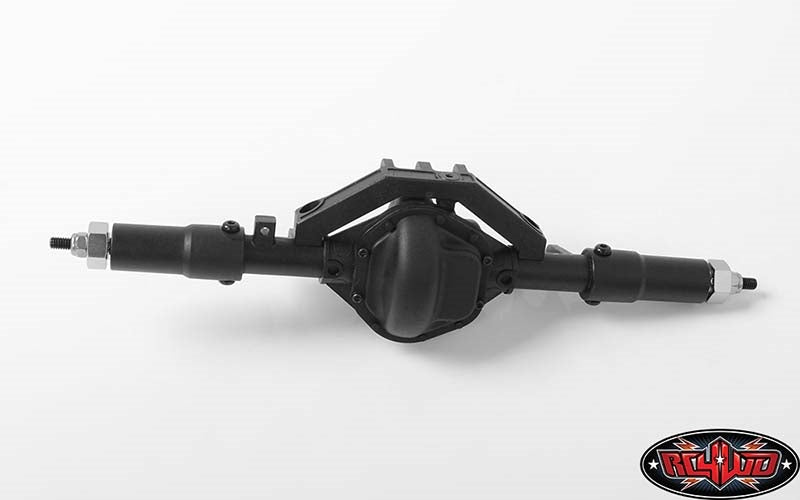

RC4WD D44 Plastic Complete Rear Axle

Specifications:
Durable Injection Molded Black Nylon
Clockable C's
Removable Diff Cover
Engineered and Manufactured by RC4WD
Heavy Duty Bevel Gear Set 38T/13T
12mm Steel Wheel Hex
5mm Axle Output Shaft
Weight: 5.55oz / 157g

What's Included:
1x RC4WD D44 Plastic Complete Rear Axle

Optional Parts:
D44 Rear Axle Upper Link Mount (Black) (Z-S0971)
D44 Rear Axle Upper Link Mount (Gun Metal) (Z-S0972)
RC4WD Ballistic Fabrications D44 Axle Cover (Z-S1600)
RC4WD ARB Diff Cover for D44 Axle (Z-S1607)
D44 Aluminum Diff Cover (Silver) (Z-S1745)
Differential Gear Set for D44 and Axial Axles (Z-G0079)
Heavy Duty Bevel Gear Set 36T/14T (Z-G0080)

Replacement Parts:
D44 Plastic Rear Axle Replacement Parts (Z-A0120)
D44 Narrow Straight Rear Axle Shafts (SCX10 Width) (Z-S0899)
RC4WD 12mm Axle Wheel Hexes (Z-S0239)
Heavy Duty Bevel Gear Set 38T/13T (Z-G0071)
Heavy Duty Differential Locker (Z-S1682)
Aluminum Diff Case for D44 and Axial Axles (Z-S1683)
RC4WD Assembly Combo Pack (Oil, Thread Lock, Grease) (Z-S1732)

Replacement Hardware:
2x M4 Lock Nuts (Z-S0620)
2x Metal Shield Bearing 5x10x4mm (Z-S0686)
2x Metal Shield Bearing 5x11x4mm (Z-S0683)
2x Metal Shield Bearing 10x15x4mm (Z-S0837)
2x Metal Shield Bearing 6x10x3mm (Z-S0680)
2x Nylock Nuts M4 (Z-S1265)
4x Steel Socket Head Cap Screw M1.6 X 6mm (Z-S1236)
1x M4 E-clip (Z-S0919)
4x Button Head Self Tapping Screws M3 X 5mm (Z-S1689)
4x Socket Head Self Tapping Screws M2 X 6mm (Z-S1584)
2x Button Head Self Tapping Screws M3 X 10mm (Z-S1578)
1x Flat Head Self Tapping Screws M3 X 14mm (Z-S1704)

Notes:
Fits Axial Jeep Wrangler Rubicon SCX10. But you will need Z-A0104.
Some components may come preassembled. Our assembly team works hard to provide you the best product possible, but it is always a good idea to ensure all hardware is tight and add additional grease to the gears as needed.
The XVD unit allows for a large amount of steering. In order to prevent premature failure, it's recommended that you set your radio's steering EPA to limit the steering from being maxed out.
