RC4WD

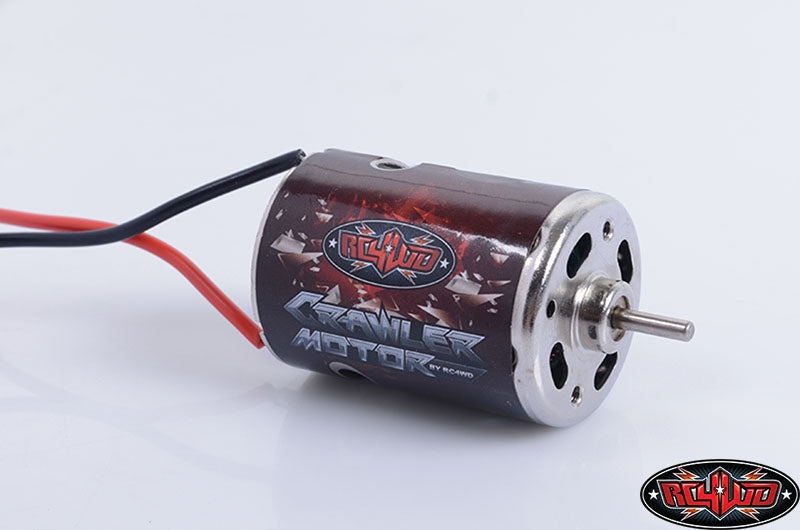

RC4WD 540 Crawler Brushed Motor 20T
RC4WD 540 Crawler Brushed Motor 20T
Regular price
$10.19 USD
Regular price
$11.99 USD
Sale price
$10.19 USD
Shipping calculated at checkout.
SKU:RC4Z-E0065
Quantity
Couldn't load pickup availability
Standard size 540 Brushed Motor that can be used in all popular RC truck and cars.
What's Included:
1x 540 Crawler Brushed Motor 20T
Chrome Plated Case
Build in Capacitor for Minimizing Glitch
High Torque Magnet and Rotor
Small Footprint (50mm long)
Tuned for Rock Climbing and Scale Driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Length: 1.96in / 50mm
Output Shaft Length: 0.43in / 11mm
Output Shaft OD: 0.12in / 3.1mm
Weight: 5.5oz / 156g
Performance Specs:
(At No Load) RPM @ 7.2V : 20000 +10％ , 2Amp Current
(Rated load) RPM @ 7.2V : 18400 +10％, 7.92Amp Current
Designed Operating Temperature Range: -10°C to +60°C
Shaft end play: 0.1mm to 0.5mm
Noise Level: < 78DB
What's Included:
1x 540 Crawler Brushed Motor 20T
Tech Specs
Custom Made 540 Steel CaseChrome Plated Case
Build in Capacitor for Minimizing Glitch
High Torque Magnet and Rotor
Small Footprint (50mm long)
Tuned for Rock Climbing and Scale Driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Length: 1.96in / 50mm
Output Shaft Length: 0.43in / 11mm
Output Shaft OD: 0.12in / 3.1mm
Weight: 5.5oz / 156g
Performance Specs:
(At No Load) RPM @ 7.2V : 20000 +10％ , 2Amp Current
(Rated load) RPM @ 7.2V : 18400 +10％, 7.92Amp Current
Designed Operating Temperature Range: -10°C to +60°C
Shaft end play: 0.1mm to 0.5mm
Noise Level: < 78DB
