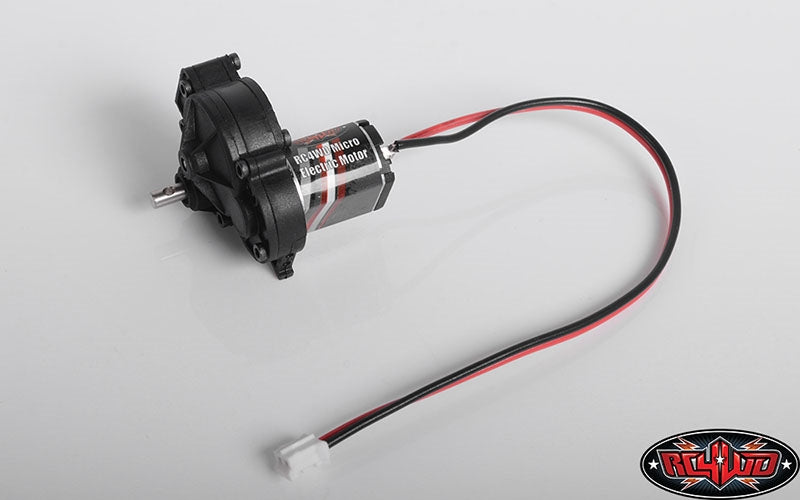

RC4WD R5 1/18 Mini Transmission V2

Install into your Mini Gelande II for more tourqe and power!

Specifications:
Plastic Injection Molding Case
FF-030 Micro Electric Motor
Gear Ratios Pinion / Spur 10/55= 5.5:1
Delrin Spur Gear
Slipper Clutch Design
Output Shaft OD: 0.12 / 3mm
Height: 1.07in / 27.3mm
Length: 1.38in / 35.01mm
Width: 1.32in / 33.64mm
Weight: 0.88oz / 25g
Manufactured by RC4WD

Shown installed on RC4WD 1/18 Gelande II RTR with D90 Body Set (Z-RTR0026) for example (Not included)

What’s Included:
1x R5 1/18 Mini Transmission V2

Replacement Hardware:
Steel Head Socket Cap Screws M1.6 x 3mm (10) (Z-S1710)
Steel Socket Head Cap Screws M1.6 x 4mm (Z-S1232)
Steel Flat Head Cap Screw M2 X 4mm (Z-S1516)

Replacement Part:
FF-030 Micro Electric Motor (Z-E0079)

Notes:
Fits RC4WD 1/18 Gelande II RTR with D90 Body Set (Z-RTR0026)
Motor plugs directly into the ESC on the Mini Gelande Trucks
