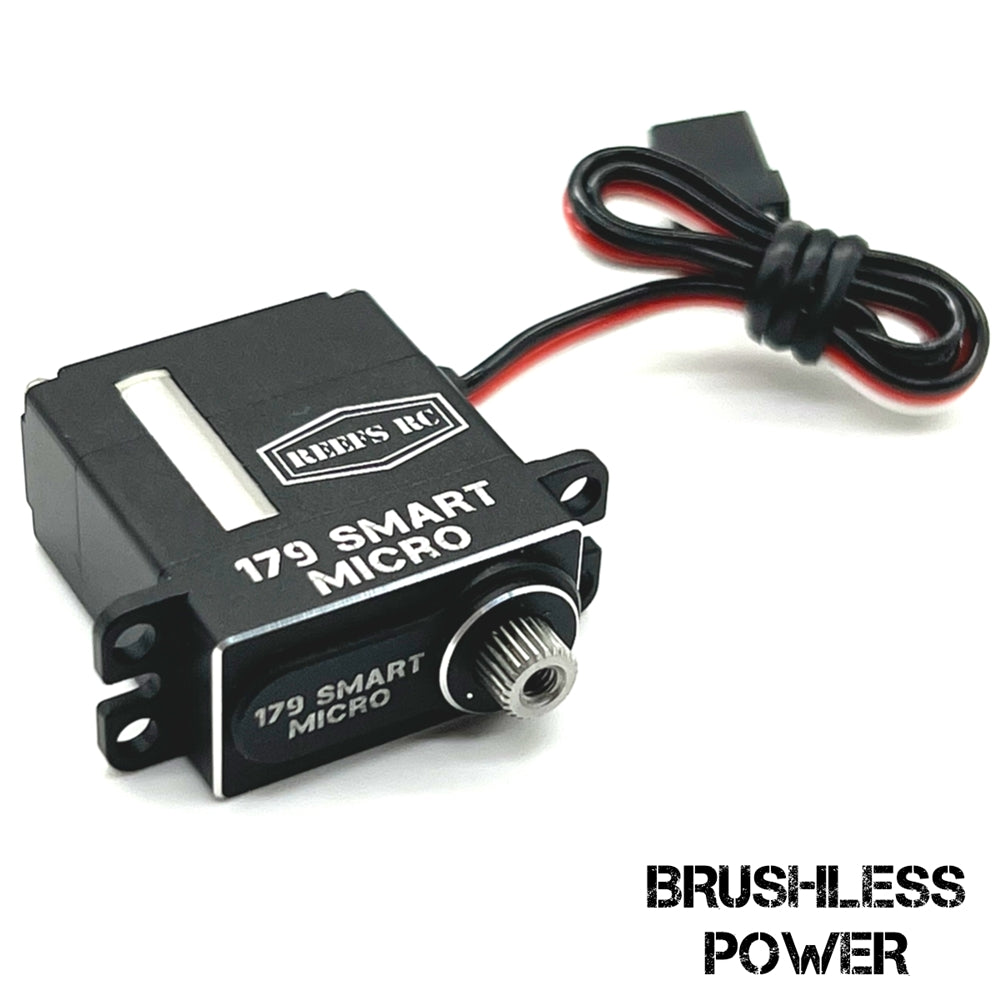

Reef's RC 179 Smart Brushless Micro Servo or Winch

High Torque High Speed
BRUSHLESS Servo / Winch FULLY PROGRAMMABLE
Magnetic Angle Sensor
Pulse Width Modulation Control
REEFS LINK required for Programming
(Optional) Comes as Servo

Specifications:

Voltage:	6-8.4V
Internal:	Steel Gears
Temp Rate:	-15C°~ +70C
Weight:	.74oz / 21g
Dimension: (LWH)	.90 x .47 x 1.08 in
	23 x 12 x 27.5 mm
Torque:	135oz @ 6.0v
	159oz @ 7.4v
	179oz @ 8.4v
Speed:	.09sec @ 6.0v
	.07sec @ 7.4v
	.06sec @ 8.4v
Spline:	25T Micro
Dead Band Width:	2¦Ìs
Unload Current:	150mA @ 4.8V
	180mA @ 6.0V
	240mA @ 7.4V
	300mA @ 8.4V
Load Current:	1600mA @ 4.8V
	2000mA @ 6.0V
	2200mA @ 7.4V
	2400mA @ 8.4V
