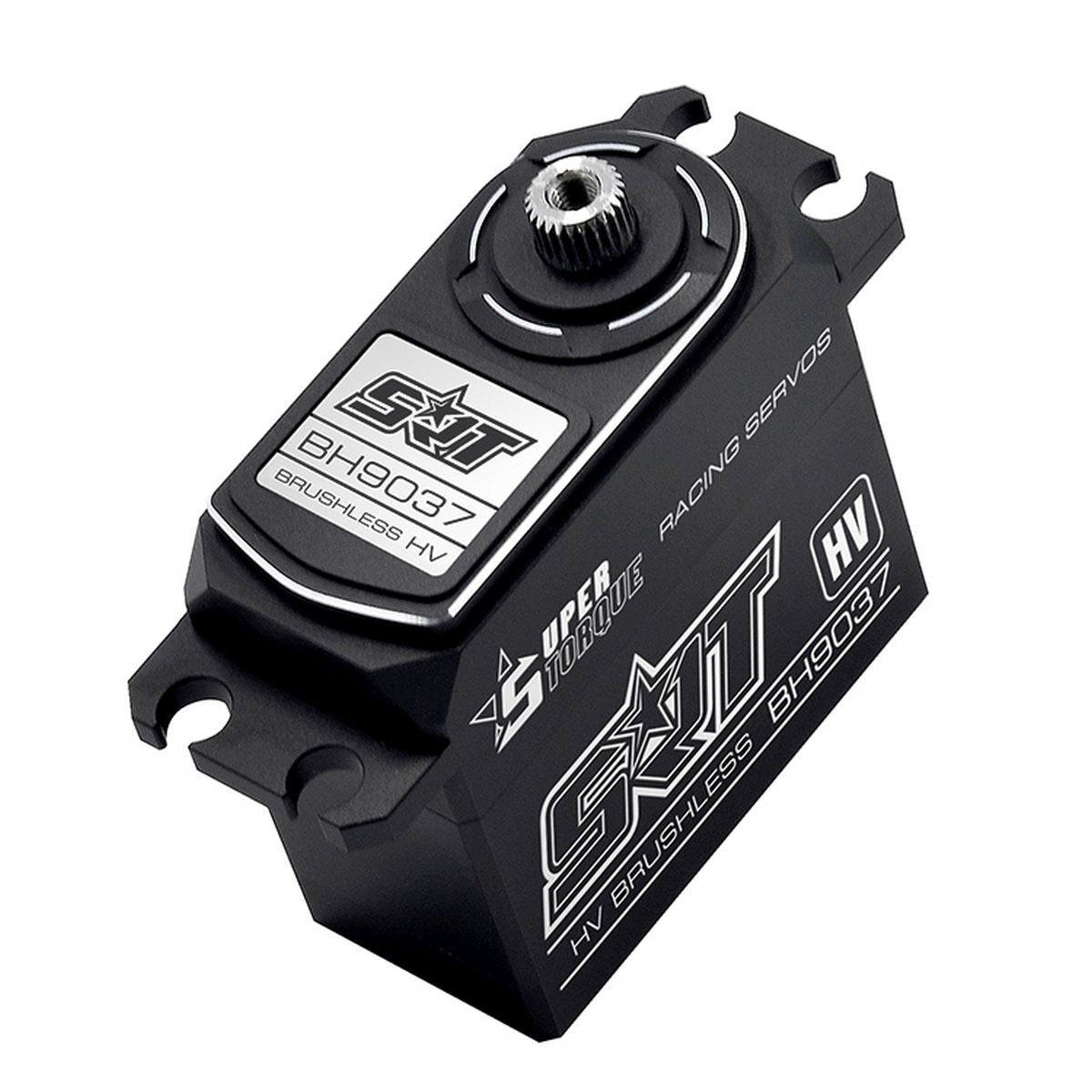

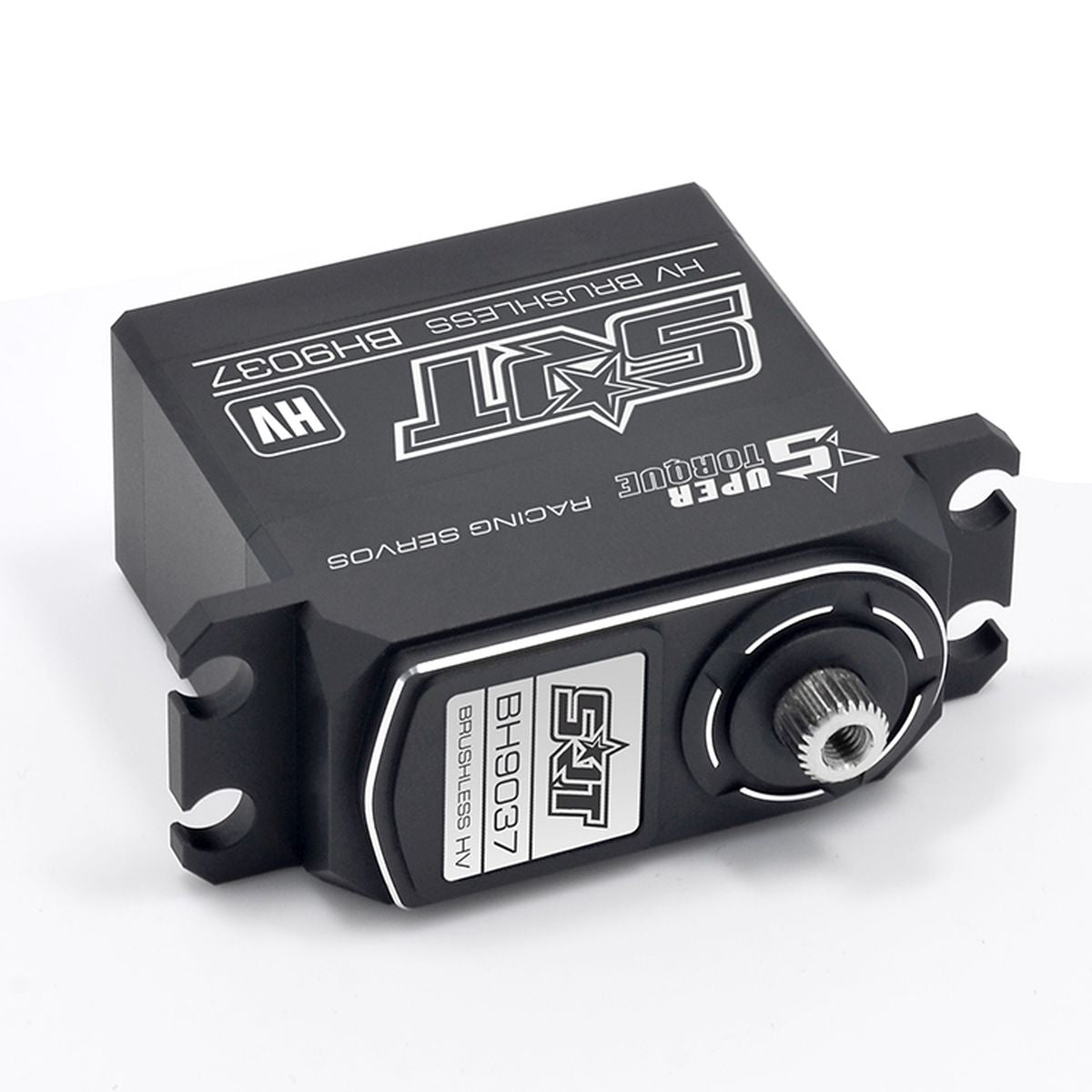

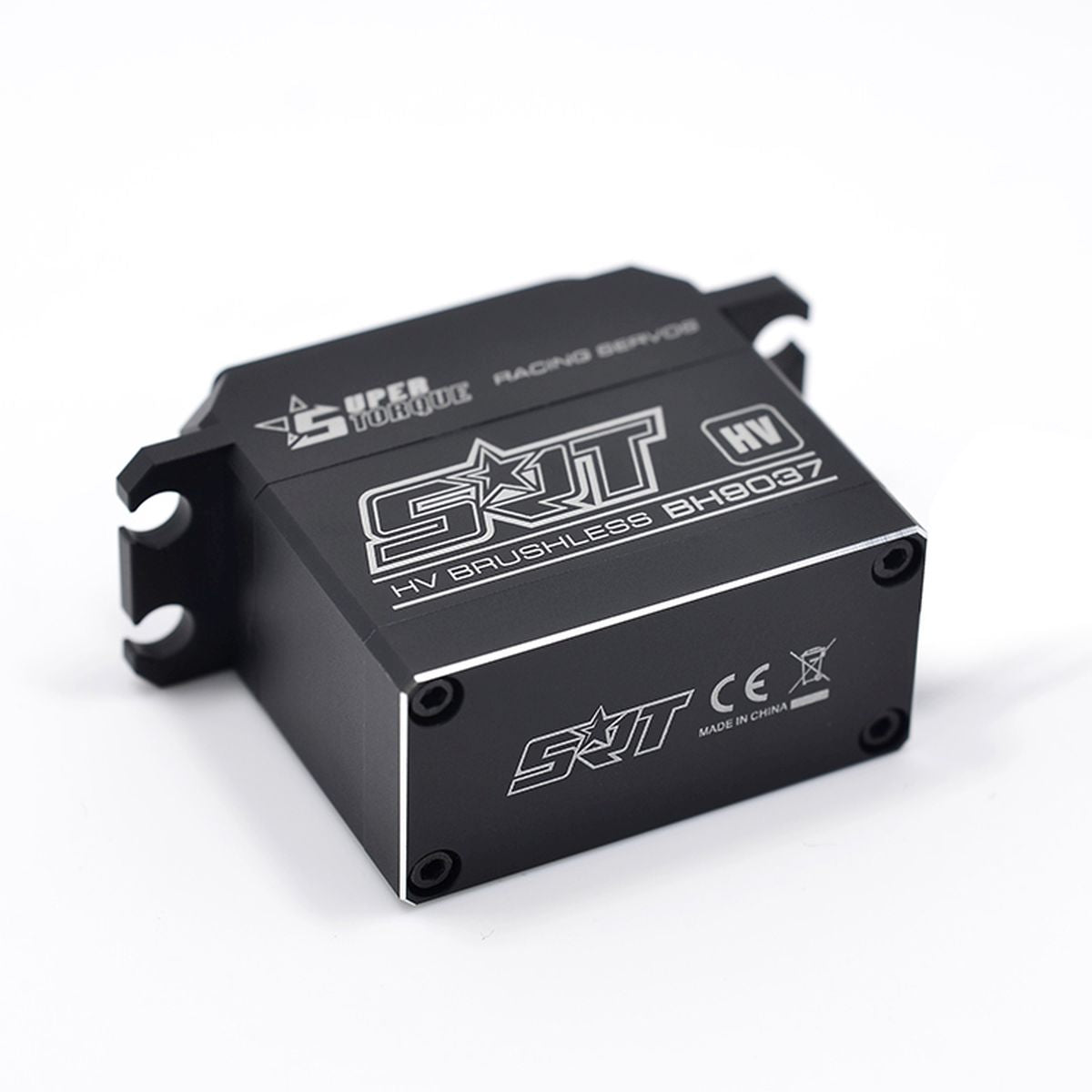

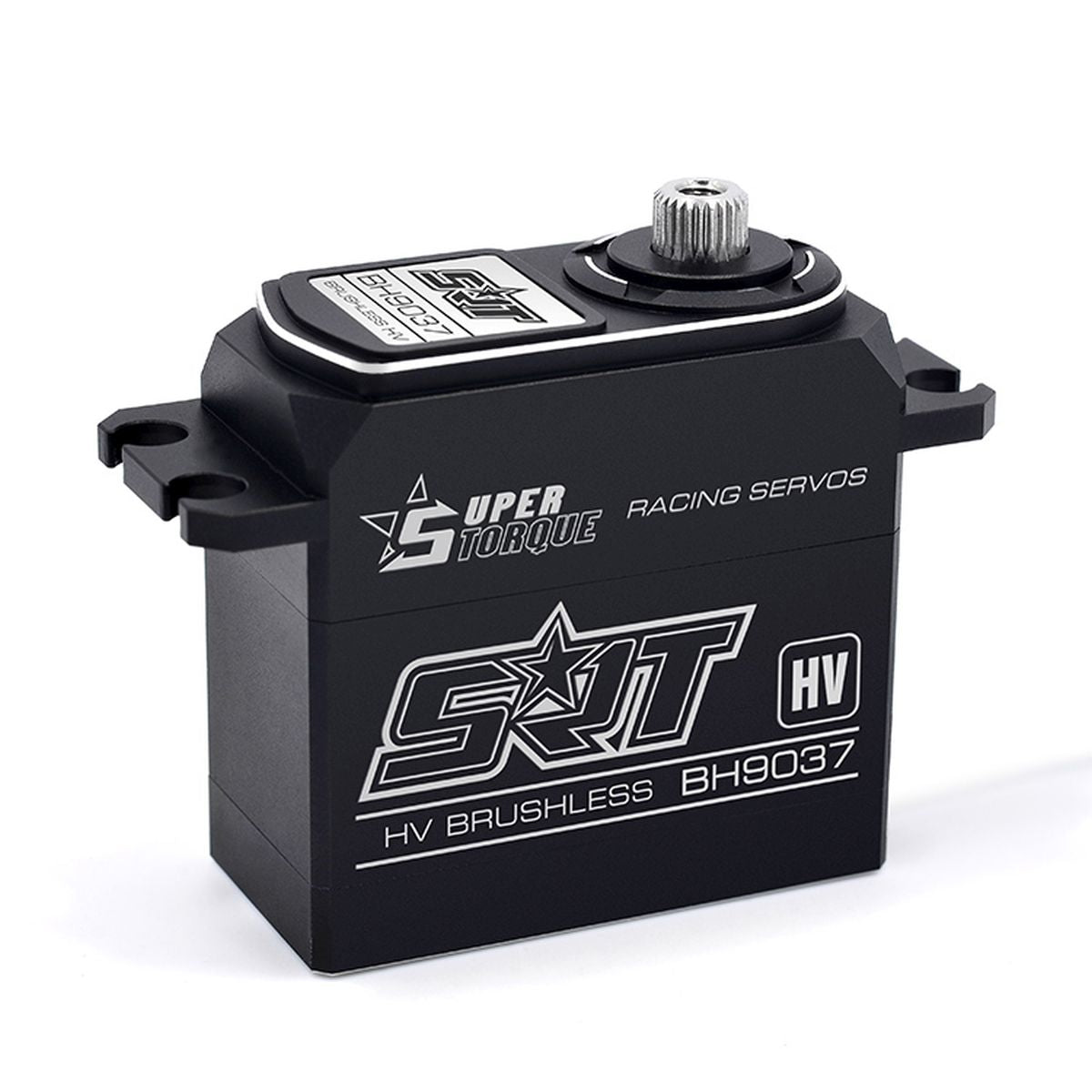

SRT BH9037 HV Brushless Digital Servo (.13s / 513.8oz @ 8.4V)

The latest generation of SRT servos provides you with the performance you need for any large scale vehicle application. This is a large scale sized servo for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

---

Features:

• Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
• Incredible efficiency and low power consumption

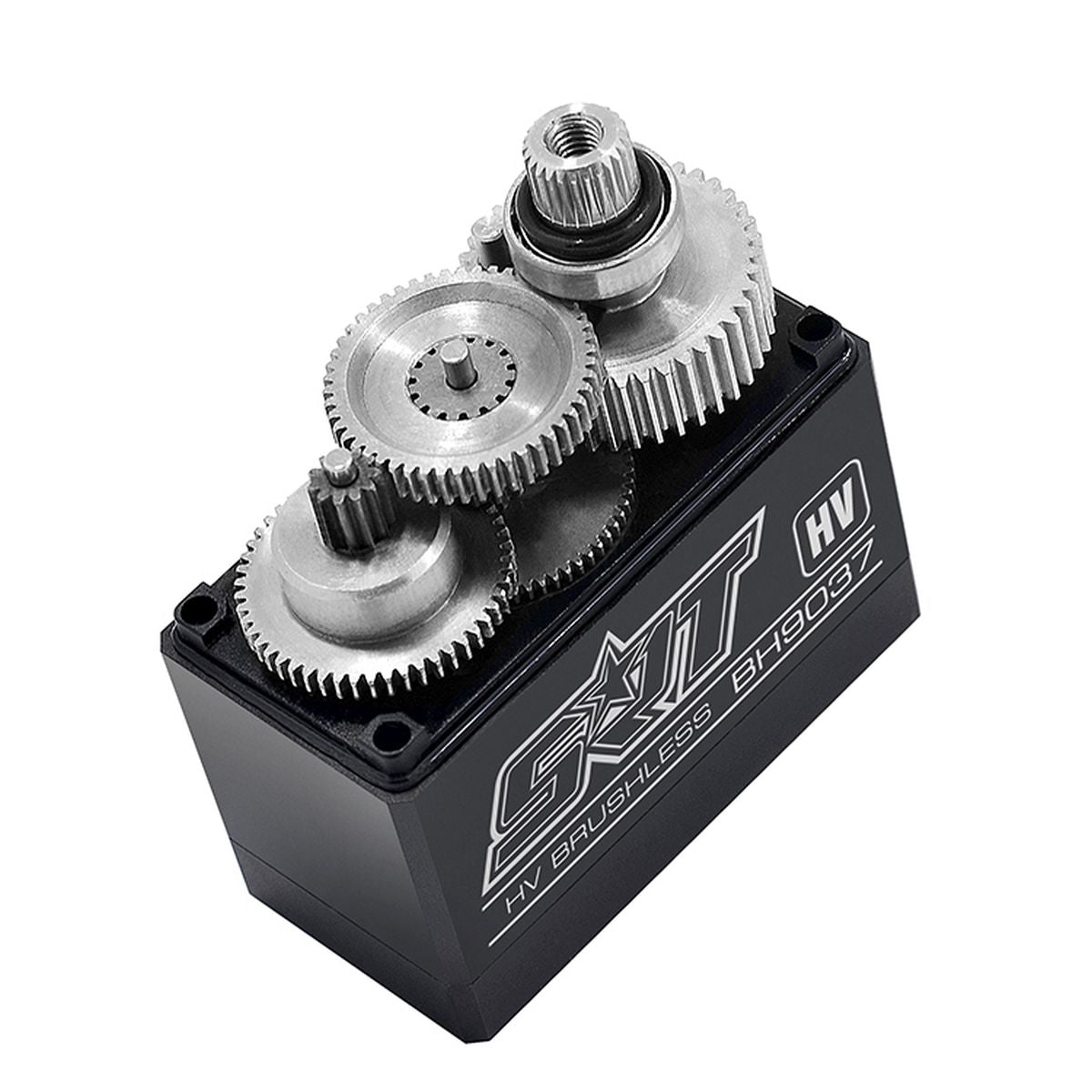

• Titanium & Steel gears for precision and durability
• 0.16 / 416.6 oz-in @6.0V and 0.13 / 513.8oz-in @ 8.4V
• Standard dimension makes it perfect for vehicles that can benefit from a high-quality servo
• CNC Machined aluminum case for exceptional cooling
• HD 4096 Resolution
• 2 usec Dead Band
• Superior Holding Torque
• 1-Year Limited Warranty

---

Specifications:

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Titanium & Steel
• Control system: pulse width control
• Working frequency: 1520 Is / 330hz
• Operating voltage: dc6.0-8.4v
• Operating temperature range: -10 to + 60 degree
• Operating speed (6.0v): 0.16 sec/60 degrees at no load
• Operating speed (7.4v): 0.14 sec/60 degrees at no load
• Operating speed (8.4v): 0.13 sec/60 degrees at no load
• Stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
• Stall torque (7.4v): 35.0kg.cm (486.0 oz/in)
• Stall torque (8.4v): 37.0kg.cm (513.8 oz/in)
• Potentiometer drive: direct drive
• Dimensions: 39.9x20.1x37.8 mm /1.57x0.79x1.49 in
• Weight: 80.0g (2.82 oz)
