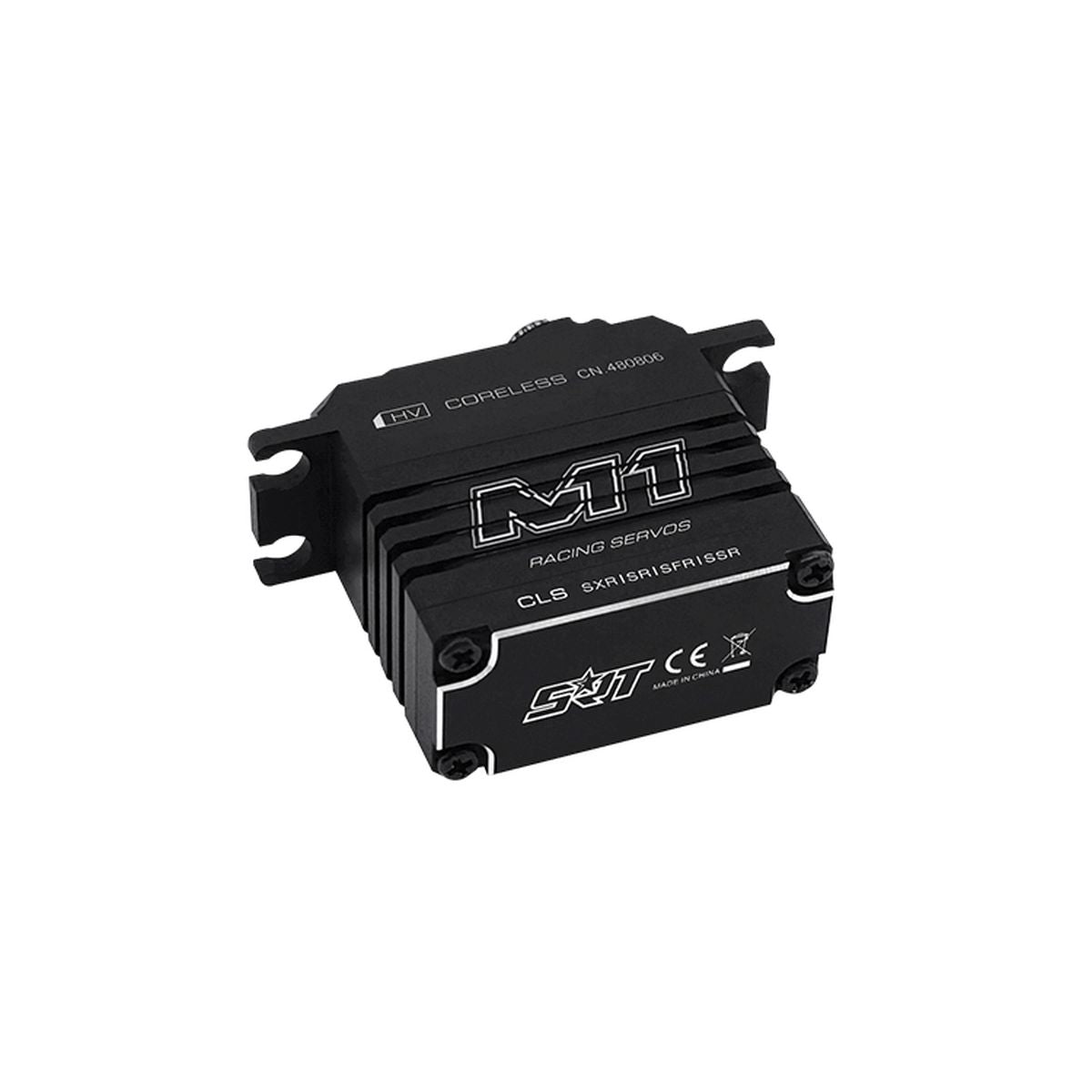

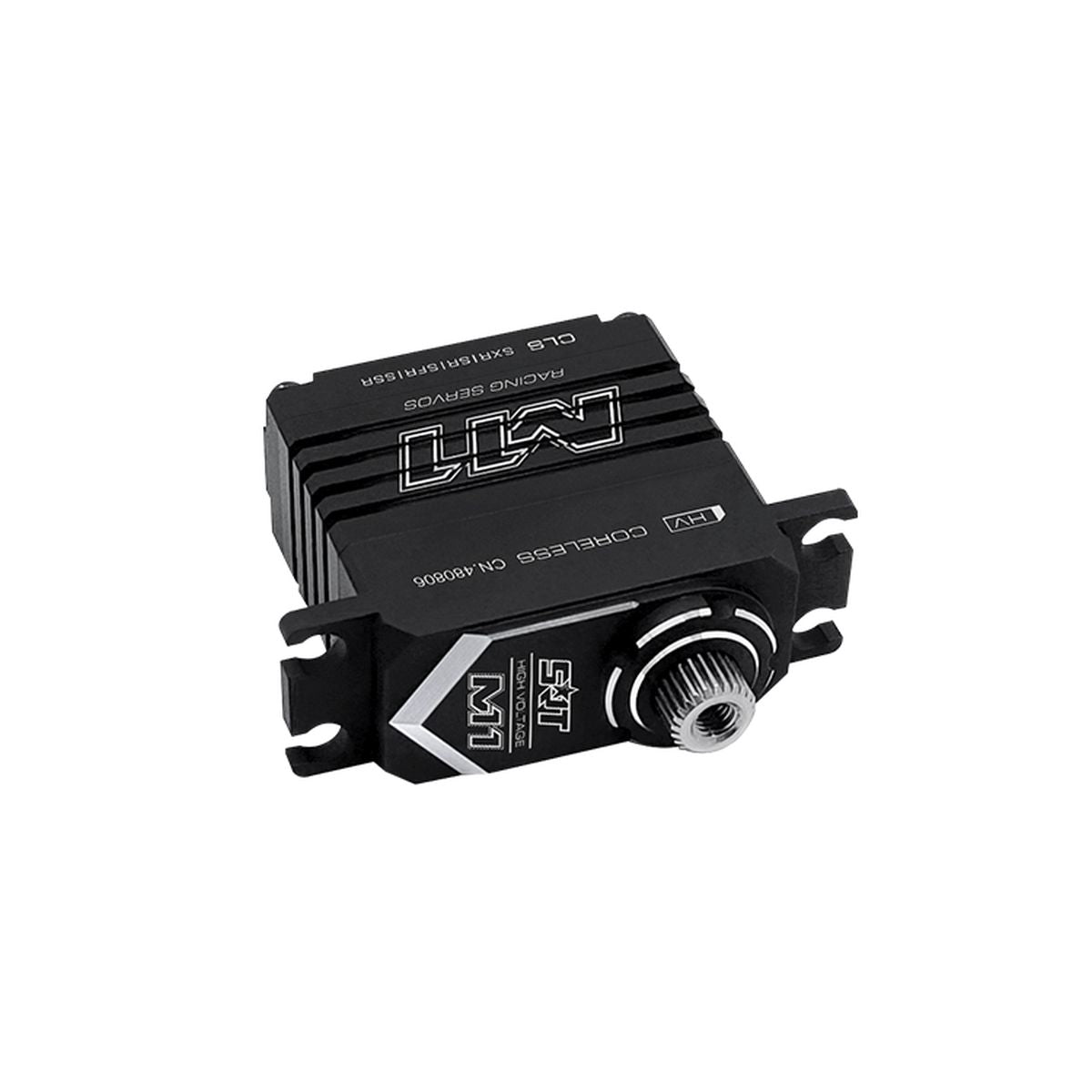

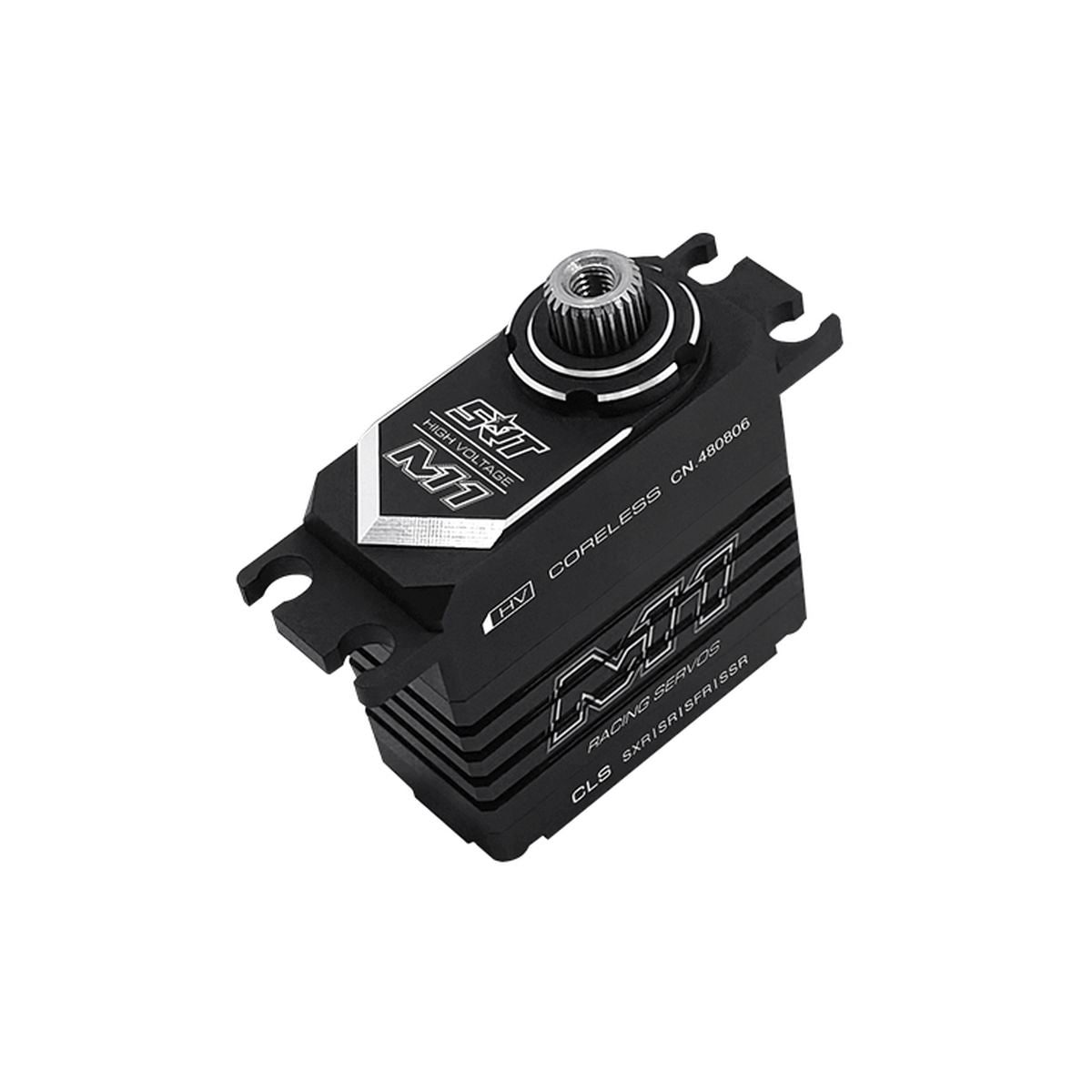

SRT M11 HV Coreless Digital Servo (.055s / 125.0oz @ 8.4V)

The latest generation of SRT servos provides you with the performance you need for any application. This is a mini sized servo for High-Voltage applications up to 8.4V and features an all metal case construction for the ultimate performance.

---

Features:

• Special 1/12 pancar servo
• Servo supports various ultra-high-speed modes like SSR, SFR, SXR, SR.
• Incredible efficiency and low power consumption
• 2 usec Dead Band
• 1-Year Limited Warrant

---

Specifications:

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Steel
• Control System: Pulse Width Control
• Working Frequency: 1520Is / 333hz
• Operating Voltage: dc6.0-8.4v
• Operating Temperature Range: -10 to + 60 degree
• Operating Speed (6.0v): 0.07 sec/60 degrees at no load
• Operating Speed (7.4v): 0.065 sec/60 degrees at no load
• Operating Speed (8.4v): 0.055 sec/60 degrees at no load
• Stall Torque (6.0v): 7.0kg.cm (97.2 oz/in)
• Stall Torque (7.4v): 8.0kg.cm (111.1 oz/in)
• Stall Torque (8.4v): 9.0kg.cm (125.0 oz/in)
• Potentiometer Drive: Direct Drive

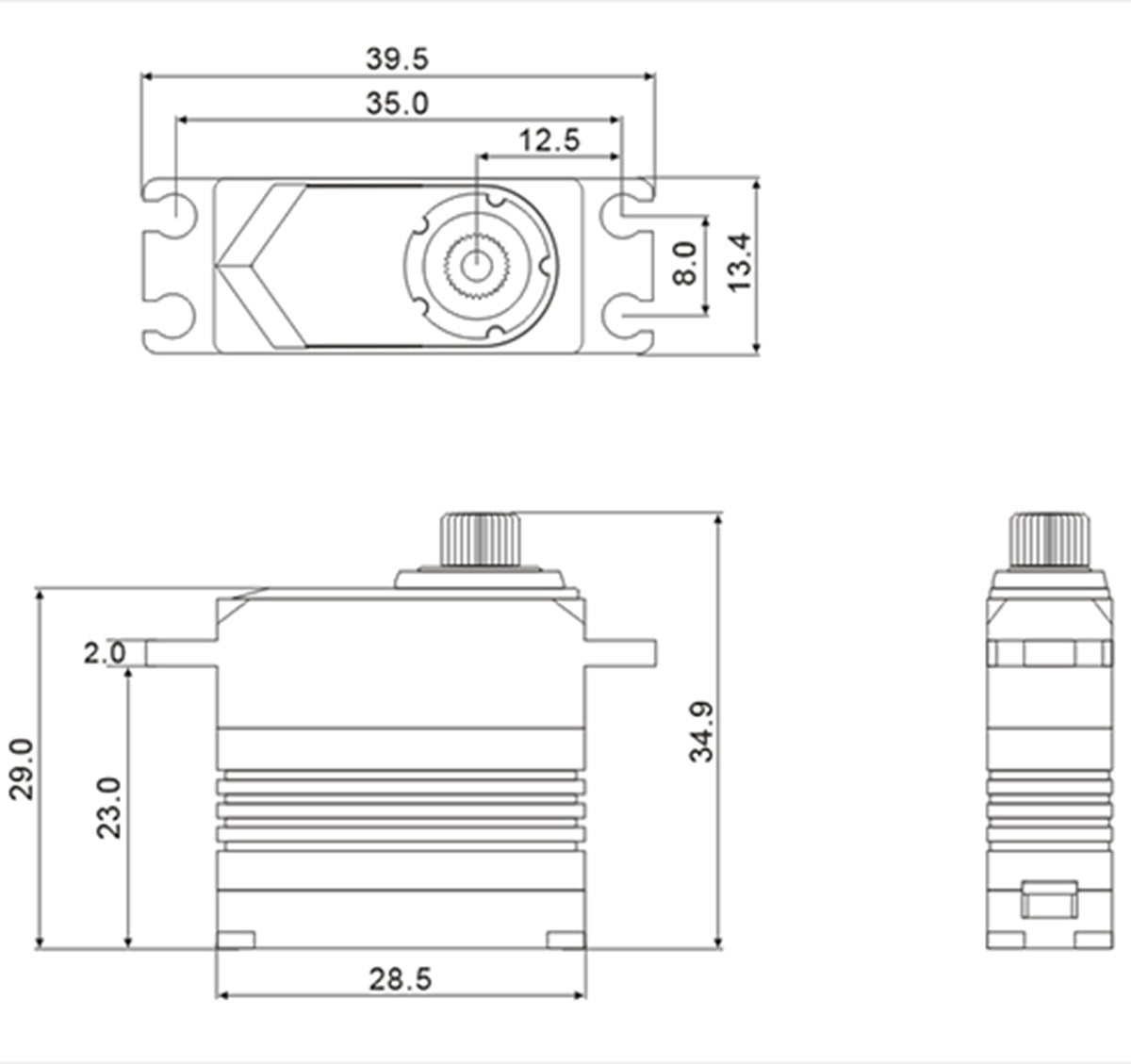

• Dimensions: 28.5x13.4x29.0 mm /1.12x0.53x1.14 in
• Weight: 28.0g (1.0 oz)
• Connector Wire Length: jr 170 mm
