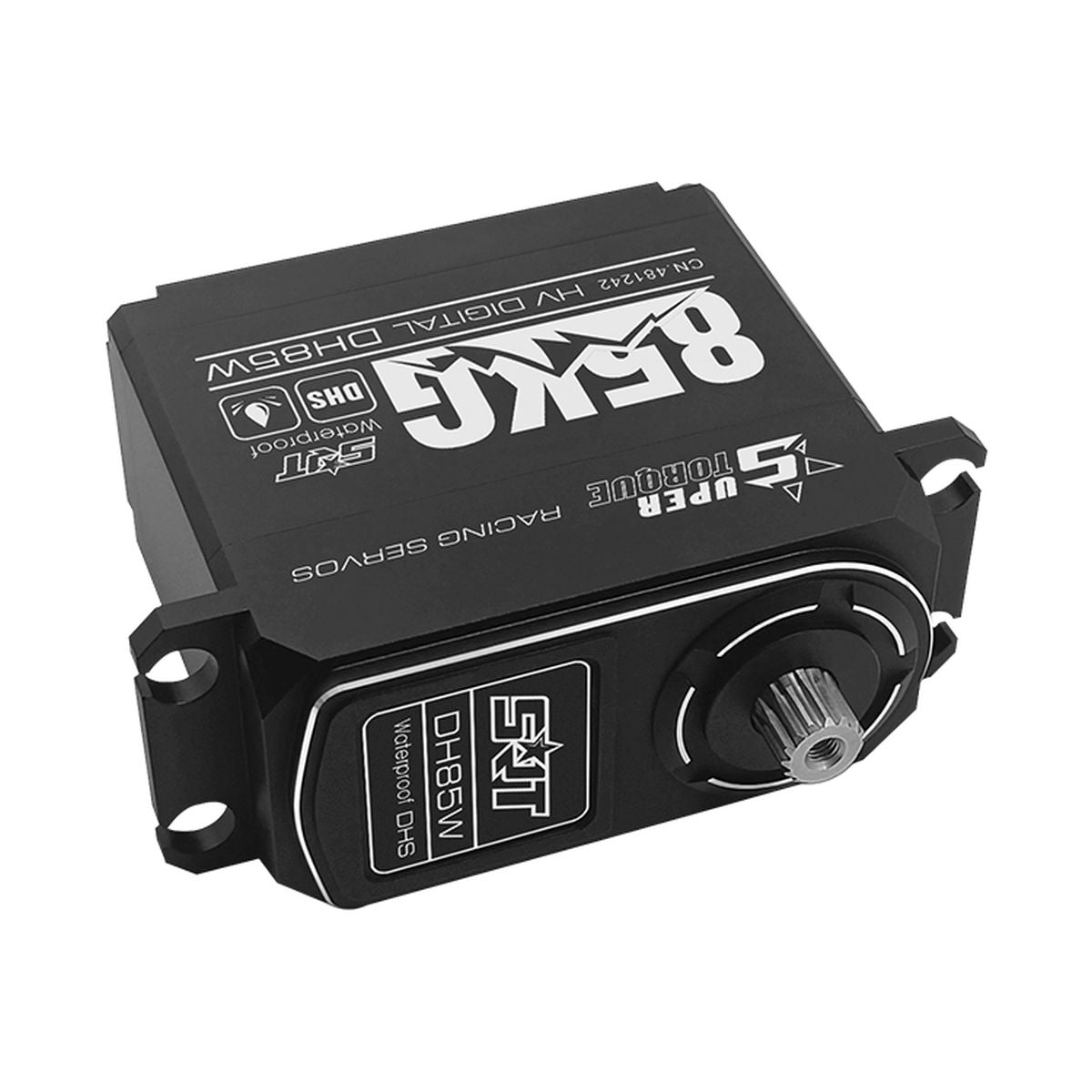

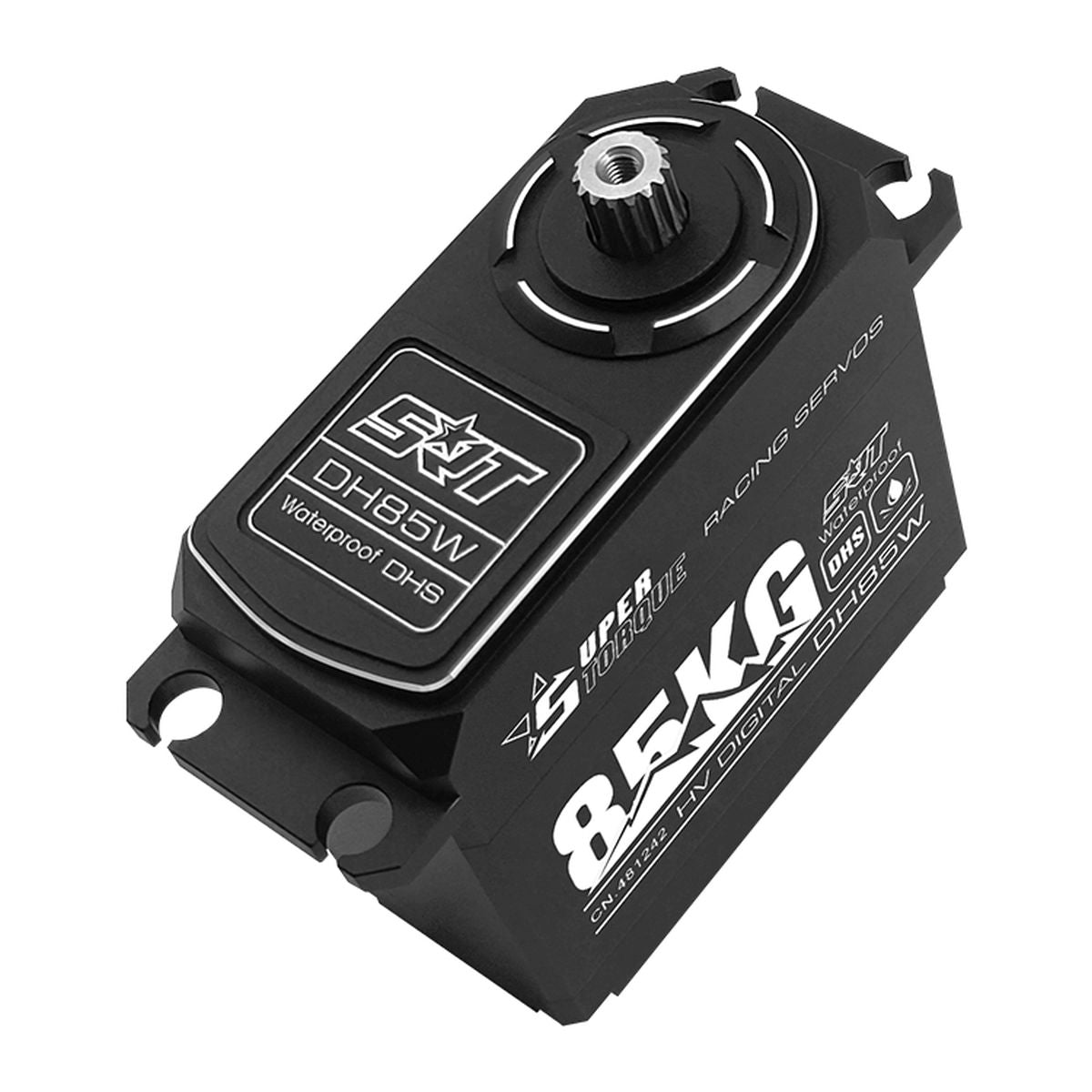

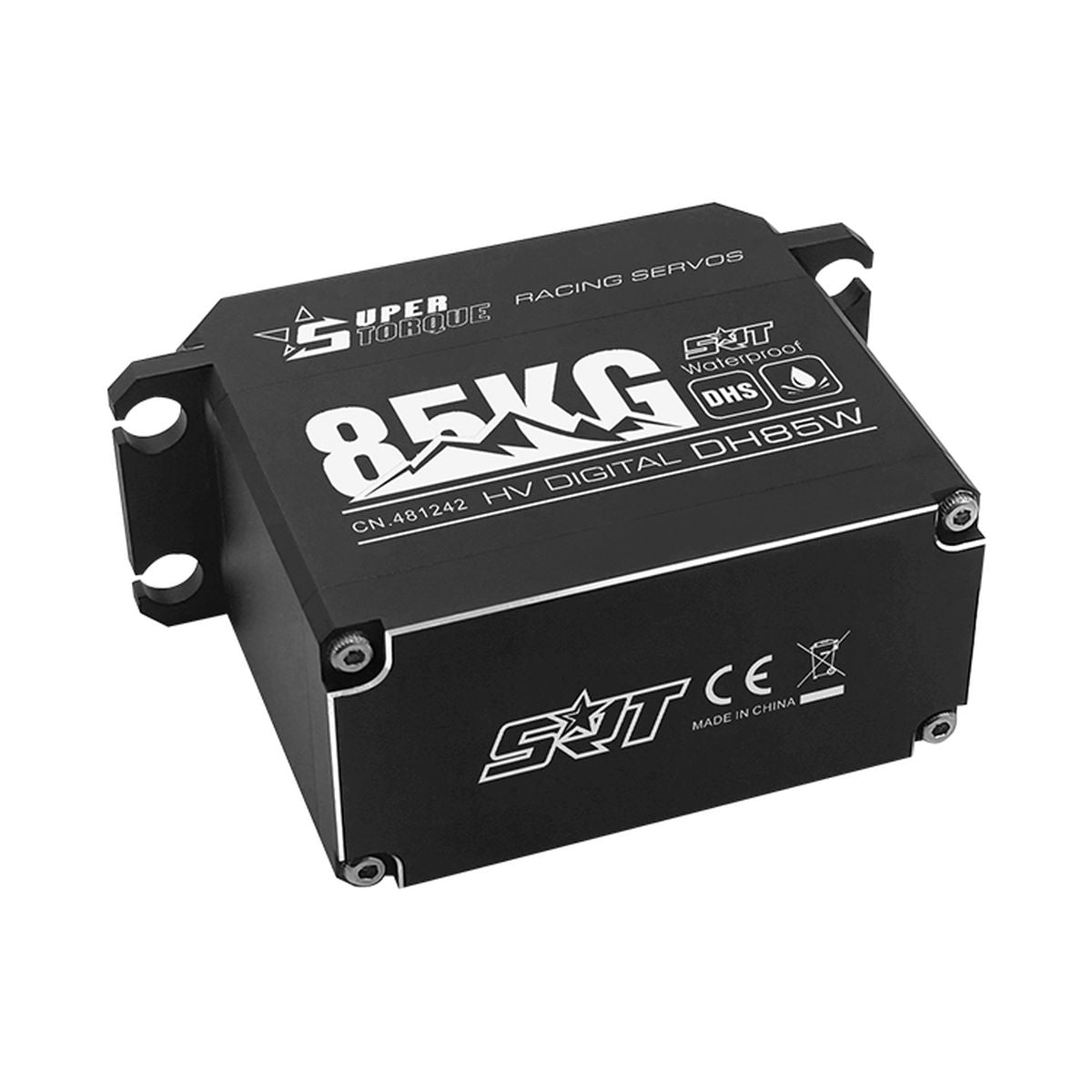

SRT DH85W HV DC Digital Servo (.15s / 1180.4oz @ 8.4V)

The latest generation of SRT servos provides you with the performance you need for any 1/5th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 8.4V and feature all metal case construction for the ultimate 1/8th scale performance.Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

---

Features:

• Ideal for 1/5 on road and 1/5 off road scale applications
• Superior Holding Torque
• Incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• 15T output shaft
• 2 usec Dead Band
• Waterproof
• 1-Year Limited Warranty

---

Specifications:

• Type: Digital
• Bearing: Dual
• Motor Type: DC

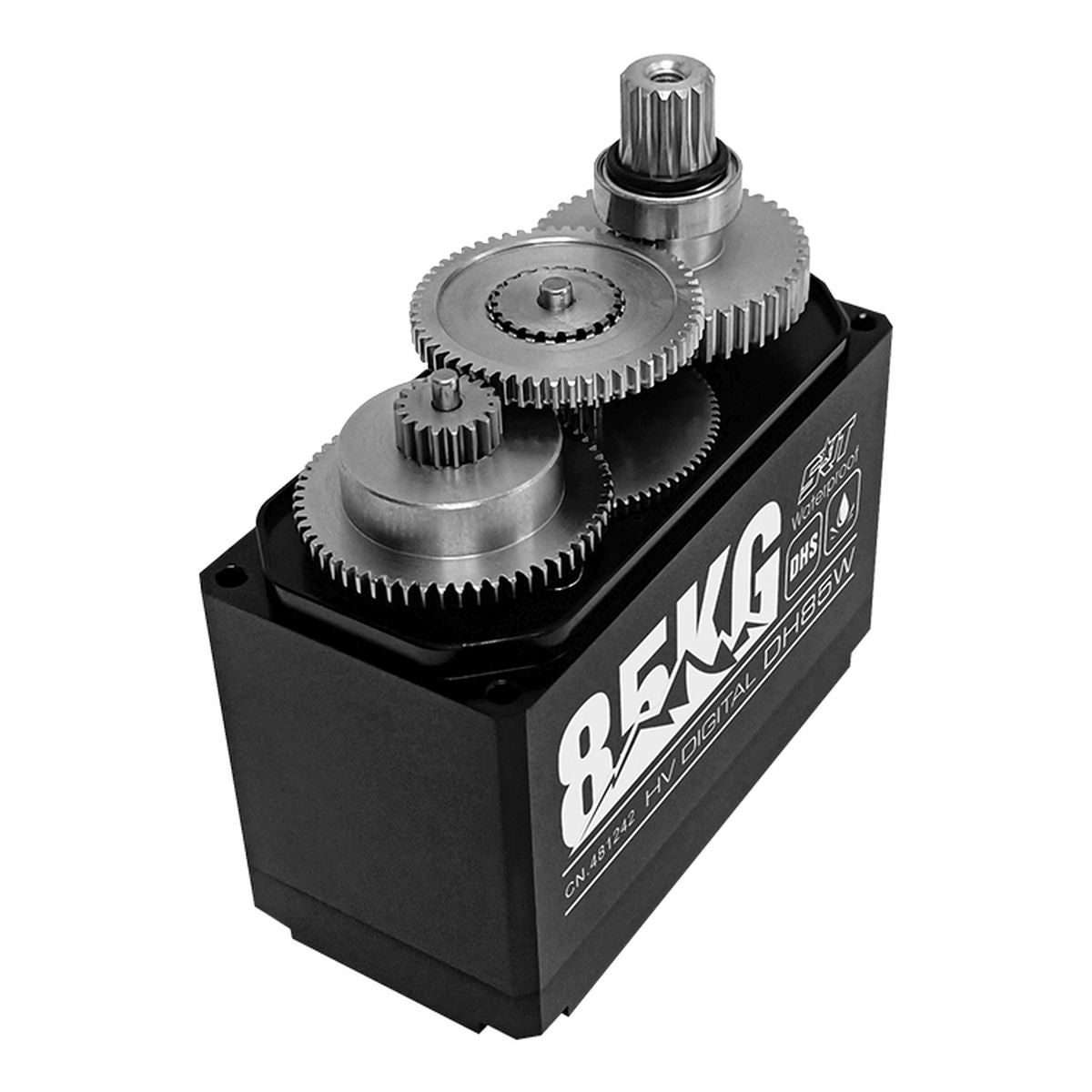

• Gear Type: Metal
• Gear Material: Steel
• Control System: Pulse Width Control
• Working Frequency: 1520us / 330hz
• Operating Voltage: dc7.4-8.4v
• Operating Temperature Range: -10 to + 60 degree
• Operating Speed (7.4v): 0.17 sec/60 degrees at no load
• Operating Speed (8.4v): 0.15 sec/60 degrees at no load
• Stall Torque (7.4v): 78.0kg.cm (1083.2 oz/in)
• Stall Torque (8.4v): 85.0kg.cm (1180.4 oz/in)
• Potentiometer Drive: Direct Drive
• Dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
• Weight: 200.0g (7.05 oz)
• Connector Wire Length: jr 350 mm
