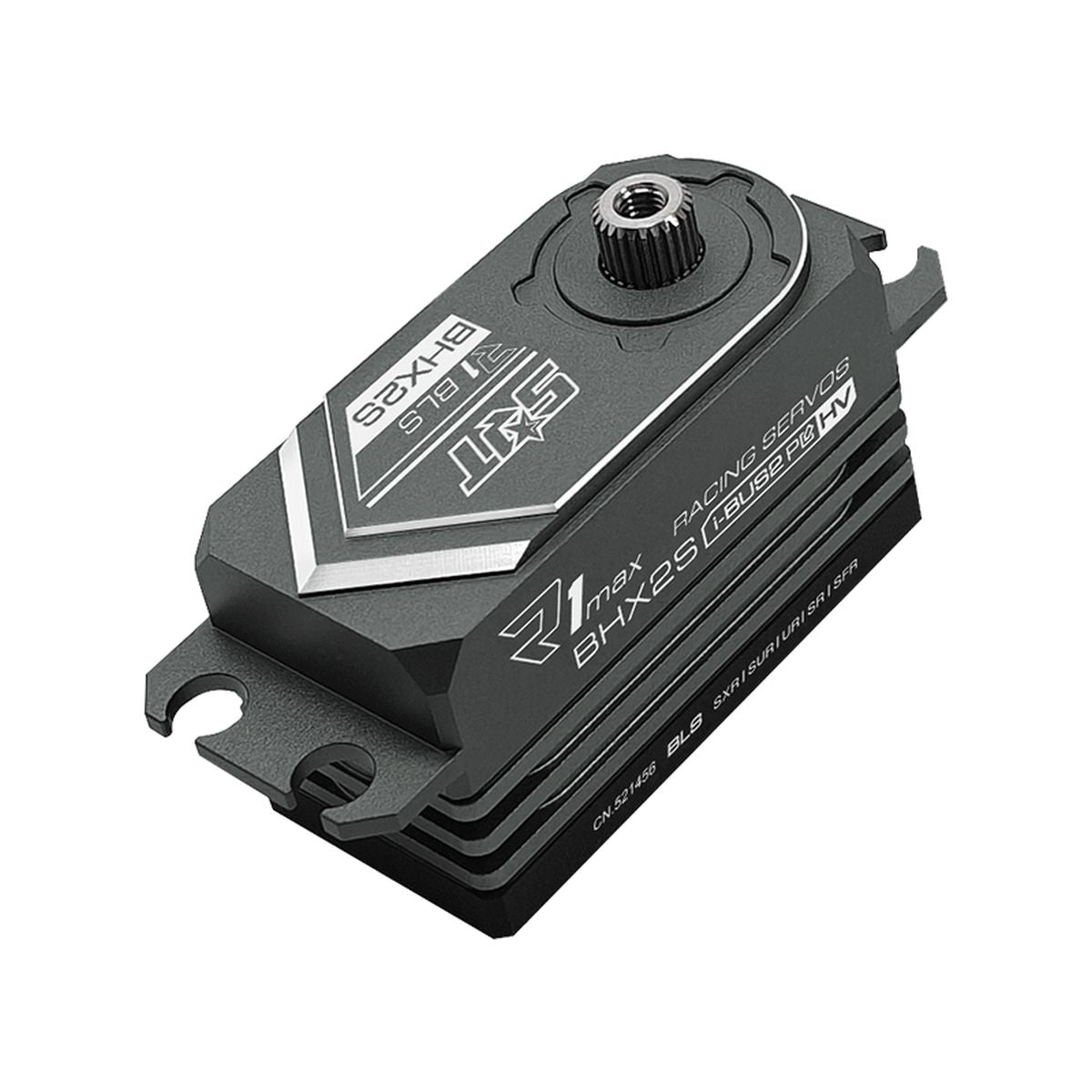

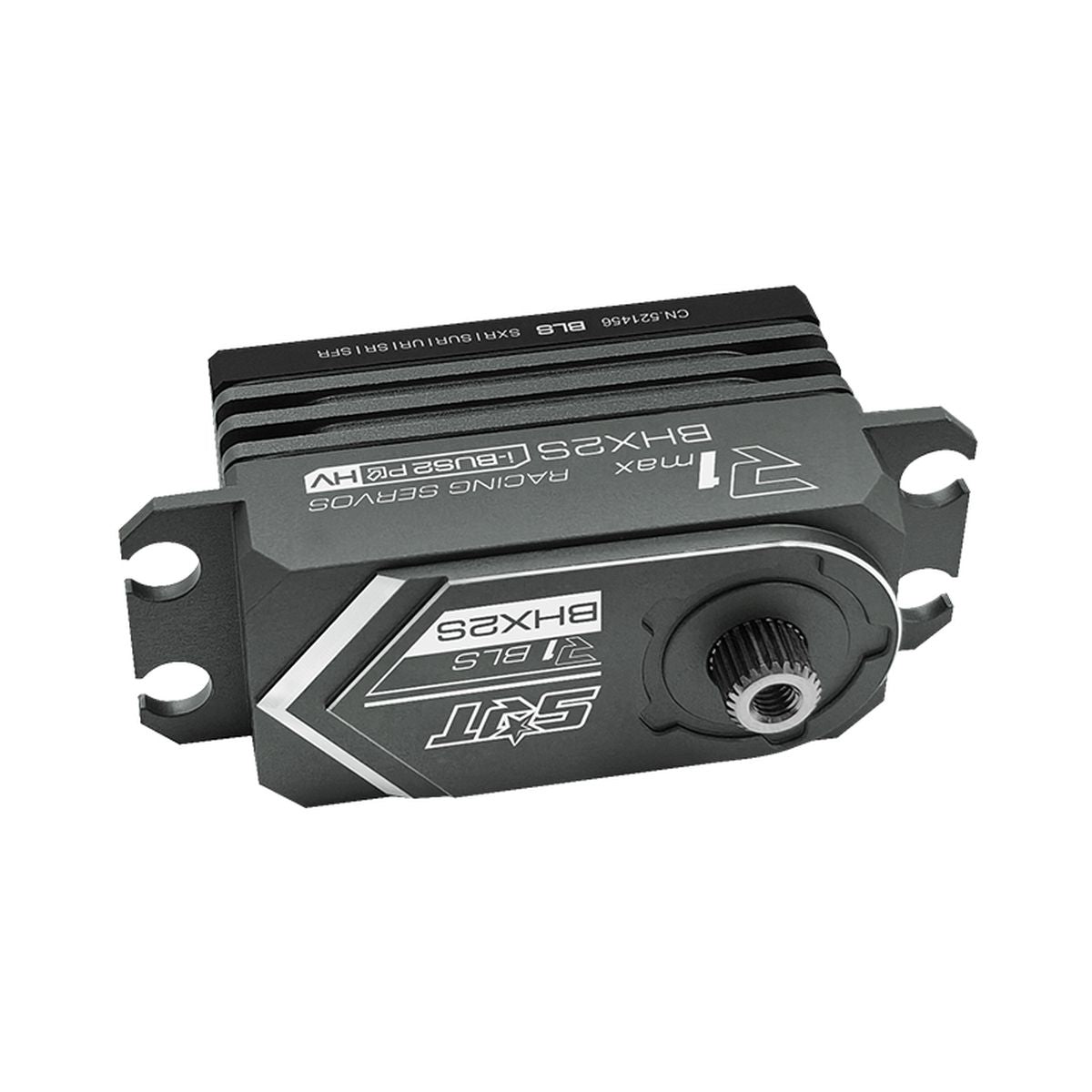

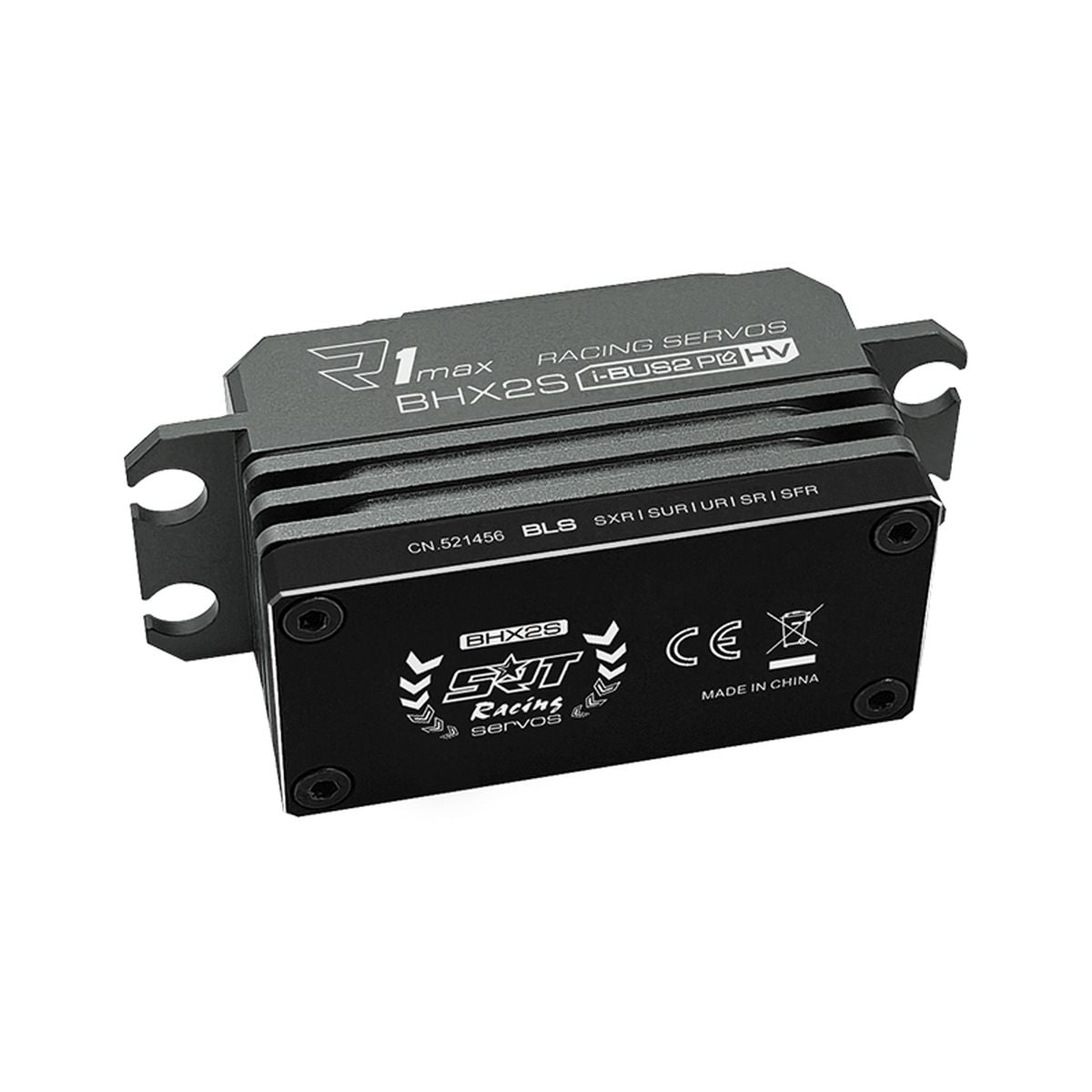

SRT BHX2S Low Profile HV Brushless Servo, 180mm Lead (.065s / 23kg @ 8.4V)

The SRT Low Servo provides 180 Limit angle range of motion and position control for your project. Great for animatronics and ideal scale applications.

---

Features:

• Ideal for 1/10 on road applications
• Superior Holding Torque
• Incredible efficiency and low power consumption
• CNC Machined aluminum case for exceptional cooling
• Programmable High torque Brushless servo
• Supporting SXR, SUR, SR, SFR multiple ultra high-speed modes
• 25T output shaft
• 2 usec Dead Band
• 1-Year Limited Warranty

---

Specifications:

• Type: Digital
• Bearing: Dual
• Motor Type: 4-Pole Brushless
• Gear Type: Metal
• Gear Material: TC4 Pure-Titanium & Steel
• Control System: Pulse Width Control
• Working Frequency: 1520us / 330hz
• Operating Voltage: dc 6.0-8.4v
• Operating Temperature Range: 14 to 140 Degree F( -10 to +60 Degree C)
• Operating Speed (6.0v): 0.080 sec/60 degrees at no load, (7.4v): 0.073 sec/60 degrees at no load, (8.4v): 0.065 sec/60 degrees at no load
• Stall Torque (6.0v): 208.3 oz/in (15.0 kg/cm), (7.4v): 250.0 oz/in (18.0 kg/cm ), (8.4v): 319.4 oz/in (23.0 kg/cm)
• Potentiometer Drive: Direct Drive

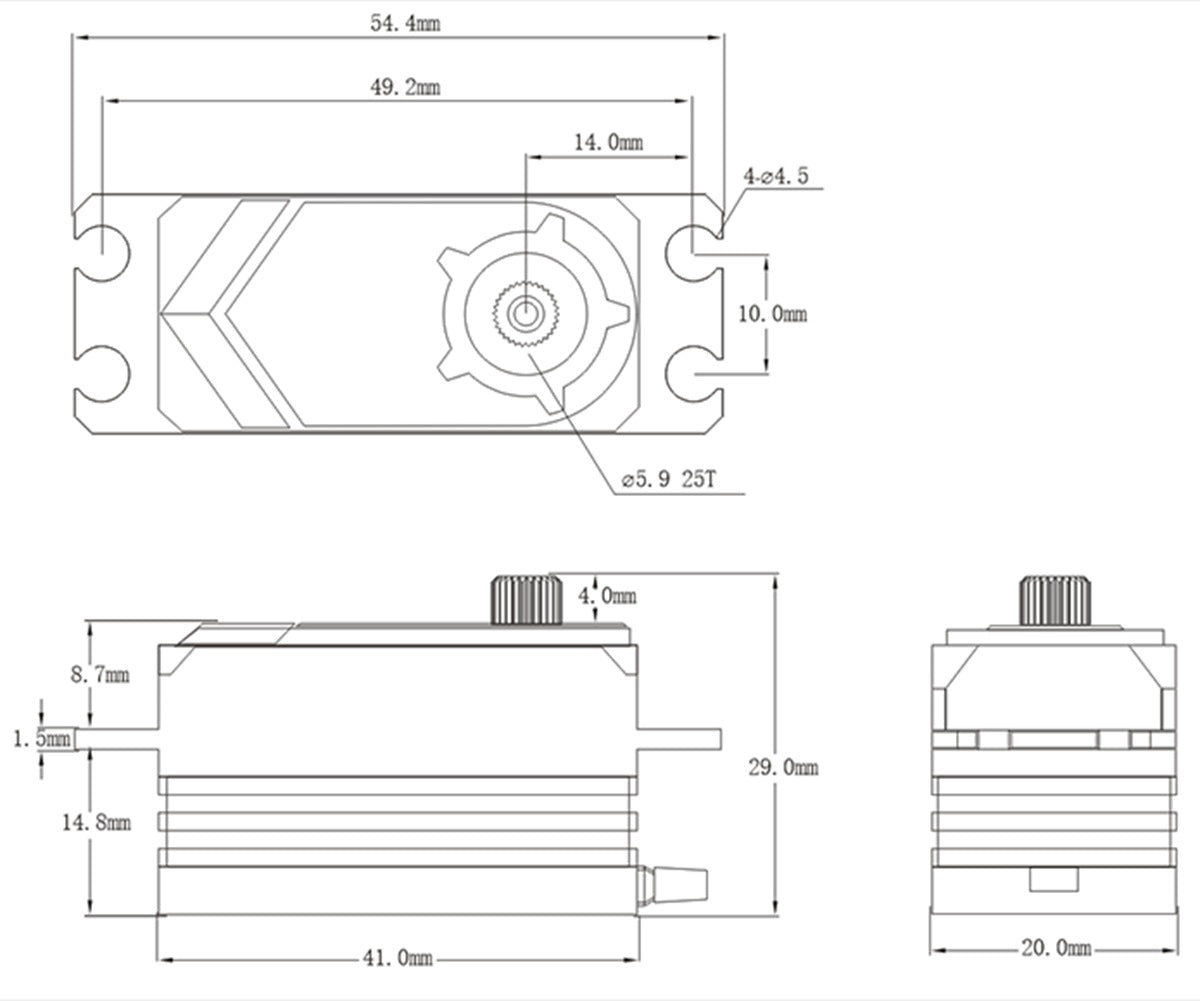

• Dimensions: 41.0 x 20.0 x 24.8 mm / 1.61 x 0.79 x 0.92 in
• Weight: 52.0 g (1.83 oz)
• Connector Wire Length: jr 180mm (Specifically designed for nitro car steering)
