Note: If upgrading from a Axial AR44 one piece housing (stock on Deadbolt,
Honcho, Blazer, Raw Builders Kit, Wraith 1.9, UMG10) you will need front
or rear link mounts as the stock Axial housings mounts are molded in.
Options available from
SSD,
Vanquish Products,
Beef Tubes, and
Axial.

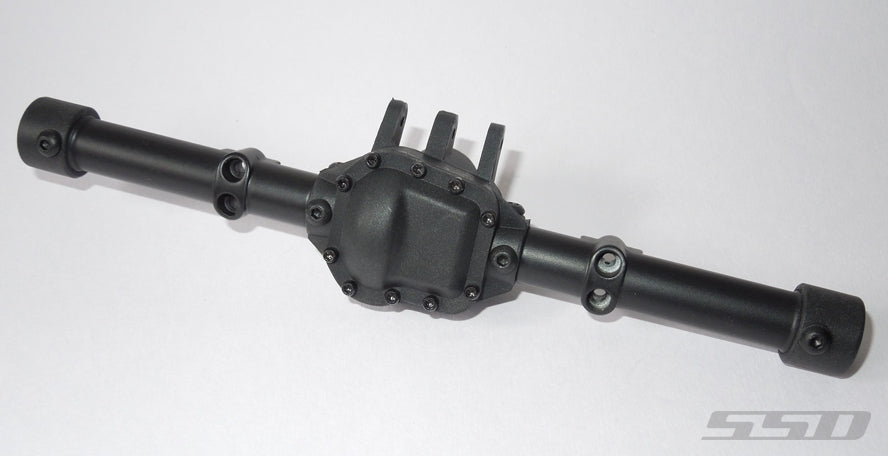

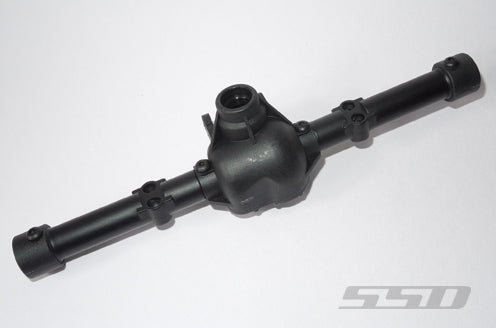

Features:Scale design and assembly
Injection molded nylon main axle housing
Removable heavy metal axle tubes
Removable diff cover
Metal bearing holders
Same size as stock SCX10 II AR44 axle
Same link mount locations as stock SCX10 II axle

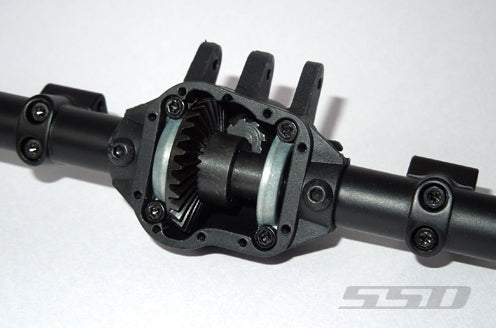

Compatible with stock SCX10 II axle gears, bearings and shafts
Fit stock SCX10 II AR44 axle lower link mounts

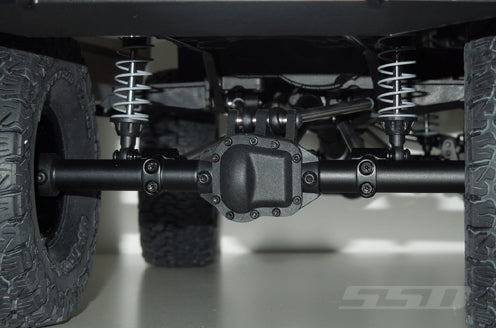

Direct fit onto SCX10 II chassis
Specifications:Weight: 100g (with no internals)

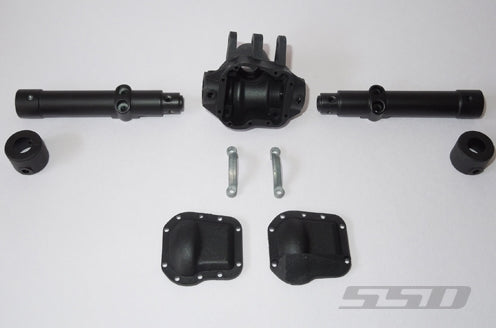

Includes:Main axle case
2 X Axle tubes
2 X Bearing holders
2 X Diff covers

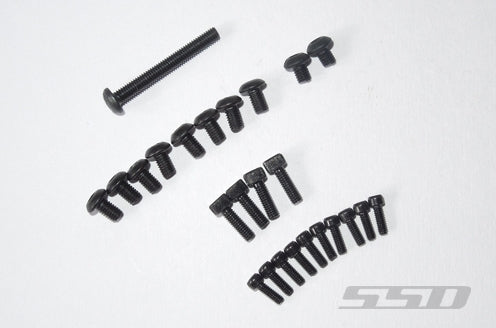

Hardware:10 * M2 x 5mm cap head
4 * M2.5 x 8mm cap head
8 * M3 x 5mm button head
2 * M3 x 4mm button head
1 * M3 x 25mm button head
Note:Matching front axle is available (
SSD00207)
Aluminum link mounts are available (
SSD00159)
Installation instructions can be downloaded
HERE.
