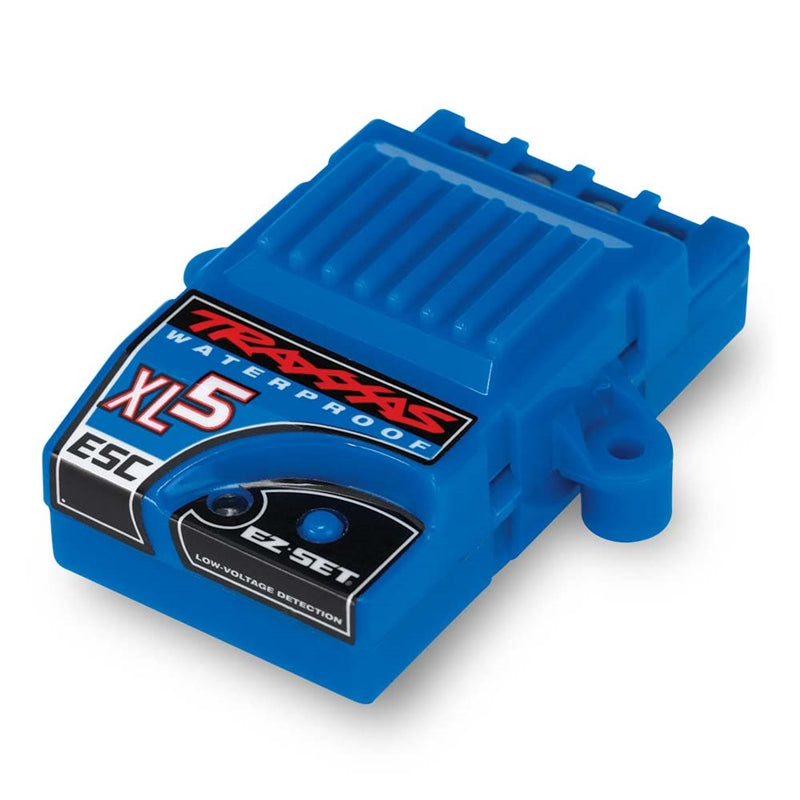

Traxxas Waterproof XL-5 ESC Low Voltage Detection

Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-8 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patent pending Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support.

Features

Equipped with the Traxxas high-current connectors for restriction-free current flow Innovative watersealed design 15-turn motor limit for 540 size motors 12-turn motor limit for 550 size motors Fully-proportional forward, reverse, and braking control Programmable with three drive profiles (see below) EZ-Set® push-button setup Multi-color LED Thermal shutdown protection Efficient, low-loss MOSFET design High-capacity heat sink Smooth, high-frequency operation Easy installation in Traxxas models Backed by the Traxxas Lifetime Electronics warrantye connector on the ESC to the fan

Tech Specs

XL-5 (WATERSEALED) ESC SPECIFICATIONS: On Resistance Forward: 0.007 Ohms On Resistance Reverse: 0.014 Ohms Peak Current - Forward: 100A Peak Current - Reverse: 60A Braking Current: 60A Continuous Current: 14A BEC Voltage: 6.0 VDC BEC Current: 1A Transistor Type: MOSFET PWM Frequency: 1600 Hz Profile selection: Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode: 50% FWD, 100% brakes, 50% REV Single-button setup: Yes, Traxxas EZ-Set®
