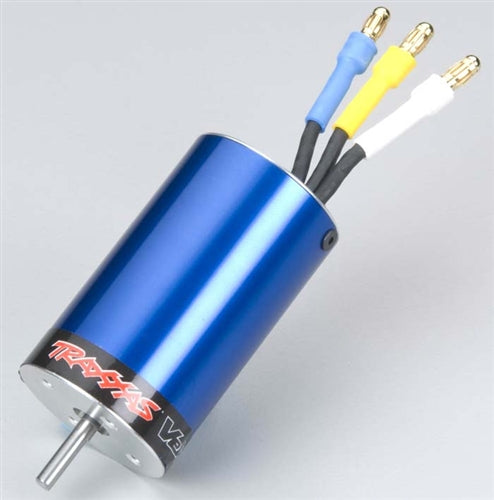

Traxxas Velineon 380 Brushless Motor

Velineon 380 Brushless Motor
Velineon 380 Brushless Motor (#3371) (with wires) (2013)
The Velineon® 380 Brushless Motor uses ultra high-temperature Neodymium magnets, high-speed ball bearings, and a precision balanced rotor for power and long-life. Since there are no brushes or commutator to wear out, the need for maintenance is virtually eliminated. The Velineon 380 delivers consistent, high-power output, run after run.

Velineon 380 Features
Ultra high-temperature sintered Neodymium magnets provide
massive torque and linear power
Optimized for power and efficiency in 1/16th scale vehicles
Consistent, high-power output, run after run
Low-maintenance, unique Traxxas design
Efficient, high-speed ball bearings
Precision-balanced rotor
8-Turn, 4000Kv
Rebuildable
Hex hardware
Brilliant blue-anodized finish
Silicone steel laminations
Delivers more power than comparable brushed motors
Replacement part for these models:
1/16 E-Revo® VXL
Accessory part for these models:
1/16 E-Revo®
1/16 Slash 4WD
1/16 Summit™

Features

Ultra high-temp sintered neodymium Traxxas 3.5mm bullet connectors 16-gauge Maxx Cable Optimized for 1/16 scale vehicles Efficient high speed ball bearings Precision-balanced rotor

Tech Specs

Can Length: 48.15mm (1.9") Can Diameter: 28mm (1.1") Shaft Length: 12.7mm (0.50") Shaft Diameter: 3.15mm (0.12") kV: 4000 (8-turn) Current: 25A constant/ 50A burst Max RPM: 50,000 Weight: 140g (4.94oz)
